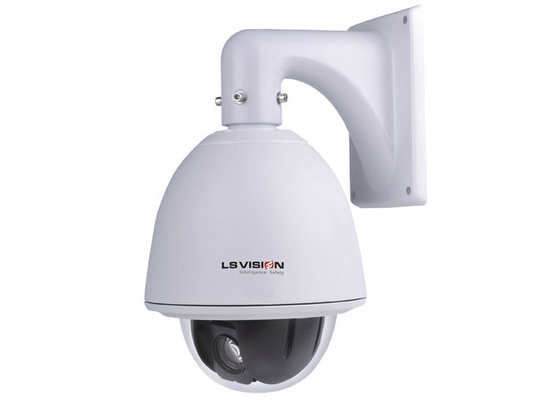

LS-VISPT420 High Resolution 1080p HD SDI CCTV Camera, 2 Megapixel High Speed PTZ dome Camera

Large Image : LS-VISPT420 High Resolution 1080p HD SDI CCTV Camera, 2 Megapixel High Speed PTZ dome Camera Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	DEBFFENG
Certification:	ISO
Model Number:	LS-VISPT420

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C,T/T,Paypal

Contact Now

Detailed Product Description

High Light:

dome cctv camera

outdoor cctv camera

LS-VISPT420 High Resolution 1080p HD SDI CCTV Camera, 2 Megapixel High Speed PTZ dome Camera

Key Features:

HD-SDI output 1080P30
1/2.8”SONY Exmor® CMOS sensor
1080P/30fps HD Video
20x optical zoom,12x digital zoom
WDR
Low illumination, color 0.5LUX,night 0.095LUX

LS-VISPT420 is 2 megapixels HD-SDI high speed PTZ dome camera. LS-VISPT420 is full HD 1080p resolution and is easily integrated into existing video surveillance system. True Day/Night (ICR) functionality and SSNRIII (3D+2D) technology add to the cameras’ application flexibility and performance features.

We use Sony Megapixels Camera module with WDR function to present a super clear image quality.

We offer OEM service. Your designation is acceptable.

The benefit of the HD-SDI cameras:

The HD-SDI products provide over five times the image quality of conventional analog technology and offer a more cost-effective and easier alternative to network-based systems, using standard coax cable.

Application:

HD-SDI is ideal for applications where evidence grade images are required, such as airports, ports, banks, casinos and retail environments, but where is it not viable or cost effective, to transmit the images over a network.

Details show

Specifications

Model	LS-VISPT420
Features
Image sensor	1/2.8” SONY 200W Exmor﹫CMOS sensor
Zoom	20x optical ,12x digital zoom,F=4.7mm-94mm,f1.6-3.5, angle 55.4°-2.9°
Resolution	1080P/30FPS,1080P/25FPS
Min. illumination	Day 0.5LUX/30sec, Night 0.095LUX/1/3sec
S/N ratio	> 50dB
Focus	AUTO/Manual
White balance	AUTO/Manual
WDR	AUTO/Manual
Image enhancement	White balance,Mirror,color enhancement,DNR,AGC etc
Privacy masking	Max. 24,each channel 8
Shutter speed	1/1 -1/10000s
AGC	AUTO/Manual(- 3dB-26 dB, 16 STEPS) Max.(6 dB to 28 dB, 12 STEPS)
Camera characteristics
Pan-tilt range	Pan 360°,0.4-320 sec,tilt 90°,0.4- 150 sec
Preset position	128
Sequence tour	Auto, zone limiter and preset(on/off)
Preset tour	4 preset tour
Pattern track	4 pattern tour 100sec to each
Idle protection	0-240(s)
Boot-up action	Preset , tour
Audio I/O	1 RCA input /1 RCA output (optional)
Alarm I/O	1ch input /1ch output
Working Temp	-30℃-65℃,95% Humidity
Size	280 mm X 380 mm
Weather protection	IP67
Power	12V DC/24V AC. Max 55W with heater＆blower
