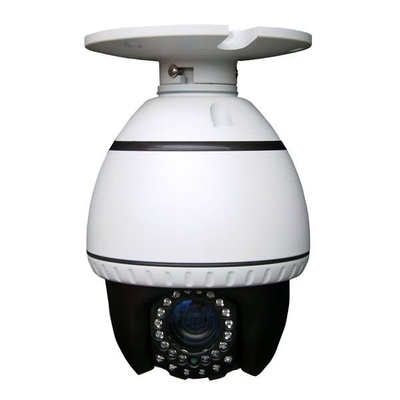

Intelligent Megapixel PTZ Dome IP CCTV Camera IR 150 m High Speed , 18x Optical Zoom
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,hd cctv cameras |
||
|---|---|---|---|
Intelligent Megapixel PTZ Dome IP CCTV Camera IR 150 m High Speed , 18x Optical Zoom
Specifications:
infrared ptz dome camera
1.3 / 2.0 mega pixels optional
18X optical zoom
150M Long IR distance
2 audio 2 way alarm
Intelligent megapixels 100 meter IR distance CCTV Camera IP high speed infrared ptz dome camera
1. Standard H.264 Video Compression
2. 1.3/2.0 megapixel HD 1080p IP Camera
18x Optical Zoom( camera module Optional)
3. 150m IR Distance
2 Groups IR LED array
4. Vandual-Proof Housing use for Outdoor IP67
RS485, PELCO-P, PELCO-D
5. 128 preset positions, 8 cruise group
6. Support RTSP, VLC(PS/TS) Streaming protocol
7. 360 degree Pan & 90 degree Tilt
1-180°/s(1-64 grade available) Pan & TiltSpeed
8. Multi-Level User access with password protection
9. Support WEB-browser, Remote configure/update, replay, record
10. Alarm I/O Support motion detection, date, time, event trigger
|
Image Sensor
|
1/2.8" Type Exmor CMOS
|
|
Effective Pixels
|
1.3/2.0 megapixels optional
|
|
Min. Illuminationt
|
0.5Lux at F1.6
|
|
IR Led
|
changeable IR lights
|
|
IR Distance
|
150m
|
|
Day/Night
|
ICR with removeable IR filter
|
|
Exposure Control
|
Auto
|
|
Electronic Shutter
|
1/1sec to 1/10000sec
|
|
Gain Control
|
Auto(High/Middle/Low)
|
|
White Balance
|
Auto/Close
|
|
S/N Ratio
|
50DB
|
|
focal length
|
f=4.7-90mm,F1.6-F3.5
|
|
Zoom
|
22 optical x 12 digital zoom
|
|
HOV
|
Horizontal: 55.4°
|
|
Video Compression
|
H.264
|
|
Video Compressed Code Rate
|
1-16Mbps,CBR/VBR(adjustable)
|
|
Max Image Resolution
|
1920*1080
|
|
Frame Rate
|
30fps(1920*1080),(1019*768),(800*600),(352*288)
|
|
Dual-stream
|
30fps(1920*1080),(352*288),(1019*768),(704*576),(800*600),(704*576)
|
|
Audio Compression
|
G.726G.722G.711
|
|
Audio Compression Code Rate
|
64Kbps
|
|
Network Interface
|
RJ45 X 1,10/100M self-adaption Ethernet port
|
|
Network Protocols
|
TCP/IP,HTTP,DHCP,DNS,DDNS,FTP,NTP,PPPOE,RTSP,UDP,UPNP,SMTP,RTP
|
|
WIFI
|
802.11b,802.11g,(transmission master code stream)supportencryption: wep64,wep128,wpa,wpa2 Wifi power:17dbm(54M) Wifidistance:≤70M (Optional)
|
|
3G
|
TD/WCDMA (transmission slave code stream )optional
|
|
Audio Talkback Input
|
1way,3.5mm audio interface(linear, MIC can be switched via dialcode)
|
|
Audio Output
|
1way, 3.5mm audio interface(linear)
|
|
TF Card Store
|
TF card support recording store and snapshot,SD2.0 standard,Maxcapacity 32G,save as slave code stream (Optional)
|
|
Pan Rotation
|
360° continuous pan rotation, Speed: 0.01-350°/S
|
|
Tilt Rotation
|
90° tilt angle, Speed: 0.01-120°/S
|
|
Preset Position
|
256 positions
|
|
Cruise Route
|
8 Lines
|
|
Communication terminal
|
RS485 / RE232
|
|
Communication Protocal
|
PELCO_P, PELCO_D and multi protocal (customize)
|
|
Baud rate
|
1900/4800/9600/19200bps
|
|
Intelligence Alarm
|
motion detection, video mask
|
|
Alarm Port
|
1way input 1way output
|
|
Communication Port
|
RS485 interface,( optional RS232 interface)
|
|
Reset
|
Support one key reset
|
|
Working Condition
|
TEP: -35°C~+55°C, Humidity:<90%, No condensation
|
|
Power Supply
|
DC12V±10%(50W)
|
|
Size(mm)
|
Φ210X303
|
|
Weight
|
3.20KG
|
