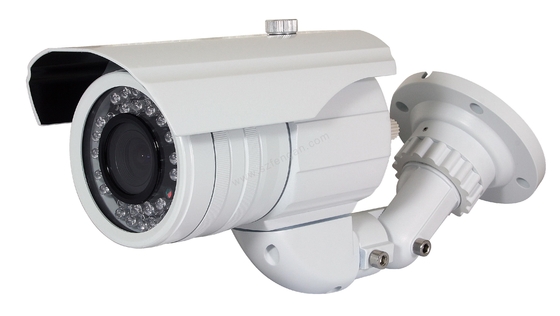

Onvif H.264 Day Night IP CCTV Camera Progressive Scan Support Two Way Audio , 0 Lux IR
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,hd cctv cameras |
||
|---|---|---|---|
Onvif H.264 Day Night IP CCTV Camera Progressive Scan Support Two Way Audio , 0 Lux IR
Specifications:
Onvif Compliant; H.264; Two Way Audio;
Vandal-proof;
Motion Detection;
IR Distance: 50m;
4-9mm Vari-focal Lens
Key Features:
• H.264 Main Profile @level 3
• 2.0 Mega Pixels, 1600*1200 Pixels
• Dual H.264 Stream, resolution, frame rate, bit rate adjustable
• Support RTSP Compatible with VLC Media Player
• Onvif Compliant
• Support plug in & play, Web based 16-CH Video Management
• Support Two Way Audio
• Build in Motion Detection
• 1/4" CMOS Sensor Progressive Scan
• 4-9mm Vari-focal Lens Built-in
• Support Power over Ethernet (IEEE 802.3af)
• Support Day/Night, 50m IR Range
• IP66 Waterproof Housing
Specification:
|
Digital Video Processor: |
|
|
Compression Format |
H.264 Main Profile @level 3 |
|
Frame Rate |
PAL: 1-25 fps NTSC: 1-30 fps |
|
Video Protocol |
TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,R TP, and RTSP |
|
CPU |
ARM 926 EJ-S, 32-bit RISC processor, Harvard architecture |
|
Camera Access |
10 users |
|
Bit Rate |
800Kbps ~ 4Mbps |
|
Video Size |
1600*1200(15 fps)/1280*720(25 fps)/ CIF/4CIF/VGA/QVGA |
|
Audio |
G.726 compression/ Two way audio |
|
Alarm |
One Channel Output |
|
Camera: |
|
|
Image Sensor |
1/4" CMOS Progressive Scan |
|
Lens |
4-9mm Vari-focal Lens |
|
Minimum illumination |
0 Lux |
|
S/N ratio |
More than 48dB |
|
IR Distance |
50m |
|
LAN Ports |
10/100 BASE-T, RJ45, 1ea |
|
Operation Temperature |
-10°C~+50°C |
|
Operation Humidity |
Within 95% RH |
|
Power Supply |
DC12V 2A or 802.3af POE optional |
