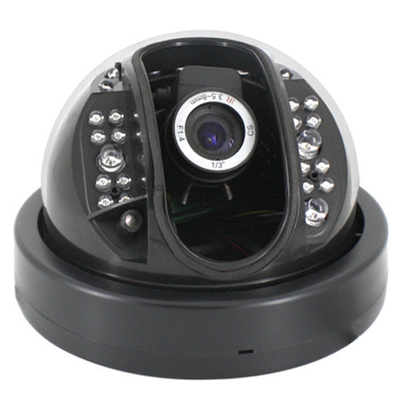

Indoor Wired H.264 IR-cut IP CCTV Camera 0.3 MP 1/4" Color CMOS , RJ-45 DHCP / FTP
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,hd cctv cameras |
||
|---|---|---|---|
Indoor Wired H.264 IR-cut IP CCTV Camera 0.3 MP 1/4" Color CMOS , RJ-45 DHCP / FTP
Specifications:
CMOS 0.3 Megapixel,
Support 32GB TF card storages,
Support 4 visitors viewing on line at the same time.
| Catalogue | Type | Parameters |
| Features | System security | Supports three-level account, password, user multi-level authoritymanagement |
| Mobile Platform | No need to install software, Multi-screen monitoring and managingby mobile phone,alarming,viewing. | |
| View on PC | Internet Explorer 6.0 or higher version,firefox,chrome | |
| Super Client | 1,4,9,16,25,36, 64,81-channel , no user limited , centralizedmonitor, remote record and playback , Skype message alarm, skypetelephone alarm | |
| System | Operation system | Embedded Linux OS |
| System security | Supports three-level account, password, user multi-level authoritymanagement | |
| DDNS | Provide DDNS for free | |
| Collection | Image sensor | 1/4 inch 0.3 MegaPixel Color CMOS Image Sensor |
| SNR | ≥50dB | |
| Minimum Illumination | 0.3 Lux | |
| 3A | Auto White Balance,Auto Exposure,Automatic Gain | |
| Lens | Standard:6mm | |
| Video | Compression Format | H.264 |
| Resolution of Main Stream | VGA(640×480);QVGA(320×240) | |
| Maximum frame rate | 30fps | |
| Bit Rate | 128Kbps~1Mbps can be selected | |
| Adjustment | light intensity,contrast ratio,saturation level are adjustable. | |
| Nightvision | Effects | 22pcs 5 IR leds , IR Distance: 20m,Built-in IR Cut, No Color Cast |
| Network | Socket | RJ-45 10/100Mb self-adaptable Ethernet slot |
| Protocol |
TCP/IP,HTTP,TCP,UDP,ARP,IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP, UPnP,PPPoE,etc |
|
| Visitors Online | Support 4 visitors viewing on line at the same time | |
| Memory | Customized | Interface, playback SD card record |
| Alarm | Alarm Detection | Support motion detecting |
| Alarmaction | E-mail pictures /upload video by FTP/capture and take video by SDcard /messages alarm(coordinate to server) | |
| Physical index | Power | DC 12V |
| Comsumption | <6W | |
| Temperature | -10~50 | |
| Humidity | 10%~85% | |
| Weight | Net:625g, Gross:1228g ( Note:in kind prevail) | |
| Body Size | 175mm x 74mm x 84mm (L*W*H) | |
| Package size | 278mm x 196mm x 106mm(L*W*H) | |
| Certification | Certificate | ISO FCC CE |
