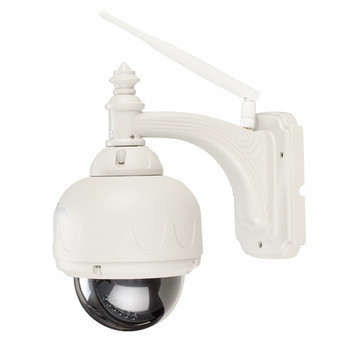

Dome Pan Tilt Outdoor IP CCTV Security Camera With Night Vision Infrared , IR CUT
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,hd cctv cameras |
||
|---|---|---|---|
Specifications:
wireless IEEE 802.11b/g
22 IR LEDs, Night visibility up to 20 M
PT vertically 90,horizontally 355
Features:
M-JPEG Video Compression
•Interface : RJ45
•Install ActiveX Control
•PTZ [Pan/Tilt/ZOOM] Vertically 90°, Horizontally 360°
•Image Frame Rate : Max. 30fps
•Image Sensor:300K Pixels CMOS Sensor
•Motion Image Resolution
•Image Processing:Auto Exposure (AE);Auto White Balance (AWB); Auto Gain Control (AGC)
•Networking Protocol: HTTP/DHCP/IP/TCP/UDP/DDNS
•DDNS:Http/PPPoE/FTP/SMTP
•Operation voltage:5.0V
•Power consumption :max 1700mA
•Alarm action: support email message and upload image to FTP
•Nightvision: 22 LED lights ( Range: 20m )
•Support 9 cameras on line simultaneously.
•MSN SERVER
•Free DDNS Server
•Support wireless network (Wi-Fi/ 802.11/b/g ) mobile.
•Multi-level users management and passwords definition
•Web browser on any computer, anywhere, anytime .
•Support for iPhone,for iPad, 3G phone ,for Android Smartphone Control and Surveillance.
•Support Firefox, Safari, Google browser (optional)
•Accessory: mounting bracket,power adapter,ethernet cable,CD(user manual and tools)
Specifications:
|
ITEM |
IP CAM (NIP-31BGP) |
|
|
Image Sensor |
Mage sensor |
1/5" Color CMOS Sensor |
|
Display |
640 x 480 (300K Pixels) |
|
|
Lens |
f:3.6mm, F:2.4 (IR Lens) |
|
|
Mini.illumination |
0.5 Lux |
|
|
Lens |
Lens Type |
Glass Lens |
|
Viewing Angle |
60 Degree |
|
|
Audio |
Microphone |
No Audio |
|
Domain name |
Server |
MSN server/ DDNS server |
|
Video |
Image Compression |
MJPEG |
|
Image Frame Rate |
15 FPS(VGA),30FPS(QVGA) |
|
|
Resolution |
640 x 480(VGA), 320 x 240(QVGA) |
|
|
Flip Mirror Images |
rtical / Horizontal |
|
|
mode |
50Hz, 60Hz or Outdoor |
|
|
Video Parameters |
Brightness, Contrast |
|
|
Communication |
Ethernet |
One 10/100Mbps RJ-45 |
|
Supported Protocol |
HTTP/DHCP/IP/TCP/UDP/FTP/SMTP/DDNS/PPPoE/UPnP |
|
|
Mobilephone monitor |
Support Iphone/Ipad/3G phone/smartphone |
|
|
Wireless Standard |
IEEE 802.11b/g |
|
|
Wireless Standard |
802.11b:11Mbps(max.) 802.11g:54Mbps(max.) |
|
|
Wireless Security |
64/128-bitWEP Encryption |
|
|
Physical |
Pan/Tilt Angle |
Horizontal:360degree Vertical: 90degree |
|
Infrared Light |
10 IR LEDs, Night visibility up to 15 Mete |
|
|
Product size |
100(L) x100(W) x125mm(H) |
|
|
Gross Weight |
646.5g/pcs (packing size:196x165x123mm) |
|
|
Net Weight |
254.7g/pcs (only product) |
|
|
Power |
Specification |
DC 5V/2.5A 1.8 meter |
|
Power Consumption |
5 Watts |
|
|
Environment |
Operate Temper |
0°~ 55°C (14°F~122°F) |
|
Operating Humidity |
20% ~ 85% non-condensing |
|
|
Storage Temper |
-10°C ~ 60° (14°F ~140°F) |
|
|
Storage Humidity |
0% ~ 90% non-condensing |
|
|
PC Requirements |
CPU |
2.0GHZ or above (suggested 3.0GHz) |
|
Memory Size |
512MB or above (suggested 1.0GHz) |
|
|
Display card |
64M or above |
|
|
Supported OS |
Microsoft Windows XP/Vista/Windows7 |
|
|
Browser |
IE 6.0, IE7.0 IE8.0 firefox2.0 firefox3.0 .Google |
|
|
Certification |
CE,FCC,RoHS |
|
|
Warranty |
Limited 1-year warranty |
|
