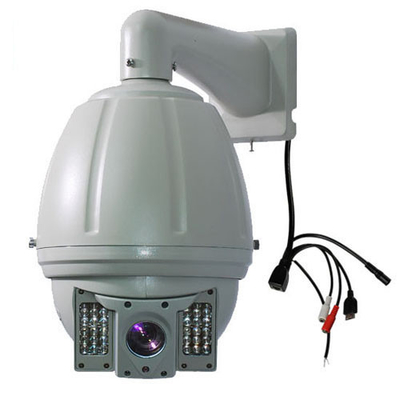

2.0 Megapixels HD Internal IP CCTV Camera ONVIF 20X Optical Zoom Infrared Webcam Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,hd cctv cameras |
||
|---|---|---|---|
2.0 Megapixels HD Internal IP CCTV Camera ONVIF 20X Optical Zoom Infrared Webcam Camera
Specifications:
2.IR distance can reach over 150M
3.Support ONVIF protocol
2.0 megapixels HD-IP synchronized zoom infrared IP CCTV camera
- Global initiative technology for synchronous zoom infrared,infrared lamp emission angle changeable correspondingly to lens zoom;
- 6 inch appearance,single lamp design, elegant appearance;
- IR distance can reach over 150M;
- Adopt 1/2.8 type "Exmor" CMOS sensor,20X optical zoom,12X digital zoom;
- Adopt SOC Hi3515processor,high integration;
- Optimized H.264 Main Profile compression algorithm,high compression ratio, high definition, support dual stream;
- Can setup image quality, code rate and frame rate;max. support HD:1920X1080=2 megapixels;
- Support video loss, motion detection( sensitivity and detection area can be setted) and sensor alarm function;
- Support bothway voice talkback and monitoring;
- Suport multi-IP protocol, such asTCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP;
- Support setup and call of preset, tour and track;
- Built-in Web Server, can realize remote monitor, control, set and other operations through IE browser;
- Support mobile monitoring;
- Support ONVIF protocol
- Pass IP66,CE,FCC,RoHs and other related validation;
- Unusual automatic recovery and auto reconnect once network interrupted;
- Buitl-in heater and radiator device, make the product apply to various severe work environment and running more stable;
Technical Specifications:
| Hardware | |
| cpu | ARM9,32 bit RISC |
| SoC | Hi3515 |
| RAM | 128MB |
| ROM | 16MB |
| LAN | Realtek 10/100M BASE-TX |
| Camera | |
| Sensor | 1/2.8 type "Exmor" CMOS |
| Pixels | HD:1920X1080=2 megapixels |
| Lens | 20X optical zoom f= 4.7 mm (WIDE) to 94.0 mm (TELE), F1.6 to F3.5 |
| 12X (240X with optical zoom) | |
| Min. illumination | High sensitivity mode:0.5 lx (IRC OFF) 0.095 lx(ICR On ) (F1.6,50 IRE) |
| Standard mode:1.7 lx (IRC OFF) 0.3 lx(ICR On ) (F1.6,50 IRE) | |
| BLC | ON/OFF |
| WB | Auto, Indoor,Outdoor,One-push,Manual |
| Interface | |
| Voice talkback output | 1 channel,MIC port(optional) |
| Audio output | 1channel,linear output(optional) |
| Analog video output | Support |
| Input alarm | 1 channel |
| Output alarm | 1 channel |
| Hard reset | Support |
| Memory interface | Support image and video storage,SD2.0, |
| Compression | |
| Video compression | H.264 Main Profile@Level 3.0 / MJPEG selectable |
| Max. image resolution | Preferred stream:1920*1080, 25fps |
| Alternated stream:640x480 | |
| Video compressed code | 32Kbps~16Mbps setable |
| OSD title | Support channel name, date and video information overlay; OSD position adjustable |
| Audio compression | G.726/G.711A/G.711U |
| Image | |
| Mask setting | Max 4 Zones selectable |
| Dual stream | Support |
| Email alarm | Support |
| Protocol | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
| ONVIF protocol | Support |
| Motion detection | Support intelligent mobile phone with Windows Mobile 6,Symbian V3/5 version , iPhone and Android system |
| Dome | |
| Horizontal rotation range | 360° infinit contionuous rotation |
| Tilt rotation range | 0°~90° auto flip 180° |
| Pan manual operation speed | 0.1~250°/S |
| Tilt manual operation speed | 0.1~200°/S |
| Preset running speed | 120°/S |
| Preset accuracy | ±0.20° |
| Preset number | 128 |
| Power off memory | Power off momory function, auto wakeup tour function |
| Working temperature | -30°C~60°C |
| Working humidity | 0% - 90% |
| Power supply | 24VAC 3A 60Hz/50Hz |
| Comsuption | Max.40W |
| IR parameters | |
| Infared light | High power LED |
| IR wavelength | 850nm |
| Zoom angle | Infared angle and all-in-one synchronized variable angle can be 3.2°~ 60° |
| IR distance | 150M |
| Flashlight | Have |
| Related validation | IP66,CE,FCC,RoHs |
