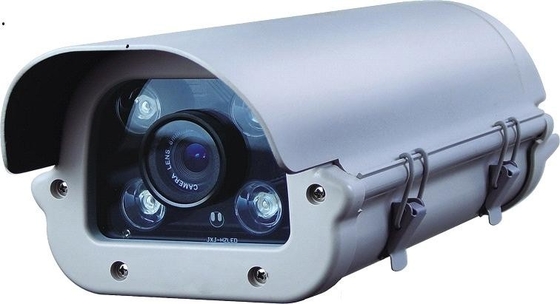

Array IR Led 720P Megapixel IP CCTV Camera Waterproof , 12 / 16mm Fixed Iris Lens , Real Time
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | network security camera,hd cctv cameras |
||
|---|---|---|---|
Array IR Led 720P Megapixel IP CCTV Camera Waterproof , 12 / 16mm Fixed Iris Lens , Real Time
Specifications:
H.264; 720P; Two Way Audio;
IR Distance: 70m
Megapixel H.264 IR Camera 720P Waterproof IP cctv camera
Key Features:
1/2.5″CMOS sensor
1.3 Mega Pixels
720P real-time
H.264 Main Profile Coding
Dual streams
Support two-way audio
12/16mm fixed iris lens Optional
4 pcs IR Array IR Leds
IR distance: 70m
True Day/Night Vision with IR Cut Fliter
Specification:
|
Processor: |
High-End TI DaVinci Low-Power DSP |
|
Operating System |
Embedded LINUX |
|
Hardware |
ARM-432MHZ/32M NAND FLASH/1GB DRAM/H264 CODEC, JPEG CODEC |
|
User Interface: |
Web, Client Interface |
|
System Status |
Stream Analysis, Log Management, Software Version |
|
Image Sensor |
1/2.5” 5MP CMOS |
|
Video Format |
PAL / NTSC |
|
Auto Iris |
DC drive |
|
Lens |
12/16mm |
|
Lens Mount: |
C / CS Mount |
|
S/N Ratio |
More than 50dB |
|
AGC |
Auto |
|
White Balance: |
Auto |
|
Video Compression |
H.264 / JPEG |
|
Video Resolution |
720P (1280 * 720) |
|
Video Frame Rate: |
1-30 FPS |
|
Dual-Stream: |
Support |
|
Video Bit Rate |
32K ~ 12Mbps bit rate adjustable |
|
Audio Compression |
G.711 |
|
Audio Bit Rate |
8kbps |
|
Audio Input |
1Ch, Line-in / Mac In, 3.5mm JACK |
|
Audio Output |
1Ch, Line Out, 3.5mm JACK |
|
Alarm |
2Ch In, 1Ch Out |
|
Network |
1Ch 10/100M Ethernet, RJ45 Port |
|
Network Protocol |
HTTP, TCP / IP, ICMP, RTSP, RTP, UDP, TTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPnP |
|
Power Off Memory |
Support |
|
RS485 |
1Ch, Support Multi PTZ Protocols |
|
Power Supply |
DC12V |
|
Power Consumption |
<3W(IR Off) |
|
Waterproof Grade |
IP66 |
|
Operation Temperature |
-20 °C ~ +80 °C, Humidity 10% ~ 90% |
|
Installation |
Bracket |
