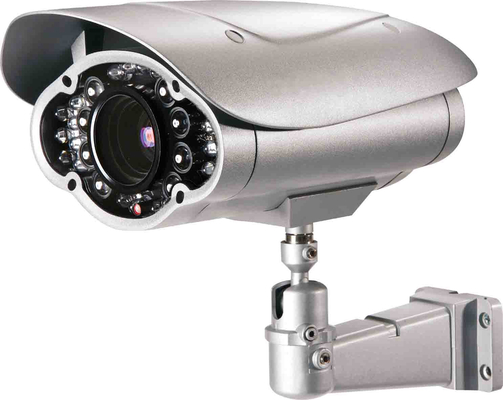

1/2 Digital High Definition 5MP IP CCTV Camera 1080P Network , S/N 50dB
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,network security camera |
||
|---|---|---|---|
1/2 Digital High Definition 5MP IP CCTV Camera 1080P Network , S/N 50dB
Specifications
*ip cctv cameras
*5MP, PoE, WDR
*P2P mobil view
*Motion detection snapshot
*Email alert
Newest,ONVIF,P2P mobile view,motion detection,email alert,SD card recording,With IR-Cut,Two-way audio talkb,ip cctv cameras
-
5 megapixel ip camera
-
P2P, PoE optional
-
With IR-Cut filter
-
AWB,AE, AGC,AWB,etc.
-
Built-in mini TF memory card slot, support 32G Max.
-
Two-way audio talkback.
-
Privacy mask, motion detection, sensor alarm, email alert .
-
H.264 compression format.
-
Multi-user remote viewing via CMS, Web browsers, IOS & Android mobile phones.
-
Automatic connection recovery after power failure or network interruption.
-
HTTP,TCP/IP,UDP,FTP,SMTP,PPPoE,DDNS,DNS,DHCP,NTP,RTSP,UPNP,etc.
|
Model |
GR-NW2430E |
GR-NW2430L |
GR-NW4430W |
GR-NW6430L |
|
|
General |
Feature |
Lite version |
Low Illumination |
Wide Dynamic Range |
HD-Low Illumination |
|
CMOS Type |
Aptina Imaging CMOS |
Aptina Imaging CMOS |
Aptina Imaging CMOS |
||
|
CMOS Model |
1/3″ 1.3 Mega Pixel |
1/3″ 3 Mega Pixel |
1/2.5″ 5 Mega Pixel |
||
|
HD Output |
960P:1280×960P |
1080P:2048×1536P |
1080P:2560×1920P |
||
|
Image Adjustable |
720P:1280×720P |
720P:1280×720P |
720P:1280×720P |
||
|
|
D1:640×480 |
D1:640×480 |
D1:640×480 |
||
|
Illumination |
Color: 0.1Lux BW:0.01Lux(F1.2,AGC ON) |
Color:0.6Lux BW:0.08Lux(F1.2,AGC ON) |
|||
|
IR Distance |
40m(42pcs black IR LED) |
||||
|
Shutter Speed |
1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable |
||||
|
Lens |
Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens |
||||
|
Exposure Control |
DSP Auto Adjust |
||||
|
AGC & W/B |
Auto |
||||
|
S/N Ratio |
≥50dB |
||||
|
Network Function |
Network Steadiness |
Auto Reconnect, Register, UPNP, HB Display, Synchronization |
|||
|
Support Agreement |
Support ONVIF 2.0, PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,UPNP, SMTP,FTP,NTP,DDNS,DNS etc. |
||||
|
Dual Stream |
Dual Stream Transfer(H.264,CBR/VBR Adjustable |
||||
|
Main Stream(1M~8Mbps)With Local Skim, SD Card etc. |
|||||
|
Sub-Stream(0.5MK~2Mbps)With Network Transfer, 3G Visit. |
|||||
|
Upgrade maintenance |
Support Remote Upgrade, With Password Protect. |
||||
|
Wireless |
Without |
Adapting WIFI or 3G, Adapting P2P Intelligence Mobile Phone Visit |
|||
|
Special Features |
Optional Function |
Without |
Paid Option:P2P,POE,TF Card |
||
|
2-Axix |
With portable & fast 2-Axis Construction for Adjust. |
||||
|
Appearance quality |
Metal Case |
||||
|
Waterproof |
Strong waterproof stopper for IP67 |
||||
|
Smart IR |
Intelligence Prevent IR light Over Exposure |
||||
|
Smart Alarm |
Motion detect,Video Shelter,I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal. |
||||
|
Video Efficiency |
Video Frame Rate |
1280×720P |
2048×1536P |
2560×1920P |
|
|
Effective Pixel |
50Hz/60Hz: 30fps/25fps |
50Hz/60Hz:20fps/15fps |
50Hz/60Hz: 10fps |
||
|
Image Capture |
JPEG for local storage |
||||
|
Image Setting |
Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. |
||||
|
Image rolling-over |
Level transposition, turn up-side down, easy for install & Adjust. |
||||
|
Audio |
Audio Encoding |
Without |
With G.726/G.722/G.711 standard code, voice monitor,2 way audio speak |
||
|
Audio Function |
Without |
Audio Broadcast,Audio talkback |
|||
|
Mount |
Power Mount |
DC female connector,5.5×2.1mm |
|||
|
Network Mount |
1ch 10M/100M ether net mouth, RJ45 Mount |
||||
|
Video Output |
1ch local analog output, BNC interface. |
||||
|
Alarm Mount |
Without |
1ch alarm input,1ch alarm output |
|||
|
Audio Mount |
Without |
1ch audio input,1ch audio output |
|||
|
RS485 Mount |
Without |
1ch RS485 Mount |
|||
|
Others |
Work Temperature |
Circle temperature:-10°C~+60°C Body temperature:25°C~35°C |
|||
|
Work humidity:<90% (without condensation) |
|||||
|
Power Consumption |
DC 12V±5% , IR ON: 8W |
||||
|
SIZE(mm) |
Unit packing:285 × 176 × 138 mm carton size:610 × 430 × 400 mm (14pcs/CTN) |
||||
|
Weight(Kg) |
Unit Weight:1.65 Kg~1.75 Kg Carton Weight:23.10 Kg~24.50 Kg |
||||
