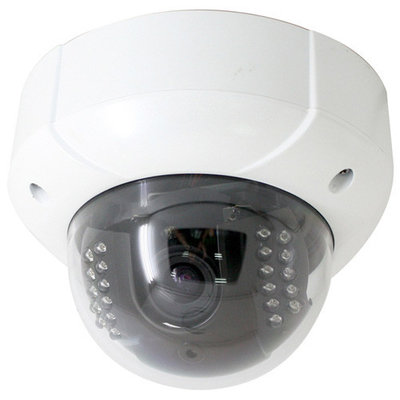

Onvif Dome Indoor / Outdoor IP CCTV Camera Security System , Varifocal Lens 4-9mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | network security camera,hd cctv cameras |
||
|---|---|---|---|
Onvif Dome Indoor / Outdoor IP CCTV Camera Security System , Varifocal Lens 4-9mm
Specifications:
Two Way Audio; Vandal-proof;
Motion Detection; IR Distance:
20m; 4-9mm Vari-focal Lens
Key Features:
• H.264 Main Profile @level 3
• 2.0 Mega-pixel, 1600*1200 Pixels
• Dual H.264 Stream, resolution, frame rate, bit rate adjustable
• Support RTSP Compatible with VLC Media Player
• Onvif Compliant
• Support plug in & play, Web based 16-CH Video Management
• Support Two Way Audio
• Build in Motion Detection
• 1/4" CMOS Sensor Progressive Scan
• 4-9mm 2.0 Mega-pixel Vari-focal lens
• Support Power over Ethernet (IEEE 802.3af)
• Day/Night, 20m IR Range
• Waterproof & Vandal-proof IP66 Housing, Indoor & Outdoor Use
Specification:
Digital Video Processor: | |
Compression Format | H.264 Main Profile @level 3 |
Frame Rate | PAL: 1-25 fps NTSC: 1-30 fps |
Video Protocol | TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTSP |
CPU | ARM926EJ-S, 32-bit RISC processor, Harvard architecture |
Camera Access | 10 users |
Bit Rate | 800Kbps~4Mbps |
Video Size | 1600*1200(15 fps)/1280*720(25 fps)/ D1/2CIF/CIF |
Audio | G.726 compression/ Two way audio |
Alarm | One Channel Output |
Camera: | |
Image Sensor | 1/4” CMOS Sensor Progressive Scan |
SYNC System | Internal |
Lens | 4-9mm 2.0 Mega-pixel Vari-focal lens |
Minimum illumination | 0 Lux |
S/N ratio | More than 48dB |
IR Range | 20m |
LED Display | Power, Link, LAN |
LAN Ports | 10/100 BASE-T, RJ45, 1ea |
Operation Temperature | -15°C~+60°C |
Operation Humidity | Within 95% RH |
Power Supply | DC12V 1.0A/802.3af POE Optional |
Connectors | RJ45 for IP Connection |
