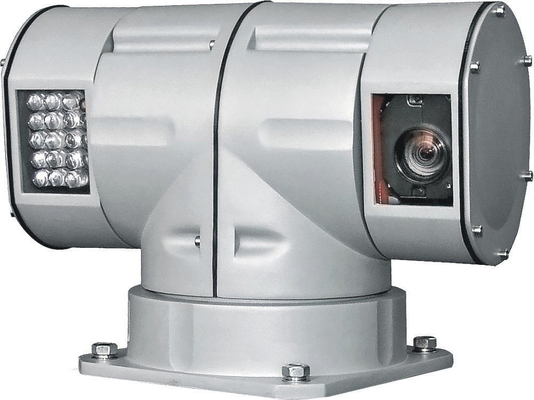

150m Infrared 720P High Speed PTZ IP CCTV Camera With Night Vision , AWB / AGC / AE
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | dome cctv camera,network security camera |
||
|---|---|---|---|
150m Infrared 720P High Speed PTZ IP CCTV Camera With Night Vision , AWB / AGC / AE
Specifications:
2.With Infrared LED , night vision range 150m
3.150m Infrared 720P high speed PTZ IP cameras
150m Infrared 720P high speed PTZ IP cameras
Introduction:
It is based on standard h. 264 main profile @ level 4 million algorithm pixel net camera. it uses a pixel perform scanned images sensors and resolution automatic zoom lens, 720p definition, can achieve the above 720TVL, 1080p definition. It can output 1000TVL high definition image of broadcasting standard.
Support 720p+720p real-time streams of code, video files can use the standard decoder decoding and direct. The software used to play.
Feature:
- High strength aluminum alloy meticulous casting case with strong capability to endure abominable temperature & anti-corrosion
- 6 programmable patrols with 128 or 256 preset positions & programmable auto pan function
- With IR LED(Optional),nigh vision range more than 150m
- Support alarm linkage and alarm motion detection
- Support of double code stream and a low flow high quality image
- Support color to black. Day Night ICR filter switch
- Brush function
- Support IE directly through
Specification:
|
Camera specification |
|
|
Image sensor |
1/2.9″ COMS . 1.3Megapixle |
|
Lens |
f4.3–88.6 mm, F1.6-2.8 Day Night ICR filter switch, Mini focus distance:10mm(wide),800mm(tele) horizontal view angle 3.2°- 55.2° |
|
Min.illumination |
Color 0.2 Lux @ 30IRE,F1.6 B/W 0.01 Lux @ 30IRE,F1.6 |
|
Auto-control |
AWB/AGC/AE |
|
Electronic shutter |
1/25s to 1/1024s |
|
zoom |
20Xoptical |
|
Audio and video |
|
|
Video compression |
H.264 Main Profile @ Level 4.1 / Motion JPEG |
|
Max. resolution |
SXGA(1280x1024),30fps HD/720p(1280x720,30fps)+Full D1(720x480,30fps) 720P(H.264)+720P(MJPEG) PAL/NTSC |
|
Horizontal Resolution |
>800TVL(1280x1024 pixels) >700TVL(1280x720 pixels) |
|
Double code |
HD/720p(1280x720,30fps)+Full D1(720x480,30fps)or 720P(H.264)+720P(MJPEG) |
|
Frame rate |
25/30 fps |
|
video |
H. 264 and M - JPEG video, in the Max. Resolution, with 25/30 fps frame speed to video output at same time. speed and the frame can be adjusted, H. 264 support VDR/CBR |
|
Audio compression |
16kHz 16bit 32kbps MP2 |
|
Audio |
Double channels, half-duplex |
|
Audio input output |
The source microphone input and output of a linear. |
|
Network |
|
|
Protocol |
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP, SOCKS |
|
Safety |
Password protecting, many users to access control |
|
System Integration |
|
|
API |
For the integration API, including SDK and VMP video management centre platform |
|
Alarm Trigger |
Video motion detection, on the external trigger sensors |
|
Alarm linkage |
Through FTP, HTTP and photo server to upload the video information and documents , start SD SDHC; relays output. |
|
Network interface |
RJ45 10Base-T/100Base-TX PoE (IEEE802.3af) |
|
Alarm |
1-input,1-output |
|
PTZ |
|
|
Tilt Range |
360°continuously |
|
Pan speed |
0.1°~ 80°/s |
|
Tilt Range |
+50°~ -60° |
|
Tilt speed |
0.1°~ 60°/s |
|
Tracks |
2 scanning tracks 4 programmable tracks, Each track can set 16 presets |
|
Power |
60W |
|
Work Temperature |
-20°C~+50°C |
