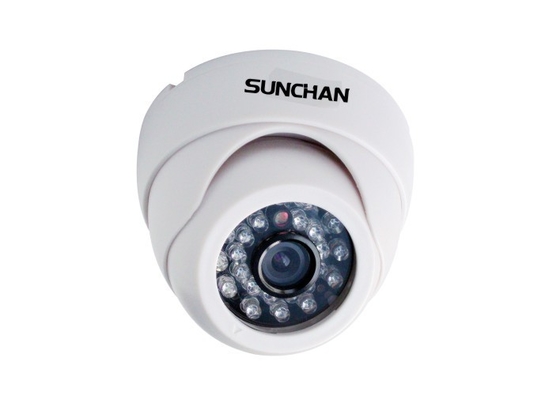

600TVL Horizontal Resolution Plastic IR Dome CCTV Camera , IR Cut Filter DM-819M
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ir dome cctv camera,mini dome cctv camera |
||
|---|---|---|---|
600TVL Horizontal Resolution Plastic IR Dome CCTV Camera , IR Cut Filter DM-819M
Quick details
Plastic IR Dome Camera
600TVL High Definition
IR Cut Filter
Focal Length 3.6mm
Super Back Light Compensation
Applications:
Indoor, like office, warehouse, convenient store
Description:
Plastic IR Dome Camera, CCTV CMOS Camera,600TVL High Definition
IR Cut Filter
Super Backlight Compensation
Specifications:
|
Model: |
DM-819M |
|
VIDEO |
|
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
Scanning System |
2:1 interlace |
|
Synchronization |
Internal |
|
Frequency |
H:15.625KHZ/V:50HZ |
|
Horizontal Resolution |
Color:600TVL |
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
|
S/N Ratio |
63.8 dB(AGC Off) |
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|
LENS |
|
|
Focal Length |
3.6mm |
|
Max.Aperture Ratio |
1:F1.6 |
|
Angular Field of View |
D:90°/H:68°/V:50° |
|
Focus Control |
manual |
|
Lens Type |
fixed iris |
|
OPERATIONAL |
|
|
Gama Correction |
R0.15 |
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|
BLC |
Super Back Light Compensation |
|
Distance |
15M(850nm IR LED:20ea) |
|
IR Cut fliter |
Yes |
|
ENVIRONMENTAL |
|
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|
ELECTRICAL |
|
|
Input Voltage/Current |
DC12V +10% |
|
Power Consumption |
750mA |
|
Adapter Requirement |
DC12V 1000mA |
|
MECHANICAL |
|
|
Color/Material |
white/plastic |
|
Bracket |
3 axis bracket inside |
|
Dimensions(W×H×D) |
93×69.4mm |
|
Net Weight |
0.5kg |
Competitive Advantage:
600TVL with high performance
ICR, real color
SUNCHAN Advantage
- 21 Years professional CCTV cameras experience
- 1 Year quality warranty
- Delivery time Guarantee
- TOP 20 Leader in security camera area in China
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
OEM/ODM service:
We can provide OEM/ODM to customers.
And put their own LOGO in sticker and camera, also with own design color box like below:
Get to know your new partner: SUNCHAN
Company profile:
Sunchan Development (Shenzhen)Co., Ltd ( Previously named YES Development Co.,Ltd ),built in 1992, is one of the leading CCTV Camera manufacturers which develops and produces CCTV products in China.
Certifications and honors:
Our market and amibition:
SUNCHAN exhibition and team
SUNCHAN project
Product warranty:
We offer 2 years warranty for SUNCHAN'S CMOS series of CCTV cameras and 1 year warranty for promotion products.And we promise the product quality in the leading place in the industry as we always did!
