700TVL 0.1Lux Indoor Home Surveillance Dome CCTV Camera , 15m IR Distance E-5006
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | ir dome cctv camera,mini dome cctv camera |
||
|---|---|---|---|

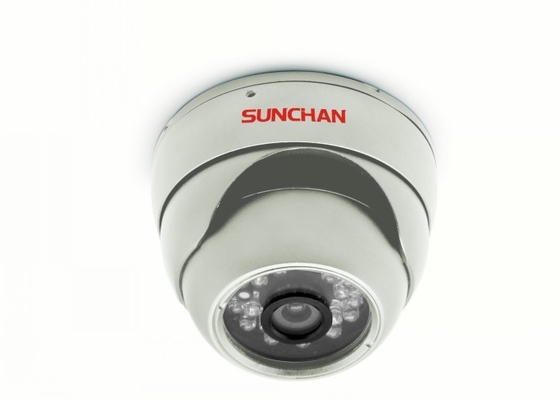

700TVL 0.1Lux Indoor Home Surveillance Dome CCTV Camera , 15m IR Distance E-5006
Quick details
Metal IR Dome Camera
High Definition
700TVL
Color:0.1Lux, B/W: 0.05Lux
Focal Length 3.6mm
Applications:
Indoor, like office, warehouse, convenient store, bus
Outdoor
Description:
Metal IR Dome Camera, High Definition
Specifications:
|
Model: |
E-5006M |
E-5006SN |
E-5006EF2 |
||
|
VIDEO |
|||||
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
1/3" Sony 3142 DSP + Sony Super HADII 632/633 CCD |
1/3" Sony Effio-E 4140 + Sony Ex-ViewII 672/673 CCD |
||
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
PAL:537(H)×597(V) NTSC:537(H)×505(V) |
PAL:1020(H)×596(V) NTSC:1020(H)×508(V) |
||
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
PAL:512(H)×582(V) NTSC:512(H)×494(V) |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
||
|
Scanning System |
2:1 interlace |
||||
|
Synchronization |
Internal |
||||
|
Frequency |
H:15.625KHZ/V:50HZ |
||||
|
Horizontal Resolution |
Color:600TVL |
420TVL |
700TVL |
||
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
Color:0.05Lux, B/W: 0.01Lux (IR Off) |
Color:0.1Lux, B/W: 0.05Lux |
||
|
S/N Ratio |
63.8 dB(AGC Off) |
≥48dB(AGC Off) |
≥52dB(AGC Off) |
||
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
||||
|
LENS |
|||||
|
Focal Length |
3.6mm |
||||
|
Max.Aperture Ratio |
1:F1.6 |
||||
|
Angular Field of View |
D:90°/H:68°/V:50° |
||||
|
Focus Control |
manual |
||||
|
Lens Type |
fixed iris |
||||
|
OPERATIONAL |
|||||
|
Gama Correction |
R0.15 |
R0.45 |
>R0.45 |
||
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
||||
|
BLC |
Super Back Light Compensation |
||||
|
Distance |
15M(850nm IR LED:20ea) |
||||
|
IR Cut fliter |
Yes |
NO |
|||
|
OSD |
No Function |
built in |
|||
|
Camera name |
ON/OFF |
||||
|
Mirror |
Mirror |
||||
|
WDR range |
52dB |
||||
|
External Synchronization |
line-lock |
||||
|
White Pixel Detection and Compensation |
Static and Dynamic |
||||
|
Menu Language |
8 languages, Chinese/English/Japanese/German/France/Russian/Portuguese/Spanish |
||||
|
Backlight |
ATR/OFF/BLC/HLC |
||||
|
Privacy mask |
ON/OFF(8 presets) |
||||
|
2DNR |
Adjustable |
||||
|
AGC |
Auto/Manual |
||||
|
White Balance |
ATW/Manual |
||||
|
ENVIRONMENTAL |
|||||
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
||||
|
ELECTRICAL |
|||||
|
Input Voltage/Current |
DC12V +10% |
||||
|
Power Consumption |
750mA |
||||
|
Adapter Requirement |
DC12V 1000mA |
||||
|
MECHANICAL |
|||||
|
Color/Material |
ivory/ Aluminium alloy |
||||
|
Dimensions(W×H×D) |
93×69.4mm |
||||
|
Net Weight |
0.5kg |
||||
