Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2

I'm Online Chat Now
Certification
China China Camera Online Market certification
China China Camera Online Market certification
We sincerely appreciate all the time and efforts during these years by improving your products, for your kind customer service.

—— Fabio

The products we order are working very well,I will place more orders with this company.

—— Mario

Highly recommended! it is a really trustworth and reliable vendor, good job!Hope to do a longterm business!

—— Mac Jordon

Good company, high quality cameras,good communication skills!

—— Garry Brian

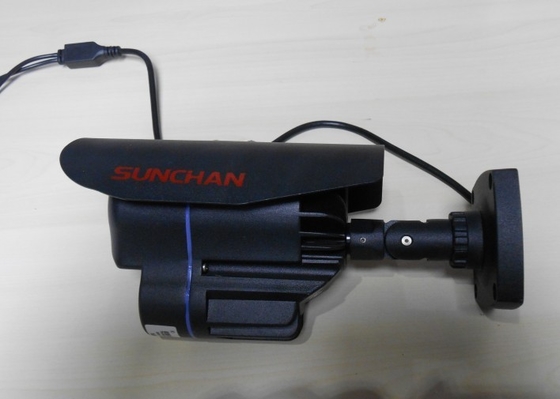

Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2

large.img.alt
small.img.alt

Large Image :  Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 Get Best Price

Product Details:
Place of Origin: China
Brand Name: DEBFFENG
Certification: ISO
Model Number: SC-5025EF2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 100,000pcs per month
Detailed Product Description
High Light:

cctv bullet cameras

,

security cctv camera

 Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2

Quick details

  1. 700TVL
  2. c:0.1Lux, B/W: 0.05Lux
  3. Distance 50M(LED Array)
  4. Mirror

Applications:

Indoor, like office, warehouse, convenient store, bus

Outdoor, like school, parking lot



Specifications:



Model:

SC-5075FEF2

VIDEO

Imaging Device

1/3" Sony Effio-E  4140 + Sony Ex-ViewII 672/673 CCD

Total Pixels

PAL:1020(H)×596(V) NTSC:1020(H)×508(V)

Effective Pixels

PAL:976(H)×582(V) NTSC:976(H)×494(V)

Scanning System

2:1 interlace

Synchronization

Internal

Frequency

H:15.625KHZ/V:50HZ

Horizontal Resolution

700TVL

Min. Illumination

c:0.1Lux, B/W: 0.05Lux

S/N Ratio

≥52dB(AGC Off)

Video Output

CVBS:1.0Vp-p/75Ω  composite

LENS

Focal Length

8mm

Max.Aperture Ratio

1:F1.6

Angular Field of View

D: 96.3°/H: 81.12°/V: 70.38°



Focus Control

manual

Lens Type

Fixed lens

OPERATIONAL

Gama Correction

>R0.45

Electronic Shutter Speed

PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec

Distance

50M(LED Array)

OSD

built in

Camera name

ON/OFF

Mirror

Mirror

WDR range

52dB

External Synchronization

line-lock

White Pixel Detection and Compensation

Static and Dynamic

Menu Language

8 languages,    Chinese/English/Japanese/German/France/Russian/Portuguese/Spanish

Backlight

ATR/OFF/BLC/HLC

Privacy mask

ON/OFF(8 presets)

2DNR

Adjustable

AGC

Auto/Manual

White Balance

ATW/Manual

ENVIRONMENTAL

Operating Temperature/Humidity

-10℃  -  +50℃(-50°F~+122°F)/Less than 90% RH

ELECTRICAL

Input Voltage/Current

DC12V    +10%

Power Consumption

1000mA

Adapter Requirement

DC12V   1500mA

MECHANICAL

Color/Material

Black/ Aluminium alloy

Dimensions(W×H×D)

150×97×101.5mm

Net Weight

0.8kg

Description:



Outdoor waterproof camera, private housing with 30M Distance

Waterproof standard: IP66

LED Array



Competitive Advantage:



Color waterproof outdoor camera,high quality

Private housing

LED Array

OSD cable

waterproof





SUNCHAN Advantage

  • 21 Years professional security camera experience
  • 1 Year quality warrenty
  • Deliver time Guarantee
  • TOP 20 Leader in security camera area in China



Package pictures:

We can provide elegant and simply color package box match with diifferent size and style cameras.



Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 0



Get to know your new partner: SUNCHAN



Company profile:

Sunchan Development (Shenzhen)Co., Ltd ( Previously named YES Development Co.,Ltd ),built in 1992, is one of the leading CCTV Camera manufacturers which develops and produces CCTV products in China

Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 1







Test equipments(some part):



Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 2





Certification and award:



Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 3

Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 4





Our market and ambition:



Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 5







Sunchan exhibition and sales team:



Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 6





Sunchan's engineering projects:



Water-Proof OSD Mirror 0.1Lux IP CCTV Cameras , Distance 50M LED Array SC-5025EF2 7



Thanks for viewing our sites, and hope to cooperate with you very soon.
