700TVL PAL NTSC 0.1Lux Metal IR Bullet Camera , Korea Pixel Plus CMOS ZH-9040B
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | cctv bullet cameras,security bullet cameras |
||
|---|---|---|---|
700TVL PAL NTSC 0.1Lux Metal IR Bullet Camera , Korea Pixel Plus CMOS ZH-9040B
Quick details
- Metal IR Outdoor Camera
- PAL NTSC
- 700TVL
- 0.1Lux 0.05Lux
- for bus
Description:
Metal IR Outdoor Camera, High Definition

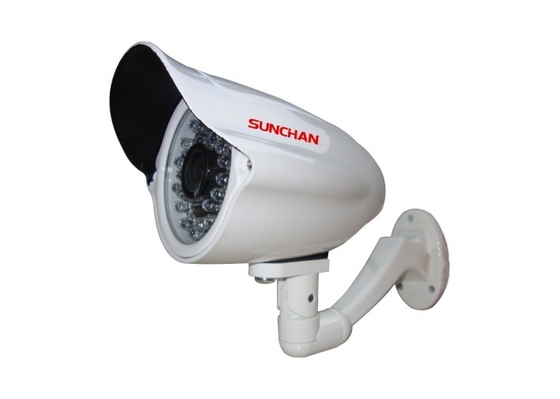

Product picture:
Specifications:
|
Model: |
ZH-9040BM |
ZH-9040BSN |
ZH-9040BEF2 |
||
|
VIDEO |
|||||
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
1/3" Sony 3142 DSP + Sony Super HADII 632/633 CCD |
1/3" Sony Effio-E 4140 + Sony Ex-ViewII 672/673 CCD |
||
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
PAL:537(H)×597(V) NTSC:537(H)×505(V) |
PAL:1020(H)×596(V) NTSC:1020(H)×508(V) |
||
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
PAL:512(H)×582(V) NTSC:512(H)×494(V) |
PAL:976(H)×582(V) NTSC:976(H)×494(V) |
||
|
Scanning System |
2:1 interlace |
||||
|
Synchronization |
Internal |
||||
|
Frequency |
H:15.625KHZ/V:50HZ |
||||
|
Horizontal Resolution |
Color:600TVL |
420TVL |
700TVL |
||
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
Color:0.05Lux, B/W: 0.01Lux (IR Off) |
Color:0.1Lux, B/W: 0.05Lux |
||
|
S/N Ratio |
63.8 dB(AGC Off) |
≥48dB(AGC Off) |
≥52dB(AGC Off) |
||
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
||||
|
LENS |
|||||
|
Focal Length |
3.6mm |
||||
|
Max.Aperture Ratio |
1:F1.6 |
||||
|
Angular Field of View |
D:90°/H:68°/V:50° |
||||
|
Focus Control |
manual |
||||
|
Lens Type |
fixed iris |
||||
|
OPERATIONAL |
|||||
|
Gama Correction |
R0.15 |
R0.45 |
>R0.45 |
||
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
||||
|
BLC |
Super Back Light Compensation |
||||
|
Distance |
40M(850nm IR LED:40ea) |
||||
|
IR Cut fliter |
Yes |
No |
|||
|
OSD |
No Function |
built in |
|||
|
Camera name |
ON/OFF |
||||
|
Mirror |
Mirror |
||||
|
WDR range |
52dB |
||||
|
External Synchronization |
line-lock |
||||
|
White Pixel Detection and Compensation |
Static and Dynamic |
||||
|
Menu Language |
8 languages, Chinese/English/Japanese/German/France/Russian/Portuguese/Spanish |
||||
|
Backlight |
ATR/OFF/BLC/HLC |
||||
|
Privacy mask |
ON/OFF(8 presets) |
||||
|
2DNR |
Adjustable |
||||
|
AGC |
Auto/Manual |
||||
|
White Balance |
ATW/Manual |
||||
|
ENVIRONMENTAL |
|||||
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
||||
|
ELECTRICAL |
|||||
|
Input Voltage/Current |
DC12V +10% |
||||
|
Power Consumption |
1000mA |
||||
|
Adapter Requirement |
DC12V 1500mA |
||||
|
MECHANICAL |
|||||
|
Color/Material |
white/ Aluminium alloy |
||||
|
Dimensions(W×H×D) |
195×95×70mm |
||||
|
Net Weight |
0.7kg |
||||
Competitive Advantage:
Color metal IR waterproof, high quality
With bracket
SUNCHAN Advantage
- 21 Years professional security camera experience
- 1 Year quality warrenty
- Deliver time Guarantee
- TOP 20 Leader in security camera area in China
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
