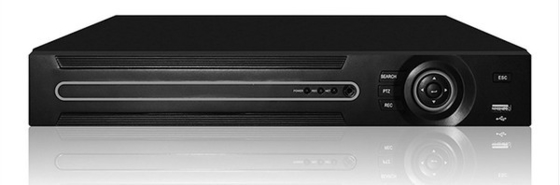

AHD / DVR NVR Network Video Recorder 4channel 1 x 4TB HDD with Audio Input
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Mental | Color: | Black |
|---|---|---|---|
| Channel: | 4 Channel | Audio: | 4 Channel Audio Input |
| Remote Access: | Support PC, Free DDNS And APP | Power Supply: | DC12V |
| High Light: | nvr network video recorder,high definition digital video recorder |
||
AHD / DVR NVR Network Video Recorder 4channel 1 x 4TB HDD with Audio Input
Quick Detail:
1. Can be used for AHD DVR , Analog DVR and NVR .
2. AHD: 4CH*720P(compatible with 960H analog)
AHD+IP: 2CH*720P+2CH*IPC1080P;
IP: 4CH*1080P; 9CH*1080P
3. Vdieo code resolution : CIF/D1/960H/720P/960P/1080P/3M/5M
4. Playback resolution : 720P 4CH 100/120 FPS+1080P 4CH 100FPS ; 720P 4CH 100/120FPS;(It is defined with the mode switch)
Description:
1. Supports ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers.
2. Support APP called : Smart Meye
3. Supports a variety of mobile devices;
4. Gigabit Ethernet port (optional);
5. HD video, HD playback;
6. CMS centralized network management software, 256 free access.
Specifications:
|
Model |
SN-AHDR-3404M |
|
Video & audio input |
|
|
Analog video input |
4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
|
Audio input |
4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
|
Video & audio output |
|
|
HDMI output |
800x600,1024x768,1280x1024,1440x900,720P,1080P |
|
CVBS output |
NO |
|
VGA output |
800x600,1024x768,1280x1024,1440x900,720P,1080P |
|
Audio output |
1PCS RCA Port( line level , impedance : 1kΩ) |
|
Video & audio code and decode parameters |
|
|
Multi-mode switch |
AHD: 4CH*720P(compatible with 960H analog) |
|
Video compress standard |
H.264 |
|
Vdieo code resolution |
CIF/D1/960H/720P/960P/1080P/3M/5M |
|
Playback resolution |
720P 4CH 100/120 FPS+1080P 4CH 100FPS ; 720P 4CH 100/120FPS;(It is defined with the mode switch) |
|
Video frame rate |
NTSC:1~30FPS/S；PAL:1~25FPS/S |
|
Video code rate |
256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M |
|
Code stream mode |
combine streams/ video stream |
|
Audio compress standard |
ADPCM |
|
Audio code rate |
16kpbs |
|
Dual-stream |
YES |
|
Synchronously playback channels |
1/4CH |
|
Hard driver |
|
|
Mode |
1*SATA |
|
HDD capacity |
each port support max 4TB HDD |
|
External port |
|
|
Voice intercom |
1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
|
Internet port |
1PCS RJ45 10M / 100M adaptive Ethernet port |
|
Serial port |
1PCS RS485 |
|
USB port |
2*USB2.0 |
|
Alarm input |
NO |
|
Alarm output |
NO |
|
Other |
|
|
Power supply |
DC12V |
|
Power consumtion(without HDD) |
≤20W |
|
Work temperature |
-10℃--＋55℃ |
|
Work humidity |
10％--90％ |
|
Case |
0.8U |
|
Size(W*L*H(cm)) |
255*215*45mm 27:260*220*43mm |
|
Net weight(without HDD) |
0.86kg |
|
Gross weight(without HDD) |
1.53kg |
|
Color box size |
36*27*8.5cm |
|
Packing(pcs/carton) |
5 |
|
Carton size (L*W*H(cm)) |
46*37.5*28.5cm |
|
Gross weight(kg) |
8.33kg (5pcs/carton) |
Feactures of Our Video Recorders
