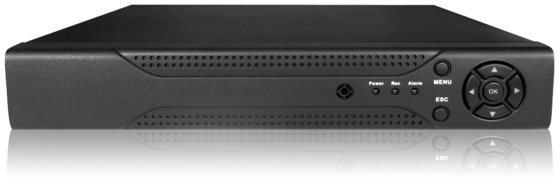

H.264 MPEG4 ONVIF Network Video Recorder NVR For IP Network Cameras
|
Product Details:
|
Detailed Product Description
| High Light: | network digital video recorder,digital video recorder surveillance |
||
|---|---|---|---|
Quick details:
- 8 channel@D1, 4 channel@720P, 2 channel@1080P IP camera inputs, It can
- support HDMI, VGA, USB2.0 and 1 HDDs
- H.264/MPEG-4 dual codec decoding
- Support 1/4 menu deleave
- Up to 8 channel@D1, 4 channel@720P, 2 channel@1080P realtime recording
- All channel simultaneous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras such as: ONVIF
- Support remote network camera encoding setting & image adjust
- IP Search feature to automatically discover network cameras
- Support 1 SATA HDDs up to 1TB, 2 USB2.0
- Built-in web server, CMS(DSS/PSS) & DMSS
H.264 MPEG4 ONVIF Network Video Recorder NVR For IP Network Cameras
Specifications:
Digital video input(mode optional) | 8 *D1/8* 960H |
4 *720P | |
2 *1080P | |
1 *720P+7* D1 | |
1 *1080P+1* 720P+2*D1 | |
Monitoring Resolution | Monitor:D1 ；VGA:HD；HDMI:HD |
Menu Deleave | 1/4 menu |
Voice Talkback | Support |
Video Playback | The same as the configured channel |
Video Interface | 4 BNC in ；1BNC out,1VGA out ,1HDMI(optonal )out |
Audio Interface | 4 in,1 out |
Alarm Interface | non |
Network Interface | 1 ge10/100/1000M Ethernet port |
Wireless Interface | Support USB WIFI/3G expansion |
Device Interface | 1 ge 485(support PTZ control),2 ge USB2.0 |
Hard Disk Interface | Support 1 SATA port(Max. 1*2T hard disk) |
The space taken by video | Video:CIF 4~5G/day * channel；D1:16~20G/day * channel；960H:9~42G/day * channel； 720P:10G~42G/day * channel；1080P:20G~80G/day * channel |
Power Input | 12V/3A |
Size | 255mm(L)* 255mm(W)* 45mm(H) |
Packing list:
- NVR* 1pcs
- CD-ROM (including user guide, software, equipment searcher)
- Power adapter *1pcs
- Screw *1 bag
- others
Tag:
NVR, Network Video Recorder, network video recorders, video recorders, compatible with ONVIF standard
