Product Details:
Payment & Shipping Terms:
|
Material: | Mental | Remote Access: | Support PC, Free DDNS And APP |
---|---|---|---|
Multi-mode: | IP Camera , Analog Camera And AHD Camera Compatible | CMS: | 265 Channel |
Model: | SN-AHDR-3408D | Audio Compress Standard: | ADPCM |
High Light: | nvr network video recorder,high definition digital video recorder |

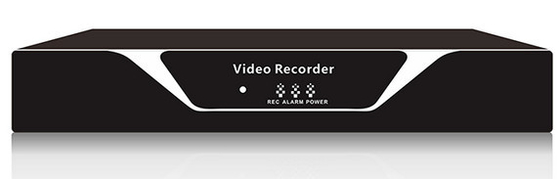

8CH 720P NVR Network Video Recorder 4ch AHD / IPC with 960H Analog
Quick Detail:
1. Video compress standard : H.264
2. Analog video input : 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω)
3. Multi-mode switch : AHD: 8CH*720P(compatible with 960H analog)
AHD+IP: 4CH*720P+4CH*IPC1080P;
IP: 9CH*1080P; 9CH*3MP; 4CH*5MP
4. Vdieo code resolution CIF/D1/960H/720P/960P/1080P/3M/5M
Description:
1. Supports ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers.
2. Support APP called : Smart Meye
3. Supports a variety of mobile devices;
4. CMS centralized network management software, 256 free access.
5. HD video, HD playback;
Specifications:
Model |
SN-AHDR-3408D |
Video & audio input |
|
Analog video input |
8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
Audio input |
4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
Video & audio output |
|
HDMI output |
800x600,1024x768,1280x1024,1440x900,720P,1080P |
CVBS output |
NO |
VGA output |
800x600,1024x768,1280x1024,1440x900,720P,1080P |
Audio output |
1PCS RCA Port( line level , impedance : 1kΩ) |
Video & audio code and decode parameters |
|
Multi-mode switch |
AHD: 8CH*720P(compatible with 960H analog) |
Video compress standard |
H.264 |
Vdieo code resolution |
CIF/D1/960H/720P/960P/1080P/3M/5M |
Playback resolution |
NTSC:1~30FPS/S;PAL:1~25FPS/S |
Video frame rate |
256kps/384Kbps/512Kbps/640kbps/768Kbps /1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M |
Video code rate |
720P 4CH 100/120 FPS+1080P 4CH 100/120FPS ; 720P 8CH 160/192FPS;(It is defined with the mode switch) |
Code stream mode |
combine streams/ video stream |
Audio compress standard |
ADPCM |
Audio code rate |
16kpbs |
Dual-stream |
YES |
Synchronously playback channels |
1/4/9CH |
Hard driver |
|
Mode |
1*SATA |
HDD capacity |
each port support max 4TB HDD |
External port |
|
Voice intercom |
1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
Internet port |
1PCS RJ45 10M / 100M adaptive Ethernet port |
Serial port |
1PCS RS485 |
USB port |
2*USB2.0 |
Alarm input |
NO |
Alarm output |
NO |
Other |
|
Power supply |
DC12V |
Power consumtion(without HDD) |
≤20W |
Work temperature |
-10℃--+55℃ |
Work humidity |
10%--90% |
Case |
0.8U |
Size(W*L*H(cm)) |
255*215*45mm 27:260*220*43mm |
Net weight(without HDD) |
0.86kg |
Gross weight(without HDD) |
1.53kg |
Color box size |
36*27*8.5cm |
Packing(pcs/carton) |
5 |
Carton size (L*W*H(cm)) |
46*37.5*28.5cm |
Gross weight(kg) |
8.33kg |
Feactures of Our Video Recorders
Picture of the Rear
