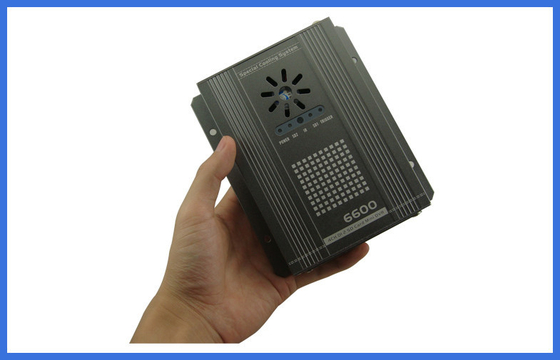

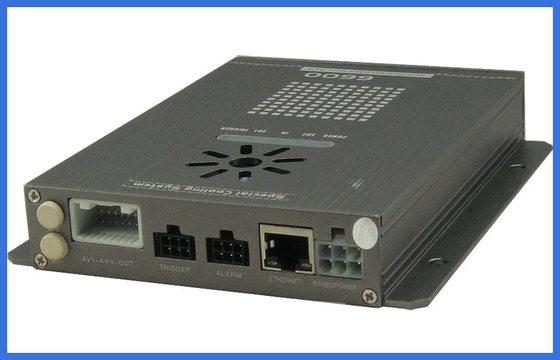

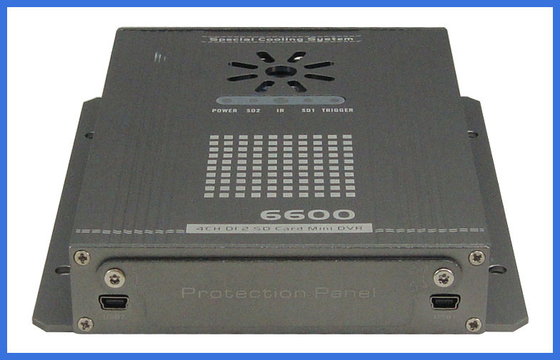

Economy 4 channel H.264 vehicle dual SD card DVR support GPS / WIFI / G-Sensor

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Economy 4 channel H.264 vehicle dual SD card DVR support GPS / WIFI / G-Sensor Get Best Price

Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: ZBS-6600
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

nvr network video recorder

,

network digital video recorder



Economy 4 channel H.264 vehicle dual SD card (128G) DVR support GPS/WIFI/G-Sensor





Quick Detail:





<1>. Real time monitoring:
The device with a standard audio, video analog signal output interface AV-OUT (i.e.: CVBS signal), can be connected to the peripheral monitor full real-time large screen monitor, 1440*900 support equipment for maximum output resolution; equipment using in the vehicle field, support the use of automobile driving directions (forward, backwards, left and right) triggering control corresponding video channel full screen image display monitor.
<2>. Compression technology:
The equipment uses the international advanced H.264 video compression technology, the various channels of audio and video using independent hardware real time compression technology, ensure the synchronous storage of audio and video, and reduce the occupied space of the storage equipment. Compared with similar equipment uses MPEG4 video compression technology of a generation ago, save the storage space of more than 2/3.
<3>. Secure storage:
The device supports 128GB High Speed Large Capacity SD card storage devices (two 64GB SD Card); data storage using professional encryption format, the user can not be late modify data processing, to ensure the authenticity and the security of data storage.
<4>. Video playback:
Each channel of the machine equipment support full real-time playback function, and support the image file retrieval, event query, single channel playback, multi-channel playback, playback of any channel combination; can backup image data to a personal computer, image playback through supporting software, support GPS trajectory tracing point features in the playback software loaded on Google map loading G-Sensor data information, and support the curve graph function; support network function for image playback.
<5>. The backup function:
Through the device USB 2 standard interface for backup of data storage, USB backup device support U disk, mobile hard disk of USB, USB-DVDRW; can store data on the SD card device connected to a personal computer, data view and backup by supporting software; and can make a backup through the network function of storage data of the equipment; in a plurality of storage equipment under the circumstances, the user also can store the device into a redundancy backup disk, video recording function, then the video equipment and redundant equipment video files are exactly the same, in order to achieve redundancy backup function.
<6>. Alarm function:
Linkage device support video motion detection, occlusion, video loss, four alarm input and exception handling and detection methods of alarm function; support linkage video, the screen prompt, buzzer, capture storage, capture send E-mail and FTP upload screenshots; support channel relay alarm output switching control signal, with a pair of normally open or closed contact control.
<7>. Network operation:
Equipment support LAN Webpage monitoring mode and system settings; LAN support centralized monitoring and management platform; support cloud service monitoring platform function of mobile phone monitoring platform support functions.
<8>. The humanized management:
The device supports multi user and password management system; equipment to support the global 14 kinds of common language; support USB mouse and keyboard intelligent operation of system; with RS485 interface, support tilt operation function; support import and export equipment system parameter configuration function, convenient for the user to batch setup and management; support system log function, convenient for user to and management of equipment; support video channel stream data display, convenient for the user to choose the storage equipment for capacity; support for regular maintenance of equipment function; centralized monitoring and management support local area network equipment.
<9>. Design features:
The equipment adopts six groups of power supply system and the unique aerodynamic design of cooling system, ensuring the efficient and stable operation of equipment; the modularized design idea, is convenient for the user selection of LCD, GPS, G-Sensor, WIFI, 3G and C-BOX advanced user function; equipment using vehicle driving direction trigger control corresponding channel video full screen display design concept aluminum alloy; die design using ultra-thin unique compact equipment; equipment with anti-theft screw and baffle design protection position double SD card slot.







Description:





ZBS-6600 series products (ZBS6600, ZBS6600G, ZBS6600W and ZBS6600GW) is a new generation of H.264 based video compression technology, high performance and low power consumption four road D1 full real-time professional car mobile monitoring equipment, support infrared remote control, USB mouse / keyboard and network operating system, support for 128GB high-speed large capacity storage device (SD card two 64GB SD Card), to support the expansion of GPS, WIFI and G-Sensor advanced user function.



Applications:





The device performance is strong, wide application range, is suitable for bus, taxi,truck, ship, train and other mobile platform monitoring, also applies to companies,factories, buildings, home video monitoring environment using fixed field etc.





Specifications :





The power output No power supply output interface (user need to on camera video equipment such aspower supply)
Working temperature - 10 DEG to 50 DEG C + (limit working temperature: the temperature of 20 DEG - + 60 C)
Video technology H.264 (data encryption protection, relevant to the needs of the platform player software to view video data)
Memory interface SD card and USB devices (U disk mobile hard disk of /USB /USB-DVD)
Storage capacity 128GB SD/SDHC Card (two 64GB SD card, SD card to recommend the use of Class6level and above)
The way of storage Recorded in full stop namely loop coverage
Camera CCD and CMOS
Video standard PAL system and NTSC system (all channels using the same input signal is allowed only when using the standard camera)
Resolution 4 road D1/Half D1/CIF/QCIF full real-time synchronous video, also support videosynchronous playback function
Video frame rate PAL (1 ~ 100FPS optional) and NTSC (1 ~ 120FPS optional)
Video quality Support multi-level adjustable
The output signal CVBS (4 Video + 4 audio, but at the same time, only supports 1 audio signal output presentation)
The network interface A 10M/100M Ethernet interface (RJ45)
Alarm input 4 independent alarm input port (with isolation function)
Alarm output 1 relay alarm output, support of a normally open contact action control
USB standard 2 USB 2 standard interface (support USB mouse / keyboard intelligent operation,support USB backup)
Infrared receiver 1 infrared receiving terminal (host positive indication class middle position)
Status indication The front side of the center position (fan out side)
Host size 137 (L) *105 (W) *25 (high)
Host weight About 430 grams





Competitive advantages:





good price, reliable quality, guarantee of delivery, best services
