PAL NTSC LINUX h.264 8ch HD Digital Video Recorder , Dual Stream SVO-6004SD
Quick details
1.H.264 main profile compression algorithm ideal for standalone DVR
2.Realtime live display up to 4/8/16 cameras
3.Pentaplex function: live, recording, playback, backup & remote access;
4.Support Dual-Streams, to make mobile monitoring very easy, flexible for network transmission
5.Multiple control methods: IR remote controller, USB mouse and front panel press button
Description:
1.H.264 main profile compression algorithm ideal for standalone DVR
2.Realtime live display up to 4/8/16 cameras
3.Pentaplex function: live, recording, playback, backup & remote access;
4.Support Dual-Streams, to make mobile monitoring very easy, flexible for network transmission
5.Multiple control methods: IR remote controller, USB mouse and front panel press button
6.Smart video detection: motion detection, video blind, video loss
7.Smart camera settings: privacy masking, camera lock, color setting, and tittle display
8.Easy backup methods: USB devices, remote network and client software backup
9.Alarm triggering screen tips, buzzer, e-mail &FTP upload
10.Smart HDDs Management: non-working HDD hibernationg, HDD faulty alarm, Raid function
11.Powerful network software: built-in web server, multi-DVR client &SNS Networking access for remote live viewing, recording, playback, setting, system statu, event log, e-mail & ftp function
12.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / RTSP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.
13.Enable strong multi-way synchronization with max 4/8 channels playback, realize the zero-delay between playback channels

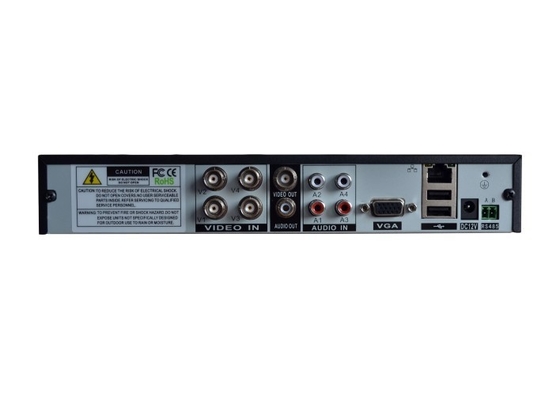

Product picture:
Specifications:
System |
Model |
SVO-6004SD |
SVO-6008SF |
SVO-6016SF |
Main Processor |
High performance embedded microprocessor |
|||
Operating System |
Embedded LINUX |
|||
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|||
User Interface |
GUI,on-screen menu tips |
|||
Control Device |
Front panel,USB mouse,IR remote control |
|||
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
||
|
Video Compression |
H.264 main profile |
||
|
Video Recording |
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s; |
||
|
Motion Detection |
Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest) Trigger recording,tour,alarm,e_mail & FTP |
||
|
TV Output Audjustment |
Adjust TV output color & display zone |
||
Audio |
Audio Conpression |
G711A |
||
Bidrectional Talk |
Support |
|||
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
||
Playback |
4/8channels playback simultaneously, Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection |
|||
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|||
Storage & Backup |
Space Occupation |
Audio28.8MB/H Video150-200 MB/H |
||
HDD Management |
Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy) |
|||
Backup Mode |
Network download/Flash stick |
|||
Interface |
Video Input |
4 channel |
8 channel |
16 channel |
|
Video Output |
1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output |
||
|
Audio Input |
4 channel ,RCA, 200-2800mV,30KΩ |
||
|
Audio Output |
1 channel ,RCA, 200-3000mV,5KΩ |
||
|
Net Interface |
RJ-45 (10M/100M) |
||
|
USB Interface |
2*USB2.0 ports |
||
|
PTZ Control |
1 RS485 |
||
|
Hard Disk |
1 SATA port(Max 2048G) |
||
Environmental |
Power Supply |
12V/3A |
||
Power Consumption |
<10W |
|||
Working Temperature |
0-55 |
|||
Working Humidity |
10%-90% |
|||
Atmosphere Pressure |
86kpa-106kpa |
|||
Dimension |
255mm*225mm*45mm |
|||
Weight |
2kg |
|||
Mounting |
Desktop |
