Product Details:
Payment & Shipping Terms:
|
Recording Storage: | HDD, Network | Frame Rate: | 30 Fps NTSC; 25fps PAL |
---|---|---|---|
Recording Playback: | 9ch 1080P Synchronously Playback | Backup Mode: | Support HDD,CD-R,USB Flash Disk Store & Backup |
High Light: | network digital video recorder,network video recorder |
System |
Main Processor |
Hi3521 |
Operating system |
Embedded LINUX OS |
|
Video spec. |
Video compression format |
H.264 |
Display Image Resolution |
720P@30fps;960P@30fps;1080P@30fps |
|
Playback Image Resolution |
720P@30fps;960P@30fps;1080P@30fps |
|
Motion Detection |
Can setup 192(16×12)pcs motion detection area eachchanneland multi-level sensitivity(1-6 levels adjustable) |
|
Privacy Masking |
depends on ipc |
|
Audio spec. |
Audio compression format |
adpcm |
two-way audio |
1ch |
|
Recording |
Recording Mode |
Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
Recording storage |
HDD, Network |
|
Frame rate |
30 fps NTSC; 25fps PAL |
|
Recording Playback |
9ch 1080P synchronously playback |
|
Backup Mode |
Support HDD,CD-R,USB Flash Disk store & backup |
|
Video |
Network Video Input |
9ch |
Network video access bandwidth |
64Mbps |
|

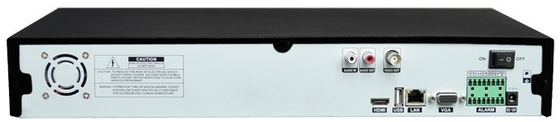

Video output |
1ch CVBS(BNC), 1ch VGA and 1ch HDMI |
|
Audio |
Audio Input |
9ch IPC Composite Audio |
Audio Output |
1ch(support two-way audio) |
|
Alarm |
Alarm Input |
16ch Alarm input |
Alarm Output |
4ch Alarm Output |
|
Other |
Network |
1x10/100Mbps,RJ45 port; |
RS485 |
Standard 485 port,support half-duplex, green terminal port |
|
USB |
2 USB 2.0 ports |
|
HDD |
support 4pcs SATA HDD inside |
|
Power |
DC +12V /5A |
|
power consumption |
20W(not include HDD and PoE) |
|
Operation temperature |
0℃-+55℃ |
|
Operation humidity |
10%-90% |
|
Demension |
365mm * 426mm * 65 mm(1.5U height) |
|
Weight |
3.5---4.05KG(not include HDD) |
