Product Details:
Payment & Shipping Terms:
|
| High Light: | nvr network video recorder,network digital video recorder |
||
|---|---|---|---|
Onvif 16 channel Network Video Recorder 8CH*720P/960P+8*1080P Realtime Recording
Quick Detail:
1. 4CH*720P/960P/2CH*720/960+2CH*1080P
2. Supports a variety of mobile devices;
3. P2P function, a key to the Internet;
4. Supports ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers.
Description:
1. Humanized design, easy to operate;
2. Supports a variety of mobile devices;
3. Gigabit Ethernet port (optional);
4. HD video, HD playback;
5. CMS centralized network management software, 256 free access.
Applications:
The hd ip security camera can be used in following both outdoor and indoor monitor environment:
Street, Garden, School, Family, Shop, Office, Building, Chain enterprise, Large factory machine room, Remote elder children nurse, Public buildings, Nobody dangerous environment monitor, Financial institution branch monitor, Traffic monitor and etc.
Specifications:
| Model | SN-NVR-6116 | |
| System | Main Processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS | |
| Video spec. | Video compression format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) | |
| Privacy Masking | depends on ipc | |
| Audio spec. | Audio compression format | adpcm |
| two-way audio | 1ch | |
| Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Recording Playback | Max suport 4ch 960P or 20ch 1080P | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | Network Video Input | 16ch |
| Video output | 1ch VGA and 1ch HDMI | |
| Audio | Audio Input | 16ch IPC Composite Audio |
| Audio Output | 1ch (audio intercom) | |
| Alarm | Alarm Input | 4ch Alarm Input(optional) |
| Alarm Output | 1ch Alarm Output(optional) | |
| Other | Network | 1x10/100Mbps,RJ45 port |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |
| HDD | support 1pcs 2TB SATA HDD inside | |
| Power | DC +12V /4A | |
| power consumption | 16W-18W(not include HDD and PoE) | |
| Operation temperature | 0℃-+55℃ | |
| Operation humidity | 10%-90% | |
| Demension | 252*213*42mm(0.8u height) | |
| Weight | 1.5--1.8KG(not include HDD) | |
Competitive advantages:
Leading and professional manufacturer in CCTV industry
7 years R&D and export experience
High Quality
Competitive and reasonable price
Best pre-sale, sale and after-sale service
24hours technical support
2 year warranty and lifetime maintenance
OEM & ODM
CE,FCC,RoHS,ISO9001-2008 passed
NVR Interface for Monitor :
NVR Central Monitoring Software :

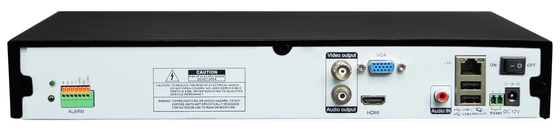

Backboard of NVR
View by NVR Mobile Software
SuperMeye
We have 24hours free online demo for PC and Mobile Access . Pls contact us for P2P QRCode. Thank you !
