48 Channel H.264 Network Video Recorder NVR with Embedded LINUX operating system
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | network digital video recorder,security video recorder |
||
|---|---|---|---|

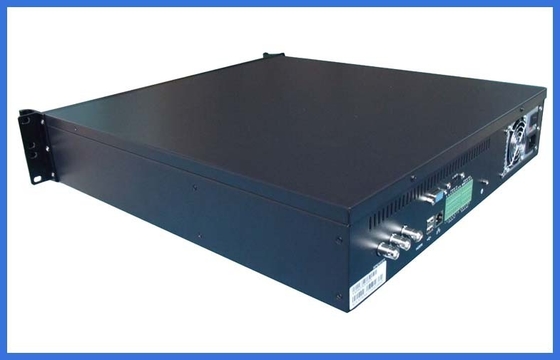

48 Channel H.264 Network Video Recorder NVR with Embedded LINUX operating system
Quick Detail:
1. Model Number: NVR-8348
2. Brand Name: ZHIBOSEN
3. Type: NVR Network Video Recorder
4. Channel: 48 channel
5. RJ45 connect: 1 pcs
6. VGA connect: 1 pcs
7. HDMI connect: 1 pcs
8. USB connect: 2 pcs USB 2.0
9. HDD: Support 9pcs 4TB SATA HDD
9. Place of Origin: Guangdong China
10. Gross Weight: 13.4kg
11. Package Size: 560x560x175mm
Description:
1. H.264 Main Profile compression standard , a higher compression ratio , better image quality.
2. Can be connected to the network camera , network speed dome ; support multiple versions Onvif agreement.
3. Compatible with mainstream brand network cameras.
4. VGA, HDMI, CVBS-D1 synchronous output , maximum resolution up to 1080P?
5. The preview screen can be freely exchanged , image position changes , physical address change, to facilitate construction ;
6. 32 bit color graphics main menu , a list of menu structure, convenient and simple to operate.
7. Fixed 4 times digital zoom , enlarge the image can easily drag ( preview , playback , CMS)
8. A powerful capture function ( local , IE, CMS, alert correlation ) .
9. Video playback time column shows the type of video color representation , quick and easy retrieval of video data .
10. Can direct playback of video clips backup data fragment data .
11. Video backup can occur based on the time and length of time to backup, backup can be accurate to the second .
12. U-disk backup files can be played back directly on the host queries , provide more convenience to playback the backup file.
13. Equipped with 3G, WIFI wireless connectivity ( when required customization )
14. Standard resolution , according to the display device to adjust the resolution , give full play to the effect of the display image .
15. The wording of the order of the hard disk , the track began to write data from zero encountered bad sectors automatically skipped to avoid bad sectors , said after the file system crashes, hard drive to improve efficiency.
16. Can be directly controlled ISP parameters on the front IPC.
17. Support for disk SMART, namely: self-testing , analysis and reporting techniques, including ( operation heads, platters, motors, circuits , history and values of the default security analysis and comparison ) .
18. Supports a variety of playback modes , fast forward , slow motion , rewind and so on , up to 16x fast forward and rewind, supports 1 / 8 speed slow .
19. When access to the audio , you can specify a channel to play audio without the overscan after playing the audio channel .
Applications:
Applies to family, community, roads, warehouses, underground parking, bar, schools, factories, companies, police stations, banks and other institutions.
Specifications :
| Operating system | Embedded LINUX operating system |
| Processor | High-performance dual-core Cortex A9 processor |
| Encoding | Standard H.264 |
| Dual-stream | Each channel can be set, range (128k ~ 12Mbps) |
| Frame Rate | NTSC System : 30 frames / sec ; PAL System : 25 frames / sec. |
| Resolution | 1080P (1920 × 1080) / 720P (1280 × 720) / 960P (1280x960) |
| ISP Parameters | Direct control of the front end of the IPC ISP parameters ( iris , gain, white balance , 3D noise reduction, wide dynamic range , image mirroring, day and night , etc. ) |
| Image Playback Quality | 4-way simultaneous playback resolution of the main stream |
| Video mode | Manual / Timer / Motion detection / alarm sensor |
| Backup | U disk , SD card , USB mobile hard drives ( maximum 2TB), USB burner , network storage and backup |
| Operation | Mouse, remote control, front panel buttons |
| Recordings are saved | Local hard drive, remote video |
| Audio Output | RCAx1 |
| Video Output | (VGAx1, HDMIx1, 1080P), CVBSx1 (D1) |
| Network Interface | 16 / 25 Road, a Gigabit Ethernet port , 32 /36 Road / 48 Road, two Gigabit Ethernet ports, 10/100/1000M adaptive mode |
| RS485 interface | Duplex standard 485 interface, support for multiple PTZ protocols , supports keyboard control PTZ joystick |
| USB Interface | Two USB 2.0 ports ( 1 front panel , a rear tailgate ) |
| Alarm Input | 16 |
| Alarm Output | 4 |
| Wireless Interface | 3G, WIFI ( when you need to customize ) |
| Maximum capacity | Each interface supports 9pcs maximum capacity of 4TB hard drive |
| Remote monitoring | Support IE browser , smartphones , CMS access Android smart phones |
| Power supply | ATX110-220V 250W 50-60Hz |
| Power Consumption | ≤ 30W ( bare metal ) |
| Operating Temperature | -10degree ~ +60 degree |
| Humidity | 10% -90 % |
| Size | Machine : 440mm × 450mm × 90mm |
| With packaging : 560mm × 560mm × 175mm | |
| Weight (without HDD) | NW : 12.8Kg; including packaging : 13.4Kg |
Competitive advantages:
good price, reliable quality, guarantee of delivery, best services
