Product Details:
Payment & Shipping Terms:
|
High Light: | network video recorder,nvr network video recorder |
---|

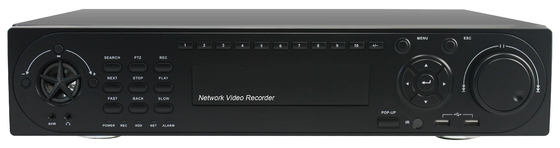

25 channel Network Video Recorder 25CH*720P Realtime Recording Support 8*3TB HDD
Quick Detail:
1. 4CH*720P/960P/2CH*720/960+2CH*1080P
2. HD video, HD playback;
3. CMS centralized network management software, 256 free access.
4. P2P function, a key to the Internet;
Description:
1. Supports ONVIF, can be widely connected to many well-known manufacturers of network cameras, network speed dome and network video servers.
2. Humanized design, easy to operate;
3. Supports a variety of mobile devices;
4. Gigabit Ethernet port (optional);
5. HD video, HD playback;
6. CMS centralized network management software, 256 free access.
Applications:
The hd ip security camera can be used in following both outdoor and indoor monitor environment:
Street, Garden, School, Family, Shop, Office, Building, Chain enterprise, Large factory machine room, Remote elder children nurse, Public buildings, Nobody dangerous environment monitor, Financial institution branch monitor, Traffic monitor and etc.
Specifications:
Model | SN-NVR-6325 | |
System | Main Processor | High performance embedded microprocessor |
Operating system | Embedded LINUX OS | |
Video spec. | Video compression format | H.264 |
Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) |
|
Privacy Masking | depends on ipc | |
Audio spec. | Audio compression format | adpcm |
two-way audio | 1ch | |
Recording | Recording Mode |
Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording |
Recording storage | HDD,Network | |
Frame rate | 30 fps NTSC;25fps PAL | |
Recording Playback | Max suport 9ch 1080P synchronously playback |
|
Backup Mode | Support HDD,CD-R,USB Flash Disk store & backup | |
Video | Network Video Input | 25CH |
Video output | 1ch CVBS(BNC), 1ch VGA and 1ch HDMI | |
Audio | Audio Input | 25ch IPC Composite Audio |
Audio Output | 1ch(support two-way audio) | |
Alarm | Alarm Input | 16ch Alarm input |
Alarm Output | 4ch Alarm Output | |
Other | Network | 1x10/100Mbps,RJ45 port; |
RS485 | Standard 485 port,support half-duplex, green terminal port | |
USB | 2 USB 2.0 ports | |
HDD | support 8pcs SATA HDD inside | |
Power | AC 110~240V | |
power consumption | 20-25W(not include HDD and PoE) | |
Operation temperature | 0℃-+55℃ | |
Operation humidity | 10%-90% | |
Demension | 440MM*445MM*90mm(2U height) | |
Weight | 8.2--8.7KG(not include HDD) |
Competitive advantages:
Leading and professional manufacturer in CCTV industry
7 years R&D and export experience
High Quality
Competitive and reasonable price
Best pre-sale, sale and after-sale service
24hours technical support
2 year warranty and lifetime maintenance
OEM & ODM
CE,FCC,RoHS,ISO9001-2008 passed
NVR Interface for Monitor :
NVR Central Monitoring Software :
Backboard of NVR
View by NVR Mobile Software
SuperMeye
We have 24hours free online demo for PC and Mobile Access . Pls contact us for P2P QRCode. Thank you !
