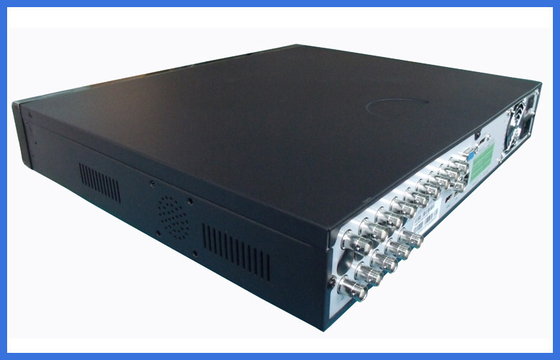

24KHz 8 Channel network digital video recorder h.264 with 2 USB port

nophotod
small.img.alt
Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: DVR-5208HF/D6
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

nvr network video recorder

,

network digital video recorder

24KHz  8 Channel network digital video recorder h.264  with 2 USB port





Quick Detail:





1. Model Number: DVR-5208HF/D6

2. Brand Name: ZHIBOSEN

3. Type: DVR

4. Channel: 8 channel

5. Video input: 8 channel BNC

6. Audio input: 4 channel

7. HDD: Support 4 pcs 3T SATA

8. USB: 2 pcs USB2.0

9. Place of Origin: Guangdong China

10. Gross Weight: 4kg

11. Package Size: 440x670x68mm





Description:





1. Supports VGA, TV and HDMI display output expansion ; VGA mode maximum support 1280 × 1024
2. 8 / 16 full D1 real-time preview video, 4 channel D1 synchronous playback
3. Multimedia storage Linear Technology
4. The hard disk group management and redundant recording
5. 10 / 100M/1000M network adaptive , support TCP / IP, PPPOE, DDNS, SNTP / NTP, RTP / RTCP / RTSP and other network protocols ;
6. With alarm host processing functions, multiple linkage output mode
7. Flexible backup , USB or network with high-speed backup
8. A substantial increase in access speed, fully synchronized multi-channel playback ;
9. Never disk fragmentation , greatly improve disk utilization ;
10. To avoid addressing head back and forth in the sector erase , the effective protection of the disk , the disk prolong life ;
11. Can automatically skips bad disk blocks , to avoid damage to the sector after the collapse of the file system .
12. Excellent electronic zoom function, by scrolling the mouse wheel button can be realized.
13. Humane playback interface , enabling customers to quickly build the required video data
14. Hours of playback zoom ;
15Support 3G, WIFI;
16. Supports a variety of mobile phone watch ;
17. Support for dynamic DNS , DNS server comes with simple and convenient ;
18. Supports fixed binding domain ( ie, active registration function ) ;
19. Support upnp port mapping and checking whether the port mapping success ;
20. The backup files to support universal player ;




Applications:





Applies to family, community, roads, warehouses, underground parking, bar, schools, factories, companies, police stations, banks and other institutions.





Specifications :







System  Operating system  LINUX real-time operating system
Video Parameters  Video compression standards  H.264
Preview resolution  PAL: 704 × 576 (D1), horizontal lines 500 , 450 lines of vertical
Playback Resolution  PAL: 704 × 576 (D1), 352 × 288 (CIF)
  NTSC: 640 × 480 (D1), 320 × 240 (CIF)
Video Input  8 channel video input , BNC socket , 1.0Vp ~ p, 75Ω
Support system  PAL / NTSC
Video Output  1 channel TV output , BNC socket , 1.0Vp ~ p, 75Ω 1 channel standard VGA output , DIN-15 socket
  1 channel HDMI output
Video Frame Rate  25 frames / sec / channel (PAL) 1,3,6,12,25 and user-definable 30 / sec / channel (NTSC) 1,3,7,15,30 and user-defined
Video output rate  32kbps ~ 4096kbps
Auxiliary video coding  CIF: 352 × 288 (PAL) / 320 × 240 (NTSC)
Auxiliary video output rate  CIF: 1 ~ 15 frames stream 32kbps ~ 512kbps
Grab function  Support preview , playback shots (JPEG format )
Audio parameters  Audio compression standard  G.726/ADPCM
Audio Input  4 audio inputs , RCA jack , 2 Vp ~ p, 600Ω
Audio Output  1 channel audio output , RCA jack , 2 Vp ~ p, 600Ω
Output sample rate  24KHz
Sample size  16
Number of Channels  Mono
Data Rate  24kbps/64kbps
Hard drive  Type  4 SATA interfaces
Maximum capacity  Single maximum support 2T SATA interface hard disk
Video Management  Video mode  Manual, time , motion detection, alarm linkage video
Recordings are saved  Support disk storage group (normal, alarm, redundancy, backup ) / Network
Playback  4 channel synchronous playback, fast forward , rewind 1x, 8x, 16x, full-screen playback mode browsing
Backup  The machine / HDD / U disk / DVD / Network
External Interface  Network Interface  1 10M/100M/1000M adaptive Ethernet interface (RJ45)
Serial Interface  An RS232 port
USB Interface  A front USB port, a rear USB port
Keyboard Interface  A keyboard RS485 port
PTZ Interface  An RS485 port
Alarm Input  8
Alarm Output  4
Other Power supply  220V ± 10%; 110V ± 10%
Power Consumption  ≤ 30W ( without hard disk access )
Operating Temperature  0 degree - +50 degree
Humidity  10% ~ 90% RH
Chassis  1.5U
Size  440 × 370 × 68mm ( length × width × height )
Weight  ≤ 6Kg ( without hard drive , accessories )
Installation Rack mount , desktop installation





Competitive advantages:





good price, reliable quality, guarantee of delivery, best services
