Waterproof 720P 1.3 Megapixel High Speed Dome Camera With Indoor White Balance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Pixel: | 1.3 Megapixel | Zone: | 8 Zones With Settable Title |
|---|---|---|---|
| Consumption: | 50W | Alarm: | 7 Inputs 2 Outputs |
| Wipers Equipped: | Support | Product Name: | 720P High Speed Dome Camera |
| High Light: | home surveillance cameras,dome security camera systems |
||

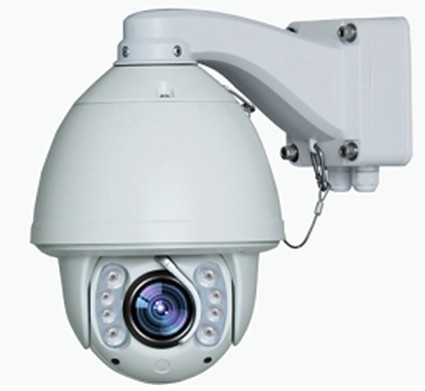

Waterproof 720P 1.3 Megapixel High Speed Dome Camera With Indoor White Balance
Quick Details:
HKF-RD20A
1.1.3 Megapixel, Exmor CMOS HD camera module.
2. Max 720P resolution, support 18X optical zoom
3.Auto tracking function with zoom in/out for unmanned surveillance.
4.The OSRAM ARRAY LEDs with IR range up to 150 meters.
5.Graphic OSD menu in Chinese and English
6. Modular circuit design,support the self-testing of the core module.
7. Powerful infrared LEDs control software suitable for more occasions.
8.Intelligent video analysis capabilities to detect the designated area.
9. Frist patent of Build-in heat sinking . Water and dust proof with high reliability.
10.Video Analysis covering intrusion and boundary violation alarm.Alarm output will ba automatically triggered.
11. Suspended quick installation structure.
12.5inch alloy aluminum construction design for housing.and aluminum radiator technology.
13. Equipped with side -open power box integrated wall bracket.
14. Intelligent temperature control design to display real-time temperature.
15. Support 3D positioning function (with specified master device)
16.Build-in precision RTC clock for timing function.
17. The dome program can be upgraded online remotely.
SPECIFICATIONS
|
Model |
HKF-RD20A
|
||
|
Camera |
|||
|
Sensor |
1/3-type Exmor CMOS |
Pixel |
1.3 Megapixel |
|
Image Size (H*V) |
1280x720 |
Frame rate |
720p/60, 720p/50, 720p/30, 720p/25 |
|
Focal length |
18X(f=5.0-90mm) |
Horizontal Field |
48.3°(w)~3.1°(t) |
|
WDR |
ON/OFF |
Electronic shutter |
1/50 to 1/10,000s, total22steps |
|
White balance |
Auto, ATW, Indoor, Outdoor,One-push, Manual |
3D noise reduction |
ON/OFF |
|
Mini. Illumination |
1.7lx(F1.6, ICR off), 0.3lx(F1.6, ICR on) |
Day/Night |
Auto(ICR) |
|
Video parameter |
set image brightness/contrast/saturation by IE |
Camera parameter |
Manual adjustment by OSD menau |
|
PTZ |
|||
|
OSD Menu |
Graphic OSD menu; PTZ, Temp and Status information display |
On-line Update |
Update via communication bus for the dome program |
|
Preset |
256 presets with defined titles |
Waterproof |
IP66, full-closed water and dust proof, Level 2 lightning protection; 3000V surging prevention |
|
Accuracy rating Of preset |
±0.1º |
Wipers equipped |
support |
|
Auto Cruise |
8 groups, each with 32 presets with settable time interval |
Auto Scan |
8 groups, settable boundaries and scan speed |
|
Pattern Tour |
4 groups, each with 500 instructions or 30 Mins operation |
Rotation |
Pan: 360° continuous rotation; Tilt: -5°~90° auto flip |
|
Guard Position |
Call upon preset, auto scan, cruise or pattern tours after no operation |
Manual Control |
High Speed: Pan: 0.01~360° Tilt 0.01~120° |
|
Alarm |
7 Inputs 2 Outputs |
Power Voltage |
DC12V ±10% |
|
3D Positioning |
Pan/tilt. and Zoom in/out via software interface |
Working Humidity |
<90% (No Condensing) |
|
Timing Action |
RTC clock design for timing events during the whole week |
Working Temp |
-35°C~55°C |
|
Zone |
8 zones with settable title |
Weight |
5.1kg |
|
Privacy Protection |
8, with settable title |
Consumption |
50W |
|
Protocol |
Self-recognition, Pelco-D/P, HS etc. |
|
|
DIMENSIONS:
