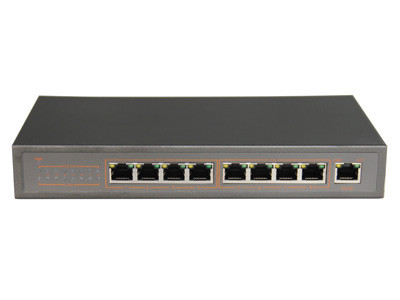

Reliable CCTV Camera Spare Parts , Compact 8 Ports POE Switch
Introduction:
The PoE switch provides power and data from a single point,using Power over Ethernet(PoE)over a single Cat-5 cable.LS5000 series can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.Advanced auto-sensing algorithm gives power to 802.3af end devices,In addition,the PoE seitch automatically determines PoE requirements,speed,duplex,and cable type using AutoUplink.Easy to operate and reliable.
The PoE switch is ideal for powering PoE devices such as IP cameras,WLAN access points,IP phones,office access control systems,and other PD devices and offers a line of high quality products that provide a total solution for ethernet application in different environments.
Key Features:
• Fully IEEE802.3af/IEEE802.3at standard compliant
• Support PoE power up to 15.3W/25.5W for each PoE ports
• Auto detect powered device(PD)
• Long distance PoE data transmission.(80m)
• Safe and reliable power to most of PoE end device
• Lighting-proof and Compact design
• Plug & Play.No configuration required
• Reliable and great value
Technology |
|
Netword Standards |
IEEE 802.3i 10BASE-T |
PoE power |
15.4W/25.5W per port(IEEE802.3af/IEEE802.3at) |
Processing types |
Store-and-forward |
Address database Table Size |
8000MAC address |
Buffer memory |
48Kb embedded memory per unit |
Netword Latency |
Less than 20μs for 64-byte frames in Store-and-forward mode for 100Mbps to 100Mbps transmission |
Power |
|
Input |
48VDC input |
PoE power consumption |
15.4W/25.5W per port(IEEE802.3af/IEEE802.3at) |
Overload current protection |
Present |
Mechanical |
|
Casing |
Metal case |
Dimension |
215(L) * 106(W) * 33(H)mm |
Weight |
0.63KG |
Installation |
Rack mounting |
Interface |
|
LED Indicators |
System:Power,PoE Maximum power |
Environment specification |
|
Operating temperature |
0-55°C(32-104°F) |
Storage temperature |
-10-70°C(14-158°F) |
Operating humidity |
90% maximum relative humidity,non-condensing |
Storage humidity |
95% maximum relative humidity,non-condensing |
Regulatory Approval |
|
ISO |
Manufactured in ISO9001 facility |
Safety |
CE/RoHS/FCC |
