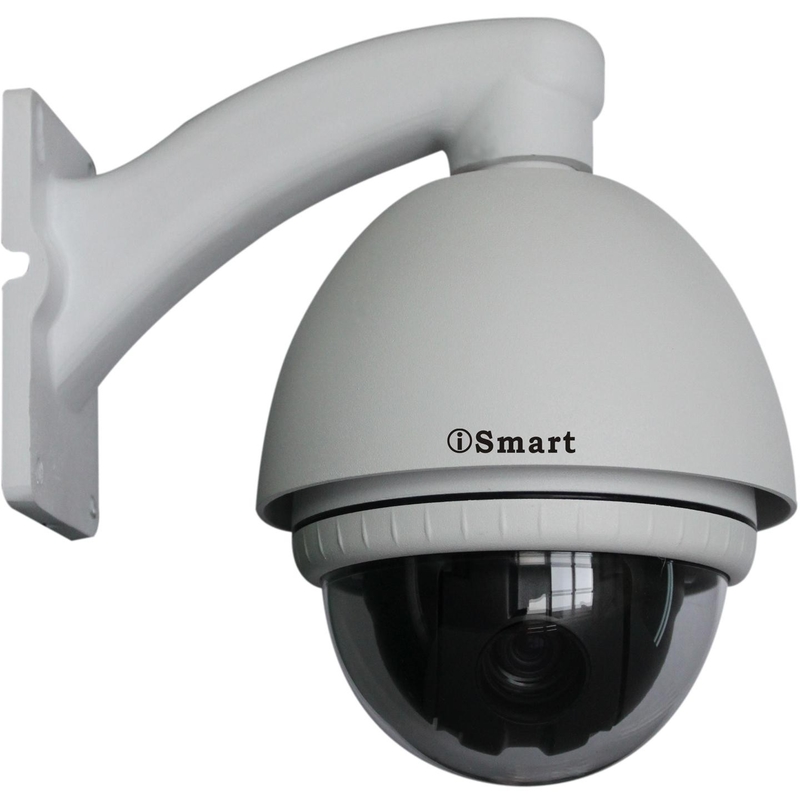

Mini indoor PTZ high speed dome camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
1.4 inch indoor PTZ camera
2.high speed dome IR dome
3.security CCTV camera system
4.high resolution 480TVL
We are the professional CCTV camera,IR Dome camera,zoom camera manufactory in china.We have more professional production line for high speed dome camera,speed dome camer,PTZ dome camera,Dsp zoom camera.
PTZ high speed dome IR security CCTV camera 480TVL
1.Make use of 10x HD color zoom camera as module.
2.The indoor monitoring system shares a series of excellence, such as full-angle, non-blind, aesthetic, delicate, compact, high performance and easy installation.
3.Rotate 360°in horizontal direction,driven by exact engine,operate stably with precise position-setting.
4.The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance.
5.Built-in OSD. Several control protocols are compatible and Baud rate is adjustable;
6. Vertical 90°continuous monitoring after auto reversing 180°.
Parameter:
Model No . | SDR-HZ49-10 |
Image sensor | 1/4" CCD |
Signal model | PAL/NTSC |
Horizontal resolution | Color: 480TVL, B/W:600 TVL |
Effective pixel | 752(Horizontal)x 582(Vertical) |
Minimum illumination | 0LUX(with IR), Color to B/W, with IR-CUT function |
S/N radio | ≥50dB(Enhanced) |
Backlight compensation | On/Off |
White balance | Auto |
Electronic shutter | 1/50~1/12000 seconds |
Focus length | 3.8~38.0mm |
Optical focus | 10X |
Focus | Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function |
Presets | 256 |
Patrol track | 4groups, each can record 100 actions |
Cruise track | Total 30 presets can join cruise, can setting the presets' residence time |
Other scan | Support Horizontal scan, deuce area scan, scan random |
Rotation range | Horizontal 360°unlimted rotation, Vertical 180°,auto reversal |
Rotation speed | Horizontal & Vertical Min 0.01°,Max 300°/S |
Communications | RS-485, PELCO D, PELCO P |
OSD | Yes |
Temperature control | built-in |
IR diatance | 30m |
Power supply | DC12V/3A |
Material | Aluminum shell,waterproof IP66 |
Work environment | -20°C~+50°C(select temperature control accessories), <;95%RH |
Welcome OEM,ODM order!
