Mini Home Security Camera System Wireless , High Definition Analog CCTV Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | home cctv cameras,security cctv camera |
||
|---|---|---|---|

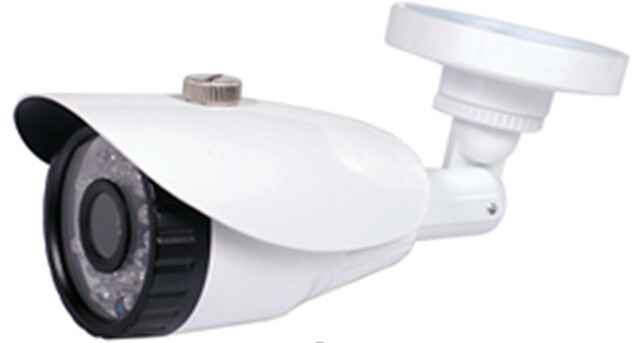

Mini Home Security Camera System Wireless , High Definition Analog CCTV Camera
Product Features:
1. Image sensor: 1/3” SONY CMOS,
2. Horizontal resolution: 800/1000/1200 TVL,
4. Lens: 3.6 / 6 / 8 mm fixed lens,
5. IR LEDs: 24pcs of ￠5mm IR LEDs,
6. Nigh Vision: 20M night vision,
7. Latest 3-axis design of bracket.
8. Material: Aluminum alloy casing
Specifications:
|
Image Sensor |
1/3"SONY CCD |
||
|
Digital Signal Processor |
SONY DSP |
||
|
Signal System |
PAL / NTSC |
||
|
Scanning System |
2:1 Interlace |
||
|
Scanning Frequency(H) |
NTSC:15.734KHZ , PAL:15.625KHZ |
||
|
Sync. System |
Internal |
||
|
Horizontal System |
1200TVL |
1000TVL |
800TVL |
|
Shuttle Speed |
PAL=1/50 ~1/100,000 sec；NTSC=1/60 ~1/100,000 sec |
||
|
Mini Illumination |
0 Lux |
||
|
S/N Ratio |
> 48dB(Auto Gain Off) |
||
|
Video Output |
1.0V P-P,75Ω |
||
|
Gamma |
0.45 |
||
|
AGC |
AUTO |
||
|
White Balance |
AUTO |
||
|
BLC |
AUTO |
||
|
Operating Temperature |
-10 ~ 40℃(relative humidity: the most 95%) |
||
|
Power Voltage |
DC12V±10％ |
||
