IR HIgh Speed Dome Camera with Outdoor/indoor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
IR HIgh Speed Dome Cameras IGV-IRPTZ14-C22 Main Features:
● IR HIgh Speed Dome Outdoor/indoor
● Diameter of Dome: 6".
● IR LED: 12pcs for distance; 20pcs for close.
● Preset speed: 200 deg./sec.
● Preset point: 128 preset points
● Effective infrared distance:80m/outdoor.100m/Indoor.

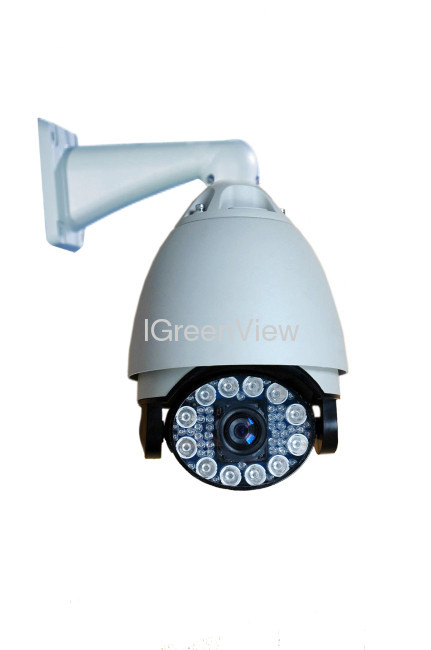

IR HIgh Speed Dome Cameras IGV-IRPTZ14-C22 Picture:
IR HIgh Speed Dome Cameras IGV-IRPTZ14-C22 Specification:
|
Camera module
|
|
|
model
|
IGV-IRPTZ14
|
|
Sensor
|
1/4 inch, Interline Transfer CCD
|
|
Total Pixels
|
795(H) x 596(V)
|
|
Effective Pixels
|
752(H) x 582(V)
|
|
Optics
|
23X, f=3.84 to 88.4mm(F 1.6 to 3.2)
|
|
Min. Focus Distance
|
1200 mm
|
|
Resolution
|
Color:540 TVLine(Min.) B/W:570 TVLine(Min.)
|
|
S/N (Y signal)
|
50 dB (AGC Off,Weight ON)
|
|
Min. Illumination
|
Color:0.6 Lux/F1.6 (50 IRE) B/W:0.1 Lux/F1.6 (50 IRE)
|
|
Dome specification
|
|
|
Dome address
|
0-255
|
|
Horizontal rotation speed
|
360° continuous rotation
|
|
Vertical rotation speed
|
0°-90°
|
|
Pan manual operation speed
|
0.5~250°/S
|
|
Tilt manual operation speed
|
0.5~200°/S
|
|
Preset running speed
|
200°/S
|
|
Accuracy
|
±0.10°
|
|
Total presets
|
128
|
|
Protocol
|
Pelco-D, Peoco-P
|
|
Baudrate
|
2400;4800;9600;19200 Default:2400(user adjustable)
|
|
Compatible cameras
|
SONY,LG,CNB,HITACHI
|
|
Auto flip
|
180°
|
|
Tour
|
8 groups,each group can set 16 presets
|
|
IR distance
|
Auto
|
|
IR flashlight
|
Not support
|
|
Horizontal scan
|
200°/S
|
|
Two point scan
|
200°/S
|
|
Intelligent Power-off memory
|
Support
|
|
Home position
|
One
|
|
Cryogenic,high-temperature and thermostat system
|
Support
|
|
Fan circulation system
|
Support
|
|
Heat sink
|
All-metal aluminium alloy radiating
|
|
Infrared lamp
|
High-power lamps,6pcs for short distance, 6pcs for long distance.
|
|
IR range
|
80 meters
|
|
Shell
|
All-metal
|
|
Working temperature
|
-40℃~60℃
|
|
Working humidity
|
0%~90% (Non-Condensed)
|
|
Power supply
|
AC24V
|
|
Consumption
|
30W
|
|
Communication mode
|
RS485 (+/-)
|
We are China IR HIgh Speed Dome Cameras manufacturer offer best IR HIgh Speed Dome Cameras OEM, ODM,service.
