IP Camera Tester Monitor CCTV Transmitting Channel Support RS232 / RS485
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | CCTV Camera Tester,CCTV Test Monitor |
||
|---|---|---|---|
IP Camera Tester Monitor CCTV Transmitting Channel Support RS232 / RS485
Quick Detail:
The new CCTV tester is developed for the On-Site installation and maintenance of IP camera,analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, Multimeter,Visual fault locator ,IP address scan, Cable scan, Video snapshot, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable’s break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Applications:
1. Find out the other end of the cable in security maintenance and network engineering
2. CCTV system installation and maintenance
3. Dome camera and All in one camera testing
4. The CCTV transmitting channel testing
5. PTZ controller
Features:
1. 3.5 inch full-view TFT-LCD, 480(RGB)x320
2. Low consumption, work for 11 hours
3. OSD menu, English, Chinese and other languages optional
4. LCD screen brightness/contrast/color Saturation adjustable
5. Cable scan, send the specific signal, easy to find the connected cable
6. Automatically identify and adapt the video mode of NTSC and PAL
7. Enhanced colorbar generator,by receiving the video color bar to test the video channel whether transmit normally
8. Moveable Micro SD
9. LED Lamp, easy to operate at night
10. User-defined shortcut keys(F1 and F2)
11. Digital Multi-meter, voltage, current, resistance and capacitance can be tested, continuity testing, diode testing.
12. Visual fault locator, It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.
13. 10x zoom,video image can be magnified to view the details, easy to use
14. Snapshot and save the current image as JPG file in the SD card
15. PING testing,test IP camera or other network devices’ ethernet port whether work normally, and the IP address whether is right
16. IP address scan, quickly search the IP address for the connected IP camera and other network devices
Specifications:
|
|
||||
|
Model |
HVT-2623/2623T(VI generation) |
|||
|
Video Test |
||||
|
Signal mode |
NTSC/PAL (Auto adapt) |
|||
|
Display |
3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution |
|||
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|||
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|||
|
Video Output Mode |
1.0 Vp-p |
|||
|
Video Level test |
||||
|
Level test |
Video signals measured in IRE or mV |
|||
|
PTZ controller |
||||
|
Communication |
Support RS232 and RS485 |
|||
|
PTZ Protocol |
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
|||
|
Baud Rate |
600,1200,2400,4800,9600,19200,57600,115200bps |
|||
|
Video Signal Generation |
||||
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) |
|||
|
UTP Cable tester |
||||
|
UTP cable test |
Test UTP cable connection status and display in the screen. Read the number of the test box. |
|||
|
DC12V 1A power output |
||||
|
DC12V power output |
Output DC12V1A power for camera |
|||
|
Audio input test |
||||
|
Audio input test |
test the pickup and other audio equipments on the front-end |
|||
|
RS485 data analysis |
||||
|
Data Monitor |
Captures and analyzes the command data from controlling device |
|||
|
10x Zoom Image |
||||
|
Image10x zoom |
10x zoom image display and video out
|
|||
|
Photograph,Video record, Record playback |
||||
|
Photograph |
snapshot and save the current image as JPG file |
|||
|
Video record |
Video record and storage the file |
|||
|
Record playback |
To view the storage file in the SD card |
|||
|
Port flicker |
||||
|
Port flicker |
Find the connected POE port quickly. |
|||
|
IP address scan,Link monitor,PING test |
||||
|
IP address scan |
Find out the connected IP camera or the other network equipment IP address quickly. |
|||
|
Link monitor |
Check the IP address whether is occupied |
|||
|
PING testing |
Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address |
|||
|
Cable scan(Wire tracker) |
||||
|
Cable scan |
Search the cable by the audio signal |
|||
|
PoE tester |
||||
|
PoE tester |
Display the power supply voltage and cable connection states |
|||
|
Digital Multimeter |
||||
|
AC/DC Voltage |
0-660V auto/manual range, the min resolution is 0.1mV |
|||
|
AC/DC current |
660.0uA , 6.600mA, 66.00mA , 660.0mA, 10.00A |
|||
|
Resistance |
660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ |
|||
|
Capacitance |
6.6nf～66000uF, the min resolution is 1pf |
|||
|
Diode |
0～2V forward voltage, the min resolution is 1mV |
|||
|
Data hold |
Hold and display the measured value |
|||
|
Relative measurement |
Display the relative power value |
|||
|
Continuity testing |
Built-in buzzer will sound, if resistance is lower than 50 Ω |
|||
|
Testing speed |
3 times/ seconds |
|||
|
Data range |
-6600～+6600 |
|||
|
Video level meter |
Only for T model |
|||
|
PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement |
||||
|
TDR cable tester ( Only for T model ) |
||||
|
TDR cable tester |
Accurately measure BNC cable, network cable, control cable break-point and short-circuits location. |
|||
|
Visual fault locator |
||||
|
Visual fault locator |
Test fiber’s bending and breakage ( SM and MM fiber) |
|||
|
POWER |
||||
|
Power Adapter |
DC 5V(1.5A) |
|||
|
Battery |
Built-in 3.7V Lithium polymer battery ,3000mAh |
|||
|
Rechargeable |
After charging 3-4 hour, working time lasts 11 hours |
|||
|
Low Consumption |
Energy saving technology, the battery icon real-time display |
|||
|
Parameter |
||||
|
Operation setting |
English/Chinese and other languages OSD menu |
|||
|
Auto off |
5-60 (mins) |
|||
|
Keytone |
On/Off |
|||
|
General |
||||
|
Working Temperature |
-10℃ ～+50℃ |
|||
|
Working Humidity |
30%～ 90% |
|||
|
Dimension/Weight |
194mm x 112mm x 48mm / 540g |
|||

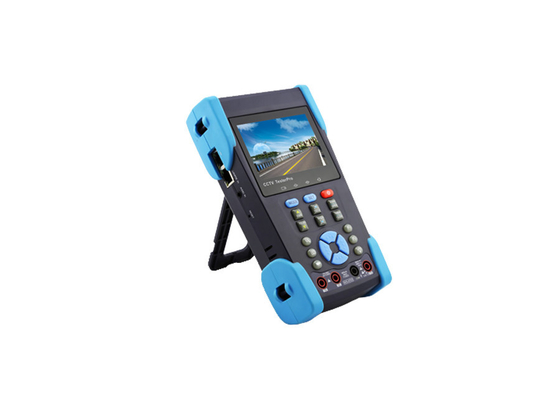

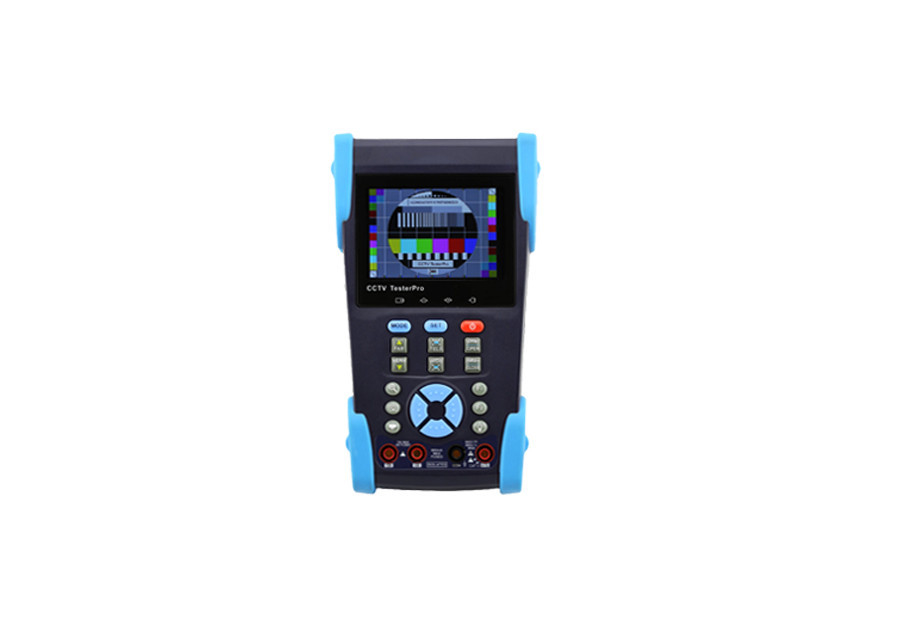

Product photo:
