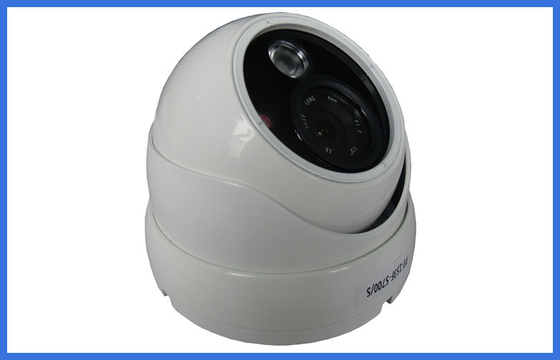

IP66 Water - proof Video IP CCTV Cameras Megapixels ultra - low - light CMOS sensor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | home cctv camera,hd cctv camera |
||
|---|---|---|---|
IP66 Water - proof Video IP CCTV Cameras Megapixels ultra - low - light CMOS sensor
Quick Detail:
1. Model Number: ZBS-IPF100H
2. Brand Name: ZHIBOSEN
3. Type: IP CCTV Camera
4. Lens: 4/6/8/12/16mm optioncal
5. Ir distance: 30M
6. View angle: 40 °
7. Lighting: 1 pcs arry lamp
8. Waterproof grade: IP66
9. Place of Origin: Guangdong China
10. Gross Weight: 0.5kg
11. Package Size: 119x119x100mm
Description:
1. High-performance processing chip SOC, reliable, low power consumption
2. Using H.264 video encoding technology, high compression ratio, high image quality
3. Support for high-definition resolution 720P (1280 * 720 30 frames)
4. The client software can record multi-point monitoring center alarm functions
5. Optional wireless networking support WIFI/802.11b/g
6. A complete network protocols, built-in WEB, support IE browser, configuration upgrade
7. Supports static IP, dynamic IP (DHCP), Dynamic DNS (DDNS) to resolve
8. Support PTZ control, alarm I / O, two-way intercom, two-way audio input and output
9. Recording images to support a variety of media player software
10. Support mobile remote monitoring, compatible with a variety of smart phone operating platform
11. Support Abnormal automatic recovery, network outages can be automatically re-connect
12. The clock time is not lost after power and support network for the time function (NTP)
13. Supports dual stream transmission, support WIFI network
14. IR distance 30 meters, IP66 waterproof rating, with ICR switching device
2. Using H.264 video encoding technology, high compression ratio, high image quality
3. Support for high-definition resolution 720P (1280 * 720 30 frames)
4. The client software can record multi-point monitoring center alarm functions
5. Optional wireless networking support WIFI/802.11b/g
6. A complete network protocols, built-in WEB, support IE browser, configuration upgrade
7. Supports static IP, dynamic IP (DHCP), Dynamic DNS (DDNS) to resolve
8. Support PTZ control, alarm I / O, two-way intercom, two-way audio input and output
9. Recording images to support a variety of media player software
10. Support mobile remote monitoring, compatible with a variety of smart phone operating platform
11. Support Abnormal automatic recovery, network outages can be automatically re-connect
12. The clock time is not lost after power and support network for the time function (NTP)
13. Supports dual stream transmission, support WIFI network
14. IR distance 30 meters, IP66 waterproof rating, with ICR switching device
Applications:
Applies to family, community, roads, warehouses, underground parking, bar, pipe, schools, engineering and other low light or no light environments and require high-quality sites.
Specifications :
| Video camera | Sensor Type | Megapixels ultra-low-light CMOS sensor |
| Effective Pixels | 1000000 | |
| Illumination | 0Lux/F1.2 (IR on) | |
| Auto Iris | Support | |
| Lens | 6mm, 8mm, 12mm, 16mm and other optional | |
| IR distance | 30 m | |
| Compression Standard | Video compression standards | H.264 |
| Video compression rate | 32Kpbs-4Mpbs | |
| Audio and video compression algorithm | H.264 main profile level 3 | |
| Audio compression rate | 64Kbps | |
| Image | Image Resolution | Main stream: 1280x720 Optional |
| Secondary stream: 640x480, 320x240 Optional | ||
| Video Frame Rate | 1-30 frame | |
| Function | Audio input and output | 1 line / MIC input, 1 output |
| Support Agreement | Support TCP / IP, HTTP, UDP, SMTP, DNS, DDNS, NTP, and other protocols | |
| Superimposed subtitles | Supports channel name, date, time, user can customize the overlay subtitles | |
| Motion Detection | You can set four separate areas | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port, an RS-485 interface WiFi 802.11b / g (optional) | |
| Alarm Interface | 1 channel alarm input (normally open normally closed can be set), 1 switch output, 120VAC 1A/24VDC 1A | |
| SD card storage | Support (optional) | |
| General Specifications | Power | DC 12V 1A / 12W |
| Operating Temperature | -10 ℃ -55 ℃ | |
| Size | 119x119x100 (MM) |
Competitive advantages:
good price, reliable quality, guarantee of delivery,good services
