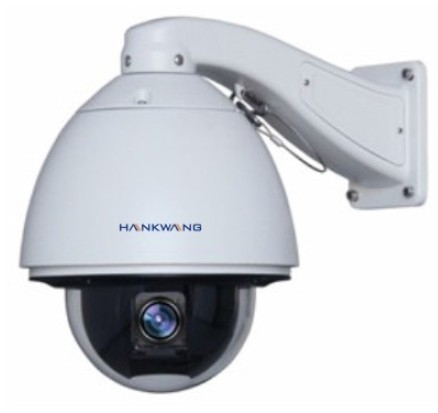

Intelligent Auto Tracking High Speed Dome , Effio-p / Effio-s CCD Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Tracking High Speed Dome | Resolution: | 700 TVlines |
|---|---|---|---|
| Digital Zoom: | 12x | Day/Night: | Auto(ICR) |
| Power Voltage: | DC12V +10% | Weight: | 3.5kg |
| High Light: | high speed ip camera,dome security camera systems |
||
Intelligent Auto Tracking High Speed Dome , Effio-p / Effio-s CCD Camera
Quick Details:
HKF-HE18
1.960H ,Sony Effio-p /Effio-s CCD camera Module
2. WDR function , with 18x optical zoom and 12X digital zoom
3.First Patent of Built-in Heat Sinking. Water and dust proof with high reliability..
6.Auto tracking function with zoom in/out for unmanned surveillance.
7. Wipers equipped to ensure a clear and crispy video image(Optional configuration)
8. Intelligent video analysis capabilities to detect the designated area.
9. 5inch alloy aluminum construction design for housing. Equipped with side-open power box integrated wall bracket (patent).
10.OSD menu in Chinese and English
11. Modular circuit design ,support the self-testing of the core module
12. Support 3D positioning function(with the specified master device)
13. Built-in precision RTC clock for timing function
14. Patent of suspended quick installation design
SPECIFICATIONS
|
Model |
HKF-HE18 |
||
|
Camera |
|||
|
Sensor |
1/3.-type SONY EXVIEW HAD CCD |
Resolution |
700 TVlines |
|
Focal length |
18X(f=4.7-84.6mm) |
Horizontal Field |
48.3°(w)~3.1°(t) |
|
WDR |
ON/OFF |
Electronic shutter |
1/50 to 1/10,000s, total 22 steps |
|
S/N ratio |
More than 50dB |
Digital zoom |
12x |
|
White balance |
Auto, ATW, Indoor, Outdoor,One-push, Manual |
3D noise reduction |
Support |
|
Mini. Illumination |
0.5lx(F1.6, ICR on) |
Day/Night |
Auto(ICR) |
|
Video parameter |
set image brightness/contrast/saturation by IE |
Camera parameter |
Manual adjustment by OSD menau |
|
PTZ |
|||
|
OSD Menu |
Graphic OSD menu; PTZ, Temp and Status information display |
On-line Update |
Update via communication bus for the dome program |
|
Preset |
256 presets with defined titles |
Waterproof |
IP66, full-closed water and dust proof, Level 2 lightning protection; 3000V surging prevention |
|
Auto Scan |
8 groups, settable boundaries and scan speed |
Pan Speed |
0.01-360°/s |
|
Auto Cruise |
8 groups, each with 32 presets with settable time interval |
Tilt Speed |
0.01-120°/s |
|
Pattern Tour |
4 groups, each with 500 instructions or 30 Mins operation |
Accuracy Rating of preset |
±0.1º |
|
Guard Position |
Call upon preset, auto scan, cruise or pattern tours after no operation |
Rotation |
Pan: 360° continuous rotation; Tilt: -5°~90° auto flip |
|
Alarm |
7 Inputs 2 Outputs |
Manual Control |
High Speed: Pan: 0.01~360° Tilt 0.01~120° |
|
3D Positioning |
Pan/tilt. and Zoom in/out via software interface |
Power Voltage |
DC12V +10% |
|
Timing Action |
RTC clock design for timing events during the whole week |
Working Humidity |
<90% (No Condensing) |
|
Zone |
8 zones with settable title |
Working Temp |
-35°C~55°C |
|
Privacy Protection |
8, with settable title |
Weight |
3.5kg |
|
Wipers equipped |
support |
Consumption |
50W |
|
Protocol |
Self-recognition, Pelco-D/P, HS etc. |
|
|
DIMENSIONS:
