HD Wireless P2P IP Cam
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Definition: | 1.0 Mega-pixel | High Resolution: | 1280X720P |
|---|---|---|---|
| Compatible With: | IPhone /iPad/ Android/PC | Lens: | 3.6mm |
| Monitoring: | 24 Hour Monitoring | IR Range: | 15M |
| Application: | Outdoor P2P IP Cam | ||
| Highlight: | p2p network camera,ip security cameras |
||
HD Wireless P2P IP Cam With 32G SD Card , 24 Hour Monitoring
Quick details
-
1.0 Mega-pixel, high definition
-
P2P Plug and Play
-
With IR Cut Filter
-
With Micro SD Card Slot Max 32G
-
1280X720P High Resolution
-
Support for 2 way audio
-
Outdoor waterproof weatherproof Housing
Description:
-
Compatible with iPhone /iPad/ Android/PC
-
1 Mega standard H.264 video compression with IR-CUT
-
Motion detection
-
Easy login by ID/ Password
-
Cloud Computing Technology
-
Multi-Client Access
-
3.6mm lens
-
All-in-One Network Camera
-
IR LEDs for day and night monitoring
-
Video compression:H.264 720P Multi Stream
-
Support 802.11b/g/n
-
15M IR Range Day night vision 24/7 viewing
-
P2P tech(without port mapping set,DNS,IP address setting)
-
Support max 32G SD Card,alarm image,24 hours continuous video storage
-
Outdoor/waterproof/weather proof metal housing
Specifications:
|
System |
Operation system |
Embedded Linux OS |
|
User/Host Level |
3levels:administrator,camera control,live view only |
|
|
Online visitor |
Support 4 visitors at the same time |
|
|
DDNS |
Free DDNS |
|
|
Image Capture |
Image sensor |
1/4 inch 720P Progressive Scan CMOS |
|
Sensor function |
AWB,AGC,AEC |
|
|
Sensor size |
3.84mmX2.16MM |
|
|
SNR |
>39db |
|
|
Minimum Illumination |
0.8Lux/F1.4(colormode),0.3Lux(B&W mode) |
|
|
Lens/View angle |
4.2mm F1.1/49.13 degree |
|
|
Night vision |
Dual filter,IR Cut,30pcs 850nm 5mmIR LED,IR Irradiation distance:15m |
|
|
Video |
Encode format |
H.264 baseline profile@levels:3.1/Motion-JPEG |
|
Image resolution |
720P/VGA/QVGA |
|
|
Bit rate |
128-4096kbps |
|
|
Max frame rate |
30fps/24fps(720P) |
|
|
Image adjustment |
Contrast,Brightness,Saturation,Hue |
|
|
Network |
Ethernet |
10Base-T/100Base-TX,RJ45 connector |
|
Protocols |
TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,PPoE,P2P |
|
|
Wireless LAN
|
Data Modulation |
DBPSK,DQPSK,CCK,OFDM,16-QAM,64-QAM |
|
Operating frequency |
2.4GHz to 2.4835GHz |
|
|
Channels |
14 |
|
|
Data rates |
802.11n:Up to 150Mbps(dynamic) |
|
|
802.11n:Up to 54Mbps(dynamic) |
||
|
802.11n:Up to 11Mbps(dynamic) |
||
|
Receiver sensitivity |
150M:-68dBm@10%PER |
|
|
130M:-68dBm@10%PER |
||
|
108M:-68dBm@10%PER |
||
|
54M:-70dBm@10%PER |
||
|
11M:-88dBm@10%PER |
||
|
6M:-90dBm@10%PER |
||
|
1M:-92dBm@10%PER |
||
|
Transmitter output power |
15+1dbm@54mbps/32+-7mw@54mbps |
|
|
Antennas |
2dBi Gain dipole antenna with reverse SMA plug |
|
|
Wireless LAN Security |
64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption |
|
|
Memory |
Socket |
Push-push socket |
|
SD card browsing |
Online playback&download,Maximum support 32GB |
|
|
Alarm |
Alarm trigger |
1 motion detection |
|
Alarm actions |
Send pictures by email/upload pictures to FTP server |
|
|
Pysical environment |
Rated voltage |
DC12V+-10% |
|
Operating conditions |
Temperature:-10-50C, humidity:10%-90% non-condensing |
|
|
Storage condition |
Temperature:-30-70C, humidity:5%-90% non-condensing |
|
|
Weight |
Gross weight 1.2KG |
|
|
Package size |
200*179*120mm |
|
|
Power consumption |
Typical:3.8W(IR LED turn off)/Max:6W(IR LED turn on) |

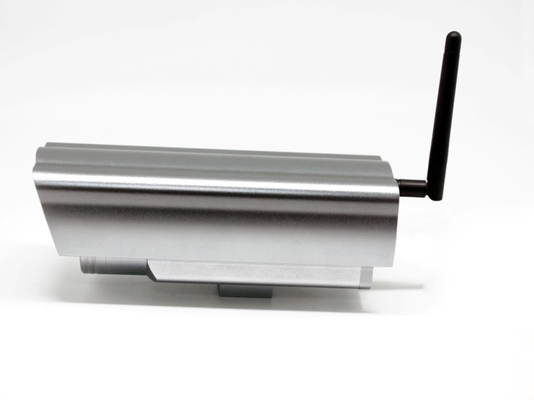

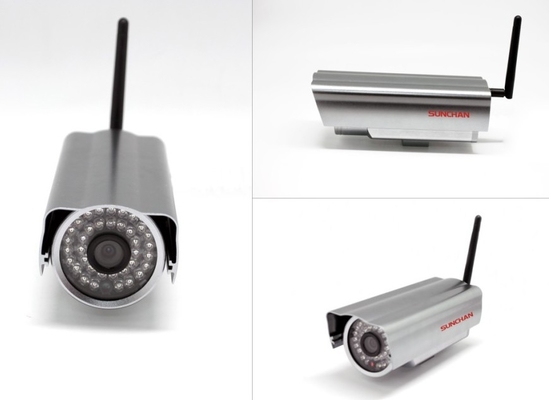

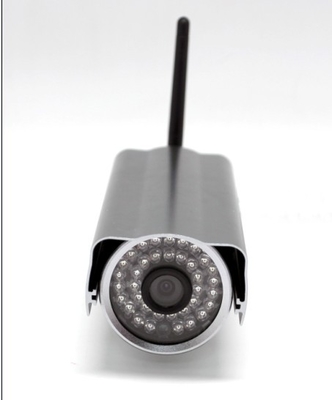

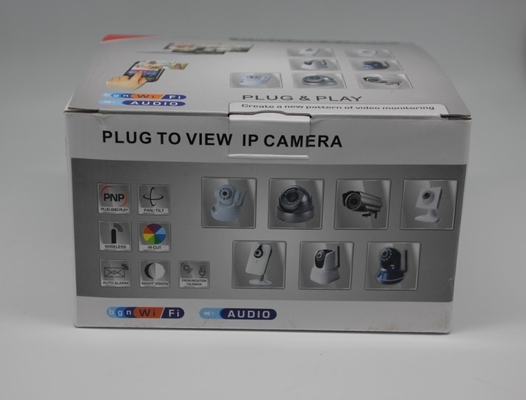

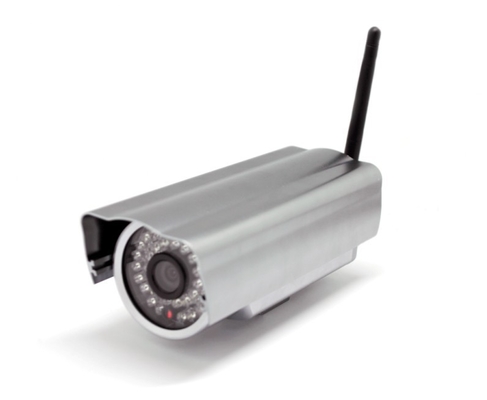

Product picture:
