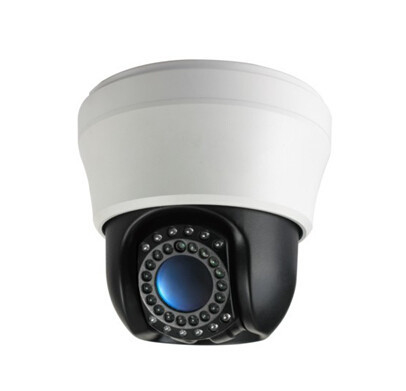

HD 960P 4 Inch Mini Plastic Infrared IP High Speed Dome Camera

Model

DR-NHSD60813RH

Image Sensor

1.3 megapixel 1/3" APTINA AR0130 CMOS

Processor Model

HI3518C

Signal System

PAL/NTSC

Scan System

Progressive scan

Video Compression

H.264 High Profile, JPEG capture

Min. Illumination

0.05Lux@F1.6(color), 0.005Lux@F1.6 (B/W)

Day/Night

Support IR-CUT

Synchronize Method

Internal synchronize

S / N Ratio

More than 50dB(AGC Off)

Video Bit Rate

100Kbps~6Mbps

ONVIF Version

Onvif 2.2

Optical Zoom

10X optical zoom

WDR

Support

Max. Image Resolution

1920*960

Frame Rate

25fps(1920*960); 30fps(1920*960)

IR Distance

30~35M

Image Setting

Saturation, Brightness, Contrast adjustable through Client software or web server

Pan & Tilt

Pan: 0~360° endless, Tilt: -5°~90°

Pan & Tilt Speed

Pan speed: 0.1° ~220°/s, Tilt speed: 0.1°~180°/s

Number of Preset

256

Patrol

5 group

Patrol Preset Number

16 for each patrol group

Pattern

5 group

Privacy Zone

2

Watchdog Function

Support

Focus Mode

Auto/Semi-auto/Manual

Speed and Focus auto match

Support

Auto IR Control

Support

Freeze Frame

Support (according to the protocols)

Alarm interface

4CH input/2CH output(optional)

Menu Language

Support more than 20 kinds of languages

Network Interface

RJ45, 10/100M Network adaptive

Internet Protocol

RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

Power Supply

DC12V±0.5V, 5A

Power Consumption

Max. 25W

Working Temperature/Humidity

0ºC～+50ºC (indoor ) / ≤95% Non-condensing or less

Weight (approx.)

2kg

Mount Option

Indoor ceiling mount
