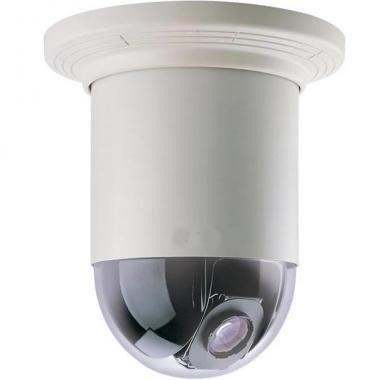

Die-cast Aluminum Surface Mount High Speed Dome Camera , PTZ Cameras WDR 36x12
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Camera Module: | Fcb-ex1010 | Optical Zoom: | 36 |
|---|---|---|---|
| Digital Zoom: | 12 | ||
| High Light: | high speed dome camera,ir speed dome camera |
||
PE3032iS5 High Speed Dome Camera , Pearmain PTZ Camera, WDR, 36x12
Quick Detail:
● High Die-cast Aluminum Construction
● Low noise design, OSD function, 128 preset positions
● 6 cruising tracks, each cruising track has 16 preset positions
● 6 privacy zone masking
● Coordinate display function
● Soft-address edit function
● Four pattern tours (each one with 120s memory)
● Multi-protocol communication
● RS485 date communication
● 4-Alarm input and 1-Alarm output
● AC24V input
Description:
PE3032iS5 is indoor ceiling surface mount high Speed dome camera, with Sony original FCB-EX1020 module,36x optical zoom, 12x digital zoom, its small size to make installation could be easy.
Specifications
|
Camera specification: |
|
|
Model No. |
PE3032IS5 |
|
Camera |
SONY FCB-CX1020P |
|
Image device |
1/4" Exview HAD CCD |
|
Wide dynamic range |
Yes |
|
Progressive scanning |
No |
|
Effective pixels |
752(H)X582(V) |
|
Synchronization system |
internal / external |
|
Video output |
VBS 1.0Vp-p/75ohm |
|
White balance |
Auto / Manual / Indoor / Outdoor / Auto-tracking / One click |
|
Scanning frequency |
15.625KHz(H) 50Hz(V) |
|
S/N Ratio |
>50dB |
|
Horizontal resolution |
550TVL |
|
Electronic shutter |
1/1 to /10,000s |
|
Minimum illumination |
1.4Lux |
|
Focal length |
f3.4 to 122.4mm |
|
Zoom ratio |
Total 432X |
|
Optical 36X |
|
|
Digital 12X |
|
|
Focal & Iris |
Auto / Manual |
|
Mechanical/Electrical: |
|
|
Pan speed |
0°~300°/s |
|
Tilt speed |
0°~120°/s |
|
Pan angle |
360° Continuously |
|
Tilt angle |
(-90° to+90°) |
|
Preset position |
128 positions |
|
Tour |
6 |
|
Communication |
Multi-protocol, RS485 control |
|
Relative humidity |
90% without agglomeration |
|
Work temperature |
0~50 deg.Celius |
|
Power supply |
AC24V |
|
Power consumption |
20VA |
|
Weight |
2Kg |
Applications:
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. to offer video to DVR/matrix system
