Black High Speed NTSC Indoor CMOS CCTV Camera , Fixed Iris Lens DM-839M
|
Product Details:
|
Detailed Product Description
| High Light: | cmos digital camera,usb cmos camera |
||
|---|---|---|---|

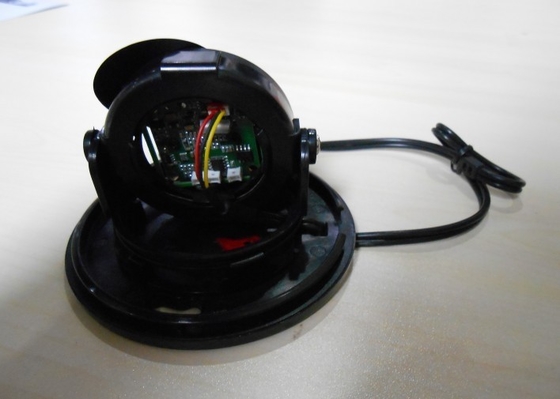

Black High Speed NTSC Indoor CMOS CCTV Camera , Fixed Iris Lens DM-839M
Quick details
Plastic Dome Camera
600TVL
Color:0.5Lux, B/W: 0.1Lux (IR Off)
Focal Length 3.6mm
fixed iris Lens
Applications:
Indoor with enough light, like office, warehouse, convenient store
Description:
Plastic Dome Camera, CCTV CMOS Camera,600TVL High Definition
Super Backlight Compensation
3 Axis Bracket inside the camera
Specifications:
|
Model: |
DM-839M |
|
VIDEO |
|
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
Scanning System |
2:1 interlace |
|
Synchronization |
Internal |
|
Frequency |
H:15.625KHZ/V:50HZ |
|
Horizontal Resolution |
Color:600TVL |
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
|
S/N Ratio |
63.8 dB(AGC Off) |
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|
LENS |
|
|
Focal Length |
3.6mm |
|
Max.Aperture Ratio |
1:F1.6 |
|
Angular Field of View |
D:90°/H:68°/V:50° |
|
Focus Control |
manual |
|
Lens Type |
fixed iris |
|
OPERATIONAL |
|
|
Gama Correction |
R0.15 |
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|
BLC |
Super Back Light Compensation |
|
Distance |
10M |
|
ENVIRONMENTAL |
|
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|
ELECTRICAL |
|
|
Input Voltage/Current |
DC12V +10% |
|
Power Consumption |
750mA |
|
Adapter Requirement |
DC12V 1000mA |
|
MECHANICAL |
|
|
Color/Material |
Black/plastic |
|
Bracket |
3 axis bracket inside |
|
Dimensions(W×H×D) |
127.2×90.6mm |
|
Net Weight |
0.3kg |
Competitive Advantage:
600TVL with high performance
SUNCHAN Advantage
- 21 Years professional security camera experience
- 1 Year quality warrenty
- Deliver time Guarantee
- TOP 20 Leader in security camera area in China
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
1/3" 2 Megapixel Exmor CMOS 1080P HD-SDI Camera IP66 Outdoor Day and night
Product Details:
| Place of Origin: | Shenzhen |
|---|---|
| Brand Name: | Sunchan |
| Certification: | CE |
| Model Number: | SC-851M2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 7-10 business days |
| Payment Terms: | 30% T/T deposit before products |
| Supply Ability: | 110,000pcs per month |
Detailed Product Description
1/3" 2 Megapixel Exmor CMOS 1080P HD-SDI Camera IP66 Outdoor Day and night : SC-2600SD
Features:
- 1/3" 2Megapixel Exmor CMOS
- Standard HD-SDI high definition digital interface ( SMPT 274/292M)
- 25/30fps@1080p, 50/60fps@720P(1280×720)
- Power input DC12V
- OSD Setup Camera
Camera pictures:
SUNCHAN Advantage
- 21 Years professional security camera experience
- 1 Year quality warrenty
- Deliver time Guarantee
- TOP 20 Leader in security camera area in China
Specification:
|
Model |
SC-2600SD |
|
Camera |
|
|
Image Sensor |
1/2.8 inch 2.4MP CMOS Sony Exmor |
|
DSP |
NEXTCHIP DSP NVP2400 |
|
Effective pixels |
1920(H)*1080(V) |
|
Electronic Shutter |
Manual/auto(1~1/10000) |
|
Image Resolution |
50HZ:1920*1080@25fps;1280*720@25fps;1280*720@50fps 60HZ:1920*1080@30fps;1280*720@30fps;1280*720@60fps |
|
Min. Illumination |
Color: 0.1Lux/F1.2, B/W: 0.01Lux/F1. 2 |
|
S/N Ratio |
>52dB |
|
Video Output |
1Vp-p Composite Output (75Ω/BNC) |
|
HD-SDI Video Output |
1ch HD-SDI high-definition video (SMPTE 274/292M standard) |
|
Camera Features |
|
|
OSD |
English, Chinese(Simplified) |
|
Day/Night |
Digital color to black |
|
Picture Adjustment |
Mirror/Contrast/Brightness/Sharpness / Hue / Gain |
|
AGC |
Manual/auto |
|
White Balance |
Manual/auto |
|
Noise Reduction |
2D |
|
Video Info |
OSD menu,adjustable by bottom |
|
Lens |
|
|
Lens Type |
Manual / Auto iris |
|
Auto Iris |
DC drive |
|
Lens Mount |
C/CS,optional |
|
General |
|
|
Power Supply |
DC12V ±10% |
|
Power Consumption |
7W Max |
|
Working Environment |
Temperature :-10℃~+55℃,humidity :10%~90% |
|
Dimensions(W×D×H) |
70.5mm*67.6mm*123mm |
|
Weight |
300g |
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
OEM/ODM service:
We can provide OEM/ODM to customer.
And put their own LOGO in sticker and camera, also with own design color box like below:
Want to know more about your new partner: SUNCHAN
Company profile:
Sunchan Development (Shenzhen)Co., Ltd ( Previously named YES Development Co.,Ltd ),built in 1992, is one of the leading CCTV Camera manufacturers which develops and produces CCTV products in China
Certifications and Awards:
Branches in China:
Our market and amibition:
SUNCHAN Exhibition and Sales Team:
Product warranty:
We offer 2 years warranty for SUNCHAN CMOS series of CCTV cameras and 1 year warranty for promotion products.And we promise the product quality in the leading place in the industry as we always did!
Thank you for viewing our site, and we wish to be your cooperative business partner in the near future!
