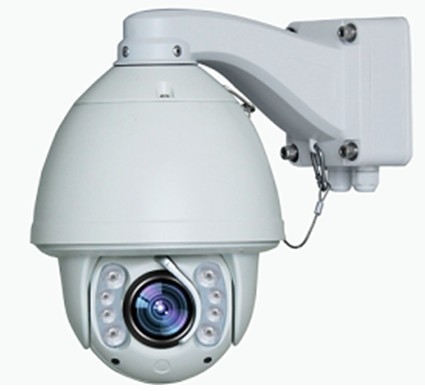

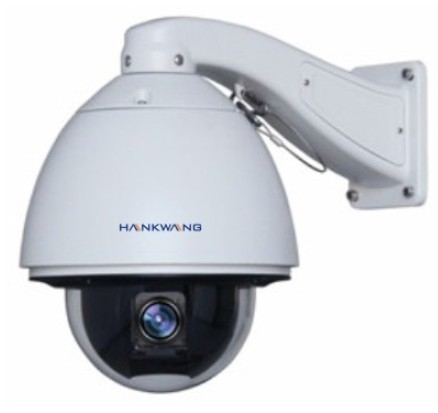

960H Sony Effio-p / Effio-s CCD High Speed Dome Camera Waterproof Infrared

Large Image : 960H Sony Effio-p / Effio-s CCD High Speed Dome Camera Waterproof Infrared Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Hankwang
Certification:	FCC,ROHS,CE

Payment & Shipping Terms:

Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T in advance , Western Union ,L/C
Supply Ability:	1000-5000pcs/month

Contact Now

Detailed Product Description

Features:	Waterproof	Product Name:	CCD High Speed Dome
Consumption:	50W	Working Temp:	-35°C~55°C
IR Distance:	150M	Weight:	3.5kg
High Light:	high speed ip camera , dome security camera systems

960H Sony Effio-p / Effio-s CCD High Speed Dome Camera Waterproof Infrared

Quick Details:

HKF-RE18

1.960H ,Sony Effio-p /Effio-s CCD camera Module

2. WDR function , with 18x optical zoom and 12X digital zoom

3.First Patent of Built-in Heat Sinking. Water and dust proof with high reliability.

4. The OSRAM ARRAY LEDs with IR range up to 150meters

5.Quickly installation for easy installation and maintenance.

6.Auto tracking function with zoom in/out for unmanned surveillance.

7. Wipers equipped to ensure a clear and crispy video image(Optional configuration)

8. Intelligent video analysis capabilities to detect the designated area.

9. 5inch alloy aluminum construction design for housing. Equipped with side-open power box integrated wall bracket (patent).

10. Graphical OSD menu in Chinese and English

11. Modular circuit design ,support the self-testing of the core module

12. Support 3D positioning function(with the specified master device)

13. Built-in precision RTC clock for timing function

14. The dome program can be upgraded online remotely

SPECIFICATIONS

Model	HKF-RE18
Camera
Sensor	1/3.-type SONY EXVIEW HAD CCD	Resolution	700 TVlines
Focal length	18X(f=4.7-84.6mm)	Horizontal Field	48.3°(w)~3.1°(t)
WDR	ON/OFF	Electronic shutter	1/50 to 1/10,000s, total 22 steps
S/N ratio	More than 50dB	Digital zoom	12x
White balance	Auto, ATW, Indoor, Outdoor,One-push, Manual	3D noise reduction	Support
Mini. Illumination	0.5lx(F1.6, ICR on)	Day/Night	Auto(ICR)
Video parameter	set image brightness/contrast/saturation by IE	Camera parameter	Manual adjustment by OSD menau
PTZ
OSD Menu	Graphic OSD menu; PTZ, Temp and Status information display	On-line Update	Update via communication bus for the dome program
Preset	256 presets with defined titles	Waterproof	IP66, full-closed water and dust proof, Level 2 lightning protection; 3000V surging prevention
Auto Scan	8 groups, settable boundaries and scan speed	IR Distance	150M
Auto Cruise	8 groups, each with 32 presets with settable time interval	Pan Speed	0.01-360°/s
Pattern Tour	4 groups, each with 500 instructions or 30 Mins operation	Tilt Speed	0.01-120°/s
Guard Position	Call upon preset, auto scan, cruise or pattern tours after no operation	Accuracy Rating of preset	±0.1º
Alarm	7 Inputs 2 Outputs	Rotation	Pan: 360° continuous rotation; Tilt: -5°~90° auto flip
3D Positioning	Pan/tilt. and Zoom in/out via software interface	Manual Control	High Speed: Pan: 0.01~360° Tilt 0.01~120°
Timing Action	RTC clock design for timing events during the whole week	Power Voltage	DC12V ±10%
Zone	8 zones with settable title	Working Humidity	<90% (No Condensing)
Privacy Protection	8, with settable title	Working Temp	-35°C~55°C
Wipers equipped	support	Weight	3.5kg
Protocol	Self-recognition, Pelco-D/P, HS etc.	Consumption	50W

DIMENSIONS:
