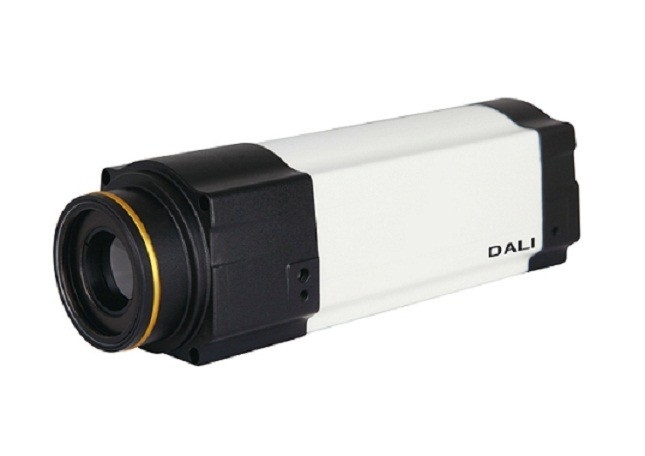

640*480 IP67 Industrial Thermal Imager , High Resolution CCTV Camera
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | thermal imaging equipment,thermal imaging scanner |
||
|---|---|---|---|
640*480 IP67 Industrial Thermal Imager , High Resolution CCTV Camera
Quick Detail:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: DALI
Model Number: DM66
Usage: Industrial
Theory: Infrared Thermometer
Detector type: Un-cooled FPA micro-bolometer
Array size: 640*480
IFOV: 0.67mrad
Thermal sensitivity: ≤0.06°C@30°C
Frame frequency: 50Hz
Focus: manual Zoom: X2
Spectral range: 8-14um
Encapsulation: IP67
Description:
◆ 640*480 uncooled FPA detector
◆ Full Real-time Display
◆ Auto/Electri Focus
◆ Multi-interface,easy integration
◆ Real-time transmission of pictures and MPEG4 infrared Videos
◆ Free SDK
Applications:
1. Electrical and mechnical industry
Security detection
Insulation failure
Loose interface detection
HVAC detective
Component detective
Repair verification
2. Building industry
Fastly scan exterior wall of the buldings
Make accurate preventive maintenance inside of the room
Technical specification:
| Item | Technical Specification | |
| DM66 | ||
| Detector | Type | Un-cooled FPA micro-bolometer |
| Array size | 640*480 | |
| Image Performance | FOV/Min focal length | 25°×19° /0.5m |
| IFOV | 0.67mrad | |
| Thermal sensitivity | ≤0.06℃@30℃ | |
| Frame rate | 50/60Hz | |
| Focus | Manual | |
| Zoom | 2×,x4 | |
| Spectral range | 8-14μm | |
| Image Display | Image adjustment | Auto/manual to adjust brightness, contrast |
| Measurement | Range | -20℃~+650℃ |
| Extend to 2000℃ | ||
| Accuracy | ± 2 °C or ± 2% of reading, Whichever is greater | |
| Measurement Correction | Auto / Manual | |
| Mode | Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures). Line profile. Isotherms. Temperature difference. Alarm(voice, color) | |
| Emissivity correction | Variable from 0.01 to 1.0 | |
| Background Temp correction | Auto | |
| Atmospheric transmission correction | Automatic correction according to user input object distance, humidity and temperature | |
| Mode | Back-end manual/auto single frame image storage,continuous recording | |
| Thermal image format |
BMP(with radiometric information) H.264(with radiometric information) |
|
| Net | Yes, with IP address for real time image and data transfer | |
| power | (DC10-15V) | |
| video | PAL/NTSC ,1BNC +1RJ45 output | |
| Audio | Bluetooth(earphone/RS232) | |
| Environment | Operation temperature | -15℃~+50℃ |
| Humidity | ≤90% | |
| Encapsulation | IP67 | |
| Dimension | Dimension | 230*72*75mm |
| weight | 1.00Kg | |
Competitive Advantage:
◆ Front-end measurement
◆ Full Real-time Display
◆ Auto/Electri Focus
◆ Real-time transmission of pictures and infrared Videos
