600TVL 4CH DVR Kit
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Main Processor: | High Performance Embedded Microprocessor | Operation System: | Embedded Linux OS |
|---|---|---|---|
| Signal System: | PAL/NTSC | Color/Material: | Black/ Aluminium Alloy |
| Application: | Outdoor, IP66 Protect Level, Available Work Environment Like School, Park, Shop Etc | Support: | Support Multi OSD Language |
| Highlight: | video security system,dvr camera kit |
||
600TVL 4CH DVR Kit Of IR Outdoor Cameras / Mobile Phone Monitor
Quick details
1. Alarm: 4-channel relay input,1- channel relay output
2. H.264 4-ch video, 4-ch audio, with PTZ & alarm
3. 960H 4 channel DVR,4pcs 600TVL CMOS waterproof outdoor cameras
4. 1/4-ch separate video display and compression, video simultaneously
5.H.264 video compression format
6.Support Multi OSD Language
Description:

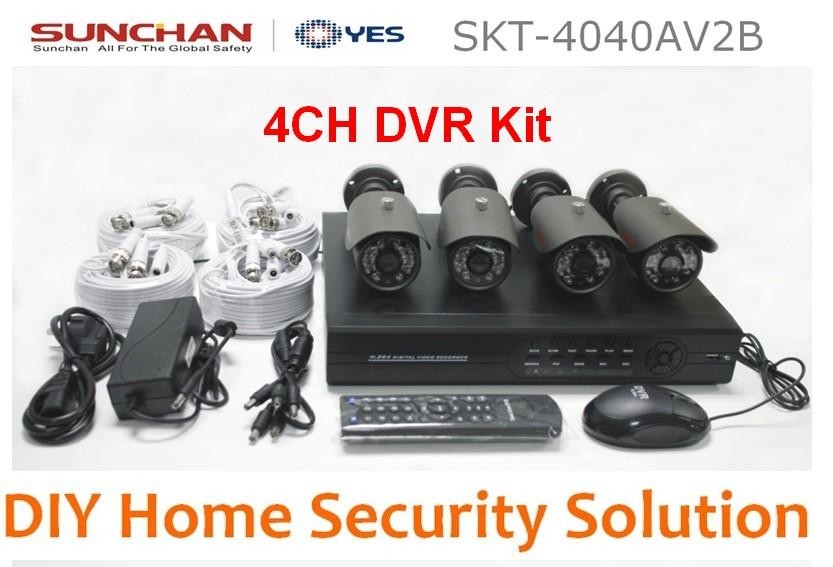

DVR KIT= 1pcs H.264 DVR + 4pcs CMOS Metal Camera + 4pcs 20M Cable + 1pcs 1 to 4 way splitter +1pcs DC 12V 5A adaptor
1. H.264 4-ch video, 4-ch audio, with PTZ & alarm
2. Support SATA HardDisk, Mouse, with VGA, USB, network, RS485 PTZ controll, IE browse
3. 4-ch D1/CIF Full real time,PAL: 100FPS NTSC:120FPS
4. 1/4-ch separate video display and compression, video simultaneously
5. 4-CH Audio input ,1CH Audio output;
6. Alarm: 4-channel relay input,1- channel relay output
7. Support TCP/IP protocal, PPPOE, DDNS, USB backup;
8. Support Network and mobile remotely monitoring such as iPhone, Blackberry, Android, Symbian and Windows mobile,support 3G dial up and WIFI module by USB 2.0 port
9. support 4ch D1/CIF realtime recording, 4ch CIF realtime playback & 1ch D1
+3 ch CIF realtime playback;
10. Support RS485 PTZ controll
11. Language: Multi OSD Language

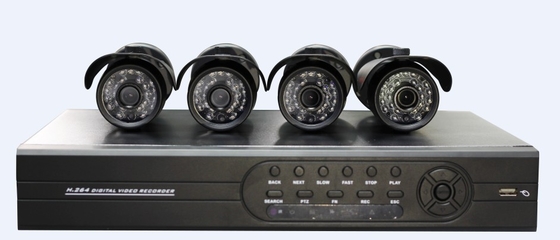

Product picture:
Specifications:
|
Model |
DKIT-1 |
|
Main Processor |
High Performance Embedded Microprocessor |
|
Operation System |
Embedded Linux OS |
|
Signal System |
PAL/NTSC |
|
System Resource |
Recording, Playback, Remote Access |
|
Operation Interface |
Mouse, Front Panel, Remote Control |
|
Video Split |
1 / 4 Split Display |
|
Video Resolution |
D1/CIF |
|
Video Playback Resolution |
D1 / HD1 / CIF |
|
Bit rate Control |
Dual stream |
|
Image Control |
6 Levels |
|
Recording Speed |
PAL: 25fps/channel, NTSC: 30fps/channel |
|
Motion Detection |
Configurable detection areas (22 × 18 blocks) and Sensitivity |
|
Audio Compression |
G.711 |
|
Recording Priority |
Manual > Alarm > Motion Detection > Schedule |
|
Local Playback |
4 channel CIF synchronous playback or 1ch D1 +3 ch CIF realtime playback |
|
Playback Search |
Date, Time, Event, Channel |
|
Video Storage |
Local HDD, USB HDD, Network |
|
Backup Mode |
Local HDD, USB HDD, Network |
|
Video Input |
4 channel BNC |
|
Video Output |
1 channel BNC, 1 channel VGA (800×600 1024×768 1280x1024 optional) |
|
Audio Input |
4 channel RCA |
|
Two-way audio Input |
1 channel RCA |
|
Audio Output |
1 channel RCA |
|
Alarm Input |
4 channel relay input |
|
Alarm Output |
1 channel relay output (30V DC 2A , 125V AC 1A ) |
|
Ethernet Interface |
RJ45 10M / 100M Base-TX |
|
PTZ Interface |
1 x RS485 |
|
USB Interface |
2 x USB2.0 |
|
HDD/SATA Interface |
1 x SATA |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
<15W (HDD not included) |
|
Working Temperature |
-10℃ ~ + 55℃ |
|
Working Humidity |
10% ～ 90% RH |
|
Atmosphere Pressure |
86kpa ～ 106kpa |
|
Dimensions |
300(L)x270(W)x50(H)mm |
|
Weight |
1.8Kg (HDD not included) |
|
Mounting |
Desktop Mount |
|
Model: |
E-850M |
|
|
VIDEO |
||
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
|
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
|
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
|
Scanning System |
2:1 interlace |
|
|
Synchronization |
Internal |
|
|
Frequency |
H:15.625KHZ/V:50HZ |
|
|
Horizontal Resolution |
Color:600TVL |
|
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
|
|
S/N Ratio |
63.8 dB(AGC Off) |
|
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|
|
LENS |
||
|
Focal Length |
3.6mm |
|
|
Max.Aperture Ratio |
1:F1.6 |
|
|
Angular Field of View |
D:90°/H:68°/V:50° |
|
|
Focus Control |
manual |
|
|
Lens Type |
fixed iris |
|
|
OPERATIONAL |
||
|
Gama Correction |
R0.15 |
|
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|
|
BLC |
Super Back Light Compensation |
|
|
Distance |
15M(850nm IR LED:23ea) |
|
|
IR Cut fliter |
Yes |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|
|
ELECTRICAL |
||
|
Input Voltage/Current |
DC12V +10% |
|
|
Power Consumption |
750mA |
|
|
Adapter Requirement |
DC12V 1000mA |
|
|
MECHANICAL |
||
|
Color/Material |
black/ Aluminium alloy |
|
|
Bracket |
All-Oriented Bracket |
|
|
Dimensions(W×H×D) |
180.7×62×62mm |
|
|
Net Weight |
0.5kg |
|
SUNCHAN Advantages
- 21 Years professional security camera experience
- 1 Year quality warrenty
- Deliver time Guarantee
- TOP 20 Leader in security camera area in China
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.
