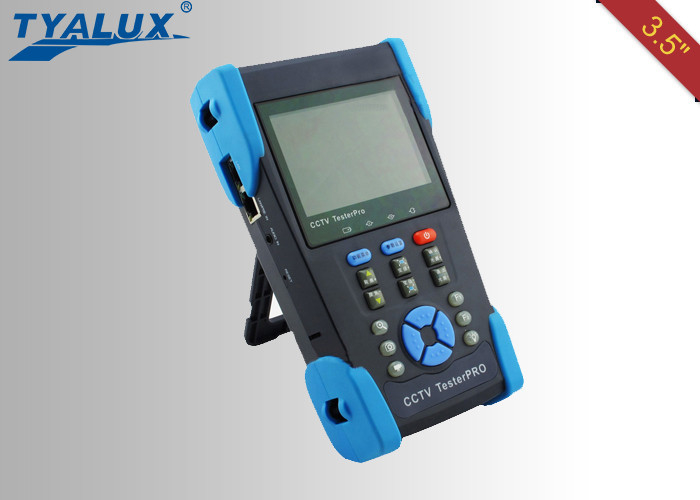

3.5 inch IP / Analog Camera IPC Tester PTZ Wire Tracker UPT Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Cctv Tester | Signal Mode: | NTSC/PAL |
|---|---|---|---|
| Size Of Panel: | 3.5inch | Power Adapt: | DC 5V(1.5A) |
| Battery: | Built-in 3.7V Li Battery | Power Output: | Out DC 12V 1A Power To Camera |
| High Light: | security camera tester,cctv camera tester |
||
CCTV Tester IP/Analog Camera Testing PTZ Wire tracker UPT Cable 3.5'' LCD Screen
Description:
1: 3.5 inch full-view TFT-LCD, 480(RGB)x320
2: Low consumption, working for 11 hours
3: OSD menu, English, Chinese and other languages optional
4: LCD screen brightness/contrast/color Saturation adjustable
5: Automatically identify and adapt the video mode of NTSC and PAL
6: Enhanced color-bar generator, Working by receiving the video color bar to test the video channel whether transmit normally
7: Moveable Micro SD
8: LED Lamp, convenient for operation in dark environment or at night
9: User-defined shortcut keys(F1 and F2)
Specifications:
|
Display |
3.5 inch Digital TFT-LCD,480×320 resolution |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Analog video signal |
BNC video in *1,BNC video ou*1 Pal/NTSC auto-change |
|
Video Output Mode |
1.0 Vp-p |
|
Video level test |
Video signals measured in IRE or mV |
|
Audio input test |
test if the audio of other equipments works normally |
|
PTZ controller |
Support RS232/RS485, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. Baudrate:600,1200,2400,4800,9600,19200,57600,115200bps |
|
Color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable. (red,green,blue,white and black color) |
|
UTP cable test |
Used for testing and recognizing 2 or above arbitrary cable wires get accessed, on which shown the connected cable of sequence and identifier No. |
|
Data Monitoring |
Capture and analyze the command data from controlling device |
|
Photograph,Video record and playback |
Snapshot,Video record (only for BNC signal),view the storage file in the SD card (support up to 32 G) |
|
10 x zoom of image |
10x zoom image display and video out |
|
Network testing |
IP scan:Find out the IP address of the connected IP camera or other network equipments IP address occupied test : Test if the IP address occupied |
|
PING testing |
Test if IP camera or other network equipment works normally, and check the IP address |
|
POE tester |
Display the power supply voltage and the cable connection status |
|
Port flicker |
Find the connected POE port quickly |
|
TDR Tester |
This function Only available for models with “H”. Breakpoint and short circuit location test BNC cable, telephone cable) |
|
Power out |
DC 12V output,Max.1A for camera |
|
Power adapter |
DC12V 1.5A |
|
Battery |
Built-in 3.7 V polymer li-ion battery,capacity of 3000mAh |
|
Rechargeable |
Working time lasts 11 hours after 3-4 hours charged. |
|
Operation setting |
English/Chinese and other languages OSD menu optional |
|
Auto off |
5-60 mins |
|
Working temperature |
subzero10 to 50℃ |
|
Working humidity |
30%~90% |
|
Demension/Weight |
194*112*48 mm / 0.6 kg |
Applications:
Find out the other end of the cable in security maintenance and network engineering
1, PTZ controller
2, CCTV system installation and maintenance
3, Dome camera and All in one camera testing
4, The CCTV transmitting channel testing
