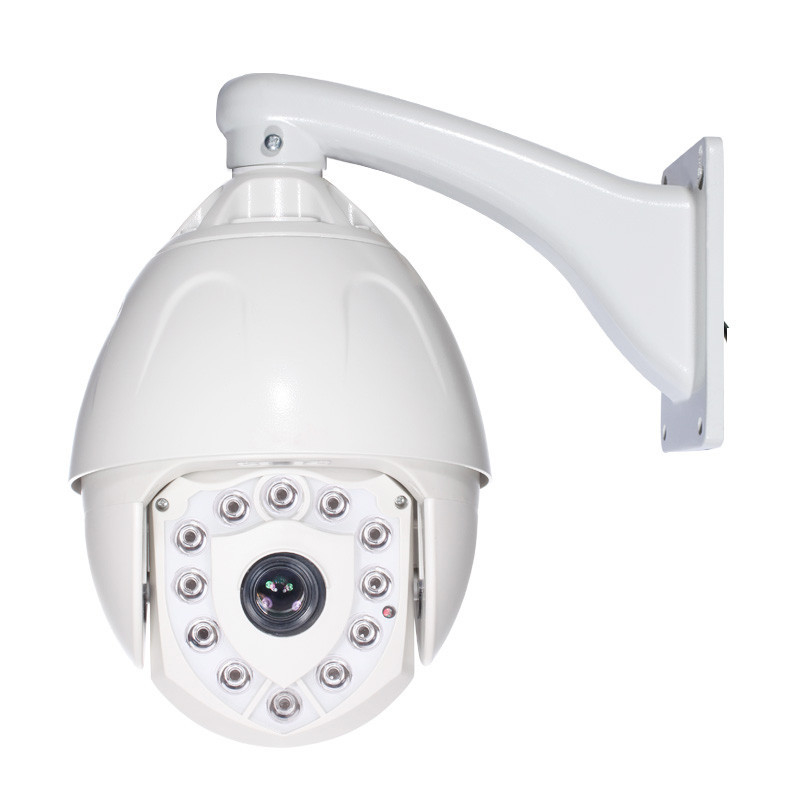

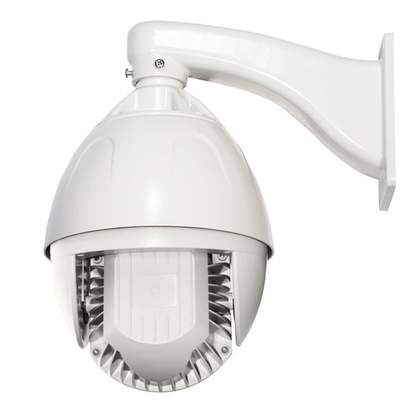

1.3MP IR High Speed Dome Camera 7Inch Aluminum Housing HD Vision
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Metal | Color: | White |
|---|---|---|---|
| IR: | 12pcs Ф22 Array LED Lights | IR Distance: | 150M |
| Lens: | 3.5 ~126mm | Optical Zoom: | 36X,auto Focus |
| Weight: | 6.0KG | Waterproof: | IP66 |
| Size: | 295mm×295mm×410mm | ||
| High Light: | HD AHD Camera,high definition cctv camera |
||
1.3MP IR High Speed Dome Camera 7Inch Aluminum Housing HD Vision
Quick Detail:
1. IR 150m AHD HIGH SPEED DOME
2. MODEL NO.:ZBS-AHD13X1536
3. Resolution:960P/720P
4. IR Distance:150m
Key Feature:
★ 7inch
★ Using 12pcs USA imported super low energy saving infrared lattice lights, night vision effect is improved
by 200%, saving 30%, effective night vision distance of 150 meters or more.
★ With high performance and low intensity of COMS image sensor, 1/3 "progressive scan CMOS; 36 X
optical zoom; 1.3Mega pixels; lens (f=3.5*-126mm); 1:1 progressive scan output; 720P (" 800TVL); day and night automatic color black conversion,
minimum illumination 0.001Lux
★ Similar to common 75-5 axis can be up to 500 meters of real-time million pixel level HD video transmission.
★ Infrared light and lens synchronization, according to multiple switching far and near light lens, the image
to achieve the ideal state.
★ The constant current circuit design, infrared light effective life of 40000 hours.
★ Precise motor drive, sensitive response, smooth operation, accuracy deviation less than 0.1 degrees
★ Grade IP66 waterproof, suitable for outdoor any environment
8The 360 degree continuous rotation, horizontal speed: 0.1 ° -250 ° / sec; vertical speed: 0.1° -130 °/ sec
★ Support multi group patrol, two cruise, 360 degrees from the cruise; support guarding position, guard
scan, memory power, power on action
★ Support the lightning protection, anti surge, anti surge
★ Widely used in airport, road, square, residential requirements such as high definition surveillance
occasions.
★ Optical zoom: 36X , day vision:1500meters
★ Pixels:1280*720P
★ Night Version:can see the face within 80m,can see the object within 100m
★ Auto IR-cut as per camera’s focus
★ 128 presets,8 cruise
★ Power recovery function,Guard Position
★ 360°continuous rotation,Horizontal rotation speed:0.1°-250°/s；Vertical rotation speed:0.1°-130°/s
★ Transparent part is glass,easily cleaning;
Specifications :
|
|
Image Sensor |
1/3" APTINA CMOS |
|
|
Effective Pixel |
1.3 Mega Pixel (1280X720) |
|
|
Signal system |
PAL/NTSC |
|
|
Frame rate |
50Hz:25fps(1280*720P) 60Hz 30Fps(1280*720) |
|
|
Electronic shutter |
1/1~1/30000sec |
|
|
Horizontal Resolution |
≥800 TV lines |
|
|
Video Format |
25 fps@1280*720;25fps@640*480; 25fps@288*192 |
|
|
Min. illumination |
0.05 Lux@F1.6(color)； 0.005Lux@1.6(black & white)； IR mode: OLux |
|
|
Signal to noise ratio |
≥50db (AGC Off,Weight ON) |
|
|
Backlight compensation |
ON/OFF |
|
|
Low illumination |
Support |
|
|
White balance |
Auto |
|
|
3D noise reduction |
Support |
|
|
Picture inversion |
Flip/The mirror |
|
|
Optical Zoom |
36X,auto focus |
|
|
Focus Length |
3.5 ~126mm |
|
|
Visual Angle |
55.4°~2.9° |
|
|
Day & Night mode |
Auto IR-CUT |
|
PTZ Parameter |
Rotation Speed |
Horizontal 0.1°~250°/S； Vertical 0.1°-130°/S |
|
|
Preset Speed |
Horizontal 40°/S; Vertical 20°/S |
|
|
Rotation Range |
Horizontal 0°~360° unlimited rotation; Vertical 0°~90° auto 180° reversal |
|
|
A-B two points scan |
Random setting |
|
|
A-B two points scan speed |
Fast speed/Middle speed/ Low speed, speed adjustable |
|
|
Cruise No. |
8 groups(8 presets each group) |
|
|
Presets |
128 |
|
|
Power Memory |
Support |
|
|
Guard Position |
Support |
|
IR light |
IR lights No. |
Ф22 12pcs Array LED Lights,Effective distance up to 150m |
|
|
Auto Control IR light |
Auto IR-cut as per camera’s focus |
|
Video Audio Alarm |
Video Compression Format |
H .264.; |
|
|
Video Stream |
Main Stream:720P,Sub-stream:CIF |
|
|
Image Size |
1280*720 |
|
Spec. |
Product Size |
7inch |
|
|
Shell |
Aluminum Alloy |
|
|
Bracket |
Aluminum Alloy |
|
|
power supply |
DC12V5A (American /europe/Britain) |
|
|
Power |
40W(without heater)/70W(with heater) |
|
|
Working Temperature |
-25°C~70°C(without heater) /-50°C~70°C(with heater) |
|
|
Install Method |
Wall and Ceiling ( standard is wall ) |
|
Packing
|
Size |
295mm×295mm×410mm |
|
|
Weight |
6.0Kg |
|
|
Size (Two package to one carton) |
610mm×315mm×430mm |
|
|
Weight (Two package to one carton) |
13.0Kg |
