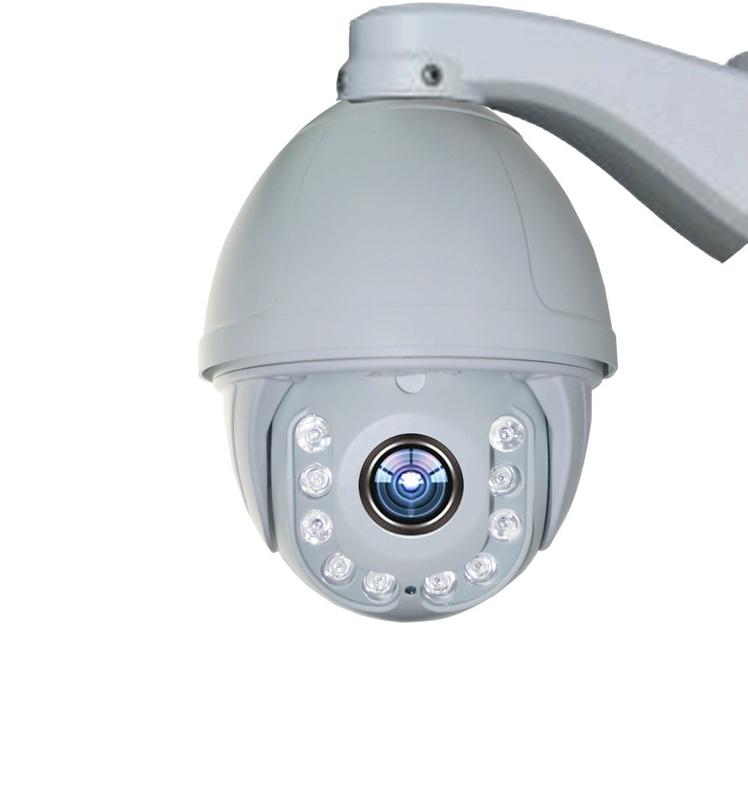

1.3 Megapixel High Speed Dome Camera Outdoor With 150M IR Distance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Sensor: | SONY CCD 1/2.9 | Effective Pixel: | 1.3M |
|---|---|---|---|
| Resolution: | 1280H*960V | IR LED: | 22*22=6,Ф16=5 |
| IR Illumination Distance: | 150m | Horizontal Rotation Range Erface: | 360° |
| High Light: | cctv dome camera,high speed dome camera |
||
18x Zoom 1.3 Megapixel , Sony CCD High Speed Dome Camera With 150M IR Distance
Feature:
-
PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor;
-
1.3 Megapixel, 1/3 CCD;
-
18x optical zoom;
-
IR distance 150M; Multiple languages for OSD menu, English, Spanish etc.;
-
Support ambient light detection, IR Illumination On 1-15 grade selectable;
-
Dome ID, baud rate, communication protocol can be set via the controller;
-
Supported Protocols : Pelco-D/P; Others on special request;
-
7" Double layer metal body construction, waterproof IP 66;
-
Optional IP module (built in provision);
-
Optional , 4 Alarm inputs and 2 alarm outputs.
-
TV System: PAL/NTSC
Specification:
|
Camera |
|||
|
Sensor |
SONY 1/2.9 |
||
|
Effective Pixel |
1.3M |
||
|
Resolution |
1280H*960V |
||
|
Output Pixel |
1280Hx960V/25fps 1280Hx960V/30fps 1280Hx960V/50fps |
||
|
Min. Illumination |
0.5 lux (F1.6, 50 IRE, ICR OFF), 0.095 lux (F1.6, 50 IRE, ICR ON) |
||
|
AGC Control |
Manual/Auto |
||
|
S/N Rate |
≧50db |
||
|
White Balance |
Manual/Auto |
||
|
Privacy Mask |
Support |
||
|
IR Illumination Distance |
150m |
||
|
IR LED |
22*22=6,Ф16=5 |
||
|
Camera module control interface |
SONY VISCA(Signal level 3.3V), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s stop bit: 1 |
||
|
HITACHI COMMAND (Signal level 3.3V), baud rate: 4.8Kb/s, 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 57.6Kb/s stop bit: 1 |
|||
|
IR-cut |
Manual/Auto |
||
|
Lens |
|||
|
Focus Distance |
4.7±5%~84.6±5%mm |
||
|
Optical Zoom |
18* |
||
|
Aperture Value |
F1.6~F2.7 |
||
|
View of Angle |
D : WIDE 68.5º±5% TELE 4.2º±5% |
||
|
Function |
|||
|
Communications Protocol |
TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP |
||
|
Storage (optional) |
One SD/SDHC card |
||
|
Software Control |
IE, CMS, Management Platform |
||
|
Mobile View(optional) |
Support Windows, Symbian, iPhone platform smartphone |
||
|
Horizontal Rotation Speed |
200°/s |
||
|
Horizontal Rotation Range |
360° |
||
|
Tilt Rotation Speed |
100º/s |
||
|
Tilt Rotation Range |
90° |
||
|
Auto Flip |
Horizontal 180°, Vertical 180° |
|
|
|
Auto Control IR LED |
PWM |
||
|
A-B Scan |
User programmable |
||
|
A-B Scan Speed |
0-64 levels setting available |
||
|
Dwell Preset |
2-60s interval available |
||
|
Preset Points |
220 |
||
|
Go to Preset Speed |
01-64 levels available |
||
|
Guard Tours |
4 groups |
||
|
Guard Points |
Max.16 points, dwell time user selectable |
||
|
PWR On Action |
Memory/Pattern 1/Tour 1/360° scan/A-B scan/Preset 1-8/None |
||
|
Park Time |
0-60mins available |
||
|
Pattern Scan |
4 pcs |
||
|
Pattern Scan Record |
Max.15 minutes, max.512 commands |
||
|
3D Location |
Support (DH-SD1) |
||
|
Time Scheduling Function |
8 tasks |
||
|
Communication |
RS485 |
||
|
Baud Rate |
1200/2400/4800/9600bps |
||
|
General |
|||
|
Operating Temperature |
-40°- +60° |
||
|
Operating Humidity |
≤95% Non Condensing |
||
|
Heater & Blower |
Auto temperature control |
||
|
Power Supply |
AC 24V(option) / DC 12V(option) |
||
|
Power Consumption |
≤ 20W |
||
|
Lightning Protection |
Transient voltage 6000V |
||
