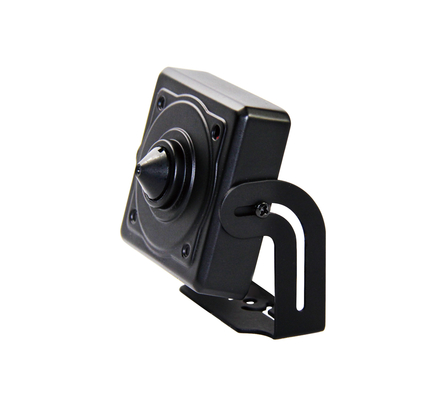

1080P HD SDI Mini Hidden Camera for ATM, 3.7MM Pinhole lens

Key Features:

•   1/3" Panasonic CMOS (MN34041PL)
•   FULL HD Resolution
•   1080 (1920 x 1080p) @ 30fps
•   TV out (BNC) with NTSC/PAL selectable
•   2D+3D DNR, D-WDR, HLC, OSD
•   Dual Output-Megapixel HD CCTV (BNC)&SD CCTV (BNC)Out
•   3.7mm pinhole lens
•   DC12V

                        Model NO.

LS-VSDI300PH

Camera

Image Sensor

1/3” Panasonic COMS (MN34041PL)

DSP

Eyenix (EN773A)

Image Resolution

PAL: 25fps@1080P(1920×1080); NTSC: 30fps@1080P(1920×1080)

Effective Pixels

1920(H) x 1080 (V)

TV System

PAL/NTSC

Electronic Shutter

Auto / Manual / Flicker

Sync System

Internal

Usable Illumination

Color: 1.0Lux/F1. 4, B/W: 0.5Lux /F1. 4; 0Lux /F1.4(IR on)

S/N Ratio

≥50dB

Scanning System

Progressive Scan

Video Output Mode

1CH HD-SDI High-definition Video (1080P or 720P)

Video Output Level

HD-SDI /(1.0 Vp-p 75Ω,Composite)

Lens

Focus Length

3.7mm megapixels Pinhole lens

Focus Control

Manual

Lens Type

Manual

Pixels

2M Pixels

Auto Iris Support

NO

Camera Features

Day/Night

Auto (ICR) / Color / B&W

OSD Menu Language

English,Simple Chinese, Traditional Chinese, Japanese, Korea

Wide Dynamic Range

WDR

Defog

YES

Backlight Compensation

YES

BLC

YES

White Balance

AUTO / Manual

Gain Control

Auto / Manual

Noise Reduction

Smart NR

Privacy Masking

8 Areas

Digital Zoom

X8

Sense Up

X8

Picture Adjustment

YES, Mirror / Flip / Brightness / Sharpness

UTC Support

NO

General

Vandalproof Housing

NO

Lens Angle Adjustment

YES, 3-Axis Bracket Built-in

Dual Voltage

NO

IR Cut Filter

YES

Heater

NO

Operation    Temperature

-10℃~ +50℃RH95% Max

Storage Temperature

-20℃~ +60℃RH95% Max

Power Source

DC12V±10%, 500mA

Dimension

42x42mm

Weight

220g
