100m IR High Speed Dome Camera / PTZ Dome Security Cameras 36x12 for Surveillance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Camera Module: | Fcb-ex1010 | Optical Zoom: | 36 |
|---|---|---|---|
| Digital Zoom: | 12 | IR Distance: | 100m |
| High Light: | ir speed dome camera,ptz dome camera |
||

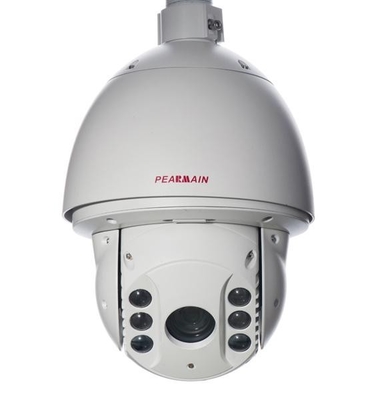

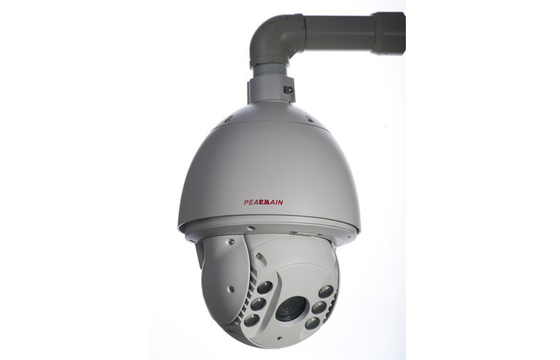

PE3032OS5IR IR High Speed Dome Camera , Pearmain IR PTZ Camera, 100m IR, 36x12
Quick Detail:
100m IR distance
Automatically identify PEAMRAIN protocol or PELCO D/P protocol
Automatically identify SANYO, SONY, HITACHI, CNB series etc. camera module.
Powerful OSD menu for setup of Programmable Functions
Built-in linear power for anti-surge and anti-Lightning protection
Soft address to set
On-Screen display: Compass, Pan, Tilt, Zoom ratio.
IP66 waterproof for outdoor applications
Description:

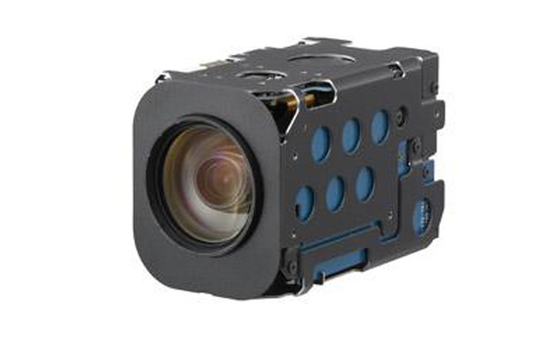

PE3032OS5-IR IR Outdoor high speed dome, is with Sony original FCB-EX1010 module,36x12 day/night,530TVL,Wide Dynamic Range, IP66 waterproof double-shell of aluminum, multiple bracket for applications. 100m IR distance.
Specifications
|
Address |
0~255 |
|
Pan range |
360°Continue |
|
Tilt range |
0°~90° Flip |
|
Manual speed Pan |
0.05~240°/Sec |
|
Manual speed Tilt |
0.05~180°/Sec |
|
Preset speed |
300°/Sec |
|
Preset accuracy |
±0.50° |
|
Preset |
255 |
|
Remote firmware updating and setup |
to update firmware by RS485, to set ID by RS485 |
|
Cruise Tours |
8 Programmable(Dwell time speed preset point) |
|
Speed setup for cruise tour |
Yes |
|
Auto Scan |
1 Programmable (355° scan ) |
|
Time adjustment |
to adjust Time by broadcasting |
|
Integrate multi-protocol |
Pelco_D/P, PEARMAIN or OEM protocol |
|
Protocol Automatic identify |
Pelco_D/P, PEARMAIN |
|
Broadcasting address |
Yes |
|
anti-surge and anti-Lightning protection |
Yes, Power side:4KV, Video and data side: 2KV |
|
OSD menu operation |
Yes |
|
Supporting camera |
Automatic identify(Sony, Hitachi,etc.) |
|
Camera menu operation |
Yes |
|
Camera character programming |
20 character |
|
Privacy masking |
Yes |
|
Ingress Protection IP66 |
Yes |
|
Operating Temperature |
–40℃~70℃ |
|
Humidity |
0%~90% (Non condensing) |
|
Heater operate |
(-5)℃ on +5℃ off |
|
Power |
24VAC±25%,60Hz/50Hz |
|
Consumption |
IR off 15W IR on 35W |
|
communication |
RS485 (+/-) |
|
Connection |
BNC cable |
|
Weight |
4.5kgs (without bracket) |
Applications:
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. to offer video to DVR/matrix system
