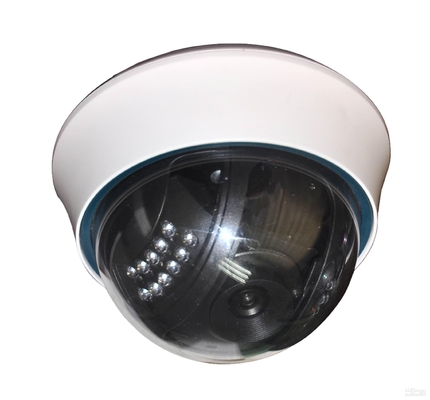

Low illumination P2P HD H.264 IP CCTV Network Camera IR 30M , Auto White Balance
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | network security camera,hd cctv cameras |
||
|---|---|---|---|
Low illumination P2P HD H.264 IP CCTV Network Camera IR 30M , Auto White Balance
Specifications
*ip cctv camera
*Low illumination,IR 30M
*Web browsers&mobile phone view
*Motion detection email alarm
1.3 Megapixel/3 Megapixel/5 Megapixel,Low illumination,ip cctv camera
-
1.3 /3 /5 megapixel dome ip camera
-
3-axis rotating internal bracket
-
With IR-Cut filter
-
AWB,AE, AGC,AWB,etc.
-
Built-in mini TF memory card slot, support 32G Max.
-
Two-way audio talkback.
-
Privacy mask, motion detection, sensor alarm, email alert .
-
H.264 compression format.
-
Multi-user remote viewing via CMS, Web browsers, IOS & Android mobile phones.
-
Automatic connection recovery after power failure or network interruption.
-
HTTP,TCP/IP,UDP,FTP,SMTP,PPPoE,DDNS,DNS,DHCP,NTP,RTSP,UPNP,etc.
|
Model No. |
GR-ND2331PE |
GR-ND2331PL |
GR-ND4331PW |
GR-ND6331PL |
|
|
General Function |
Feature |
Lite version |
Low Illumination |
Wide Dynamic Range |
HD-Low Illumination |
|
CMOS Type |
Aptina Imaging CMOS |
Aptina Imaging CMOS |
Aptina Imaging CMOS |
||
|
CMOS Model |
1/3″ 130 Mega Pixel |
1/3″ 300 Mega Pixel |
1/2.5″ 500MP |
||
|
HD Output |
960P:1280×960P |
1080P:2048×1536P |
1080P:2560×1920P |
||
|
Image Adjustable |
720P:1280×720P |
720P:1280×720P |
720P:1280×720P |
||
|
|
D1:640×480 |
D1:640×480 |
D1:640×480 |
||
|
Illumination |
Color: 0.1Lux BW:0.01Lux(F1.2,AGC ON) |
Color:0.6Lux BW:0.08Lux(F1.2,AGC ON) |
|||
|
IR Distance |
30M(36pcs IR led) |
40M(42pcs black IR led) |
|||
|
Shutter Speed |
1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable |
||||
|
Lens |
Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens |
||||
|
Exposure Control |
DSP Auto Adjust |
||||
|
AGC & WB |
AGC:Auto(high, media, low ) , White Balance:Auto,Close |
||||
|
S/N Ratio |
≥50dB |
||||
|
Network function |
Network Steadiness |
Auto Reconnect, Register, UPNP, HB Display, Synchronization |
|||
|
Support |
Support ONVIF 2.0, PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS etc. |
||||
|
Agreement |
|||||
|
Dual Stream |
Dual Stream Transfer(H.264,CBR/VBR Adjustable |
||||
|
Main Stream(1M~8Mbps)With Local Skim, SD Card etc. |
|||||
|
Sub-Stream(0.5MK~2Mbps)With Network Transfer. |
|||||
|
upgrade,maintenance |
Support Remote Upgrade, With Password Protect. |
||||
|
Wireless |
Without |
Adapting P2P Intelligence Mobile Phone Visit |
|||
|
Special function |
Optional Function |
Non |
Charge for Optional, Adapting TF Card Storage |
||
|
Mouse Zoom |
Click Any Rectangle Area And Zoom In or Zoom Out On the Image by Mouse |
||||
|
3-Axis adjustment |
Built in 3-Axis bracket, Adjust the Surveillance Angle at Any Position Easily |
||||
|
Plastic case |
ROSH high quality Plastic Cover ,"0°warp ray rate" high strength acrylic gauge cover |
||||
|
Smart alarm |
Motion detect,Video Shelter,I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal. |
||||
|
Video efficiency |
Effective Pixel |
1280*720 |
1280*1080 |
||
|
Video Frame Rate |
50Hz/60Hz: 25fps,30fps,50fps,60fps etc |
||||
|
Image Capture |
JPEG for local storage |
||||
|
Image Setting |
Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. |
||||
|
Image rolling-over |
Level Transposition, Turn Up-Side Down, Easy for Install & Adjust. |
||||
|
Audio |
Audio Encoding |
Non |
With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed |
||
|
Audio Function |
Non |
Audio Broadcast Audi Playback |
|||
|
Mount Standard |
Power Mount |
DC Female Connector,5.5×2.1mm |
|||
|
Network Mount |
1c h 10M/100M Ethernet Mouth, RJ45 Mount |
||||
|
Video Output |
1ch Local Analog Output, BNC Interface. |
||||
|
Alarm Mount |
Non |
1ch Alarm Input 1ch Alarm Output |
|||
|
Audio Mount |
Non |
1ch Audio Input 1ch Audio Output |
|||
|
RS485 Mount |
Non |
1ch RS485 Mount |
|||
|
Other standard |
Working Environment |
Environment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90% |
|||
|
Power Consumption |
DC 12V±5% ,IR Led on: 5W |
||||
|
Size(mm) |
Products Size: 140 × 140 × 120 mm Carton Size: 580 × 430 × 380 mm(36 CTN) |
||||
|
Weight |
Net Weight: 0.45 Kg~0.50 Kg Gross Weight:16.20 Kg~18.00 Kg(36 CTN) |
||||
