Product Details:
Payment & Shipping Terms:
|
High Light: | ir dome cctv camera,home cctv camera |
---|

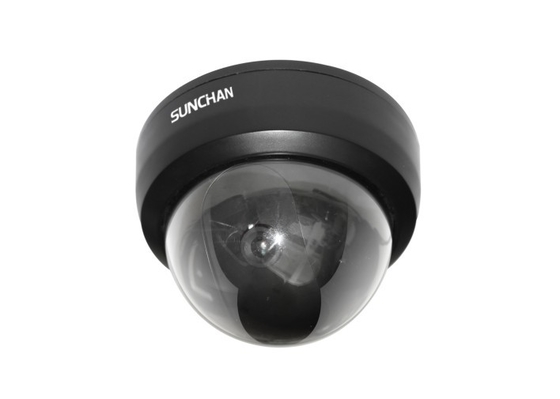

Black 0.1Lux 10M IR Distance Dome CCTV Camera For Office , 3 Axis Bracket DM-839M
Quick details
Black Plastic Dome Camera
3 Axis Bracket inside the camera
manual Focus Control
10M IR distance
for office, warehouse, convenient store
Description:
Plastic Dome Camera, CCTV CMOS Camera,600TVL High Definition
Super Backlight Compensation
3 Axis Bracket inside the camera
Applications:
Indoor with enough light, like office, warehouse, convenient store
Specifications:
Model: |
DM-839M |
VIDEO |
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
Scanning System |
2:1 interlace |
Synchronization |
Internal |
Frequency |
H:15.625KHZ/V:50HZ |
Horizontal Resolution |
Color:600TVL |
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
S/N Ratio |
63.8 dB(AGC Off) |
Video Output |
CVBS:1.0Vp-p/75Ω composite |
LENS |
|
Focal Length |
3.6mm |
Max.Aperture Ratio |
1:F1.6 |
Angular Field of View |
D:90°/H:68°/V:50° |
Focus Control |
manual |
Lens Type |
fixed iris |
OPERATIONAL |
|
Gama Correction |
R0.15 |
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
BLC |
Super Back Light Compensation |
Distance |
10M |
ENVIRONMENTAL |
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
ELECTRICAL |
|
Input Voltage/Current |
DC12V +10% |
Power Consumption |
750mA |
Adapter Requirement |
DC12V 1000mA |
MECHANICAL |
|
Color/Material |
Black/plastic |
Bracket |
3 axis bracket inside |
Dimensions(W×H×D) |
127.2×90.6mm |
Net Weight |
0.3kg |
Competitive Advantage:
600TVL with high performance
SUNCHAN Advantage
Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
OEM/ODM service:
We can provide OEM/ODM to customers.
And put their own LOGO in sticker and camera, also with own design color box like below:
Get to know your new partner: SUNCHAN
Company profile:
Certifications and honors:
Our markets and ambitions:
SUNCHAN exhibitions and sales team:
SUNCHAN engineering projects:
SUNCHAN Product Warranty:
We offer 2 years warranty for SUNCHAN CMOS series of CCTV cameras and 1 year warranty for promotion products.And we promise the product quality in the leading place in the industry as we always did!
