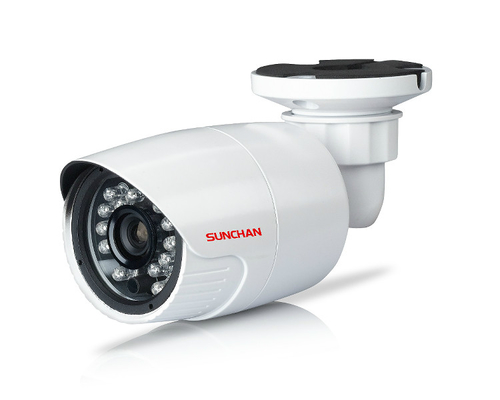

720TVL 20M IR Distance CMOS Outdoor Indoor CCTV Camera , Fixed Iris Len SC-851M3

Large Image : 720TVL 20M IR Distance CMOS Outdoor Indoor CCTV Camera , Fixed Iris Len SC-851M3 Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	DEBFFENG
Certification:	ISO
Model Number:	E-7106M3

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	110,000pcs per month

Contact Now

Detailed Product Description

High Light:

wireless ip network camera

internet security camera

720TVL 20M IR Distance CMOS Outdoor Indoor CCTV Camera , Fixed Iris Len SC-851M3

Quick details

IR Indoor and Outdoor Camera

Super Backlight Compensation

IR Distance 20M

fixed iris Lens

Ivory/ Aluminium alloy

Applications:

Outdoor , like office, warehouse, convenient store

Description:

IR Indoor and Outdoor Camera, CCTV CMOS Camera,720TVL High Definition

Super Backlight Compensation

3.6mm fixed lens

Specifications:

Model:	SC-851M3
VIDEO
Imaging Device	1/3" Korea Pixel Plus CMOS
Total Pixels	PAL:795(H)×596(V) NTSC:811(H)×508(V)
Effective Pixels	PAL:752(H)×582(V) NTSC:768(H)×494(V)
Scanning System	2:1 interlace
Synchronization	Internal
Frequency	H:15.625KHZ/V:50HZ
Horizontal Resolution	Color:720TVL
Min. Illumination	Color:0.5Lux, B/W: 0.1Lux (IR Off)
S/N Ratio	63.8 dB(AGC Off)
Video Output	CVBS:1.0Vp-p/75Ω composite
LENS
Focal Length	3.6mm
Max.Aperture Ratio	1:F1.6
Angular Field of View	D:90°/H:68°/V:50°
Focus Control	manual
Lens Type	fixed iris
OPERATIONAL
Gama Correction	R0.15
Electronic Shutter Speed	PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec
BLC	Super Back Light Compensation
Distance	20M
ENVIRONMENTAL
Operating Temperature/Humidity	-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH
ELECTRICAL
Input Voltage/Current	DC12V +10%
Power Consumption	750mA
Adapter Requirement	DC12V 1000mA
MECHANICAL
Color/Material	Ivory/ Aluminium alloy
Dimensions(W×H×D)	171.56464mm
Net Weight	0.6kg
