Waterproof Motion Detection 4CH Channel DVR H.264 Security 4 Out/In CCTV Vision Camera System 500G
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | video security system,dvr camera kit |
||
|---|---|---|---|
Waterproof Motion Detection 4CH Channel DVR H.264 Security 4 Out/In CCTV Vision Camera System 500G
Quick details
1. 1/4-ch separate video display and compression, video simultaneously
2. 4-CH Audio input ,1CH Audio output;
3. Alarm: 4-channel relay input,1- channel relay output
4. Support TCP/IP protocal, PPPOE, DDNS, USB backup;
Description:

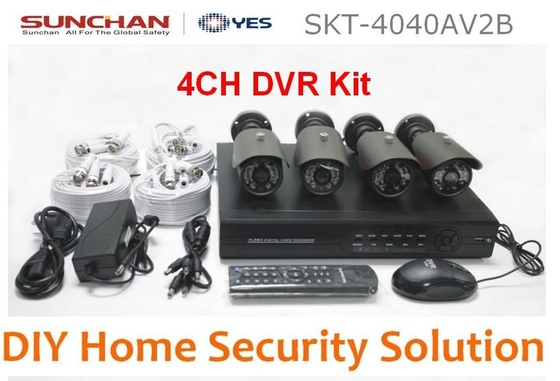

DVR KIT= 1pcs H.264 DVR + 4pcs CMOS Metal Camera + 4pcs 20M Cable + 1pcs 1 to 4 way splitter +1pcs DC 12V 5A adaptor
1. H.264 4-ch video, 4-ch audio, with PTZ & alarm
2. Support SATA HardDisk, Mouse, with VGA, USB, network, RS485 PTZ controll, IE browse
3. 4-ch D1/CIF Full real time,PAL: 100FPS NTSC:120FPS
4. 1/4-ch separate video display and compression, video simultaneously
5. 4-CH Audio input ,1CH Audio output;
6. Alarm: 4-channel relay input,1- channel relay output
7. Support TCP/IP protocal, PPPOE, DDNS, USB backup;
8. Support Network and mobile remotely monitoring such as iPhone, Blackberry, Android, Symbian and Windows mobile,support 3G dial up and WIFI module by USB 2.0 port
9. support 4ch D1/CIF realtime recording, 4ch CIF realtime playback & 1ch D1
+3 ch CIF realtime playback;
10. Recording bitstream/frame adjustable, D1, HD1, CIF
11. Support RS485 PTZ controll
12. Language: Multi OSD Language
13. support 1 pieces of 2TB SATA HDD
Be connected and informed at all times
This camera security system allows you to view your footage,no matter the time or location.Access your DVR’s footage over the internet, or directly from your Android,Symbian Windows mobile,Ipad& Iphone and blackberry.
Advanced motion detection recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events.You can even ensure that false alarms are avoided by setting the motion detection mask to block area with constant movement.

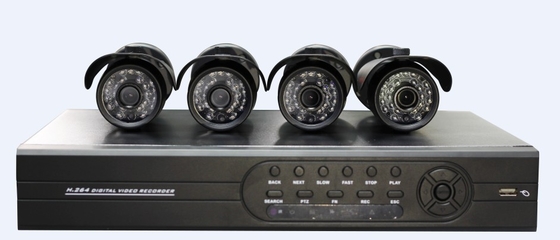

Product picture:
Specifications:
|
Model |
DKIT-1 |
|
Main Processor |
High Performance Embedded Microprocessor |
|
Operation System |
Embedded Linux OS |
|
Signal System |
PAL/NTSC |
|
System Resource |
Recording, Playback, Remote Access |
|
Operation Interface |
Mouse, Front Panel, Remote Control |
|
Video Split |
1 / 4 Split Display |
|
Video Resolution |
D1/CIF |
|
Video Playback Resolution |
D1 / HD1 / CIF |
|
Bit rate Control |
Dual stream |
|
Image Control |
6 Levels |
|
Recording Speed |
PAL: 25fps/channel, NTSC: 30fps/channel |
|
Motion Detection |
Configurable detection areas (22 × 18 blocks) and Sensitivity |
|
Audio Compression |
G.711 |
|
Recording Priority |
Manual > Alarm > Motion Detection > Schedule |
|
Local Playback |
4 channel CIF synchronous playback or 1ch D1 +3 ch CIF realtime playback |
|
Playback Search |
Date, Time, Event, Channel |
|
Video Storage |
Local HDD, USB HDD, Network |
|
Backup Mode |
Local HDD, USB HDD, Network |
|
Video Input |
4 channel BNC |
|
Video Output |
1 channel BNC, 1 channel VGA (800×600 1024×768 1280x1024 optional) |
|
Audio Input |
4 channel RCA |
|
Two-way audio Input |
1 channel RCA |
|
Audio Output |
1 channel RCA |
|
Alarm Input |
4 channel relay input |
|
Alarm Output |
1 channel relay output (30V DC 2A , 125V AC 1A ) |
|
Ethernet Interface |
RJ45 10M / 100M Base-TX |
|
PTZ Interface |
1 x RS485 |
|
USB Interface |
2 x USB2.0 |
|
HDD/SATA Interface |
1 x SATA |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
<15W (HDD not included) |
|
Working Temperature |
-10℃ ~ + 55℃ |
|
Working Humidity |
10% ～ 90% RH |
|
Atmosphere Pressure |
86kpa ～ 106kpa |
|
Dimensions |
300(L)x270(W)x50(H)mm |
|
Weight |
1.8Kg (HDD not included) |
|
Mounting |
Desktop Mount |
|
Model: |
E-850M |
|
|
VIDEO |
||
|
Imaging Device |
1/3" Korea Pixel Plus CMOS |
|
|
Total Pixels |
PAL:795(H)×596(V) NTSC:811(H)×508(V) |
|
|
Effective Pixels |
PAL:752(H)×582(V) NTSC:768(H)×494(V) |
|
|
Scanning System |
2:1 interlace |
|
|
Synchronization |
Internal |
|
|
Frequency |
H:15.625KHZ/V:50HZ |
|
|
Horizontal Resolution |
Color:600TVL |
|
|
Min. Illumination |
Color:0.5Lux, B/W: 0.1Lux (IR Off) |
|
|
S/N Ratio |
63.8 dB(AGC Off) |
|
|
Video Output |
CVBS:1.0Vp-p/75Ω composite |
|
|
LENS |
||
|
Focal Length |
3.6mm |
|
|
Max.Aperture Ratio |
1:F1.6 |
|
|
Angular Field of View |
D:90°/H:68°/V:50° |
|
|
Focus Control |
manual |
|
|
Lens Type |
fixed iris |
|
|
OPERATIONAL |
||
|
Gama Correction |
R0.15 |
|
|
Electronic Shutter Speed |
PAL:1/50~1/100,000sec,NTSC:1/60~1/100,000sec |
|
|
BLC |
Super Back Light Compensation |
|
|
Distance |
15M(850nm IR LED:23ea) |
|
|
IR Cut fliter |
Yes |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature/Humidity |
-10℃ - +50℃(-50°F~+122°F)/Less than 90% RH |
|
|
ELECTRICAL |
||
|
Input Voltage/Current |
DC12V +10% |
|
|
Power Consumption |
750mA |
|
|
Adapter Requirement |
DC12V 1000mA |
|
|
MECHANICAL |
||
|
Color/Material |
black/ Aluminium alloy |
|
|
Bracket |
All-Oriented Bracket |
|
|
Dimensions(W×H×D) |
180.7×62×62mm |
|
|
Net Weight |
0.5kg |
|
SUNCHAN Advantages
- 21 Years professional security camera experience
- 1 Year quality warrenty
- Deliver time Guarantee
- TOP 20 Leader in security camera area in China
Application:
Outdoor, IP66 protect level, available work environment like school, park, shop etc.

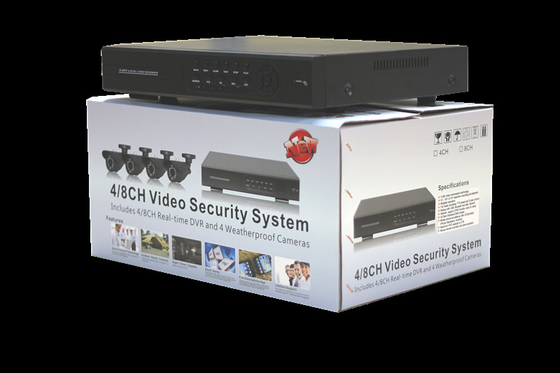

Package pictures:
We can provide elegant and simply color package box match with diifferent size and style cameras.
OEM/ODM service:
We can provide OEM/ODM to customer.
