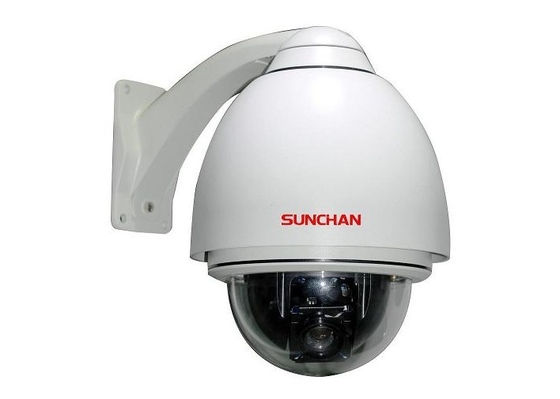

D1 H.264 12x Digital zoom Network Speed Dome Camera , 32Kbps - 4000Kbps EPC-HS203

Model

EPC-HS203DP2

Dome IP Camera

Image Sensor

1/3" Progressive Scan CCD

Effective Pixels

1296(H)x966(V)

Resolution

1280×720(720P)

Minimum Illumination

1.8Lux@F1.6(Color); 0.02Lux@F1.6 (B/W)

White Balance

ATW/Manual

Backlight Compensation

ON/OFF

Day/Night

Auto

WDR

ON/OFF

S/N Ratio

More than 50 dB`

Lens

18 x optical zoom(4.5-81mm); F=1.6(W)~F=2.8(T) 12 x digital zoom;

Horizontal Viewing Angle

55.2°(wide) - 3.2°(tele)

Pan&Tilt

Pan:0º~ 360º, Tilt:-90º ~0º  Pan speed: 0~300º/S  ;Tilt speed: 0~120º/S

Preset and cruise

128 preset position and 6 cruise position

Protection Classification

IP66

Frame Rate

1~30fps

Video /Audio

Video Compression

H.264/MJPEG

Resolution

720P,D1, Half D1

Video Stream

H.264, Bit-rate Range(32Kbps-4000Kbps)

Image Settings

Brightness, contrast, saturation, hue, Exposal control, AES(1/2 to 1/4,000 sec.), AGC, AWB, BLC, Privacy mask, Motion Detection;

Audio Compression

G.711

Audio Stream

Two-way audio, broadcast

Audio Input/Output

Mic input, headphone output

Audio Alarm

Support

Network

Ethernet

10/100 Mbps Ethernet RJ-45 port

Protocols

TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,PPPOE,FTP,SMTP,NTP,SNMP

Security

Multi-level user access with password protection

System Integration

IP Camera Hardware

High performance CPU, Flash 8M, DRAM 128M, OS Built-in Linux

View System requirement

OS: Microsoft Windows 2000/2003/XP/Vista/Win7

Browser: Internet Explorer 6.0 or above

Management Software

FREE software for monitoring and recording, support 1-100 channels

WEB Server

Support WEB browser, remote config/update, replay, record

Alarm port

One D/I and one D/O for external sensor and alarm

Alarm trigger

Video lost, motion detection, external input ,

Alarm Events

File upload via FTP, Email; Notification via Email, and TCP; External output activation; Local recording;

General

Connectors

RJ-45 10BASE-T/100BASE-TX, Power connector, Audio input/output

Operation Conditions

Temperature:-35℃-65℃; Humidity:<90%RH

Consumption

≤25W

Voltage

AC 24V 50/60Hz 1.7A

Weight

4.0 KG

Product Dimension (mm)

Φ219×262 mm
