Product Details:
Payment & Shipping Terms:
|
High Light: | high definition cctv camera,dome cctv camera |
---|
Specifications:
Model |
BS-SPR670WD |
|
Filter |
Double Layers Crystal |
|
Sensor |
super hard CCD ‖ |
|
Signal |
PAL |
NTSC |
Pixels |
752(H)×596(V) 570K |
689(H)×496(V) 480K |
Line |
700TV |
|
Illumination |
0Lux / IR ON |
|
Lens |
Fixed 4mm lens, f=2.8-12mm/4-9mm/3.6-16mm optional |
|
IR LED |
36×Φ5mm black IR LEDs |
|
IR Distance |
30 Meter |
|
Vertical |
50Hz |
60Hz |
Horizontal |
15.625KHz |
15.734KHz |
Clock |
28.375MHz |
28.636MHz |
Scanning |
2:1 Interlace |
|
S.N.R |
≥50dB |
|
E.S |
1/50-1/100,000s |
1/60-1/100,000s |
W.B |
Auto Tracking |
|
B.L.C |
ON |
|
A.G.C |
ON |
|
Gamma |
0.45 |
|
Video Output |
1Vp-p, 75Ω |
|
IP Rating |
No |
|
Power |
DC/12V |
|
Volume Weight |
1kg |

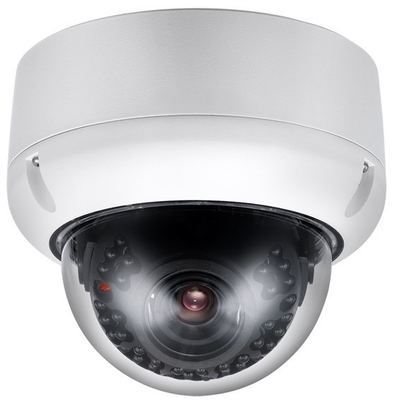

Description:
* SONY super hard CCD ‖,Effo 700tvl, high resolution
* 0.1 LUX /color illumination, 0 LUX IR ON
* 36×Φ5mm black IR LEDs, 30meters IR distance
* Metal Vandelproof casing, white shell

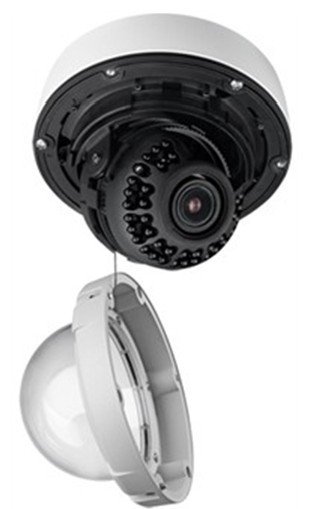

* specially designed Internal four-axis bracket
* F=4mm lens, f=2.8-12mm/4-9mm/3.6-16mm optional
* 12V power input
* Built-in OSD menu
